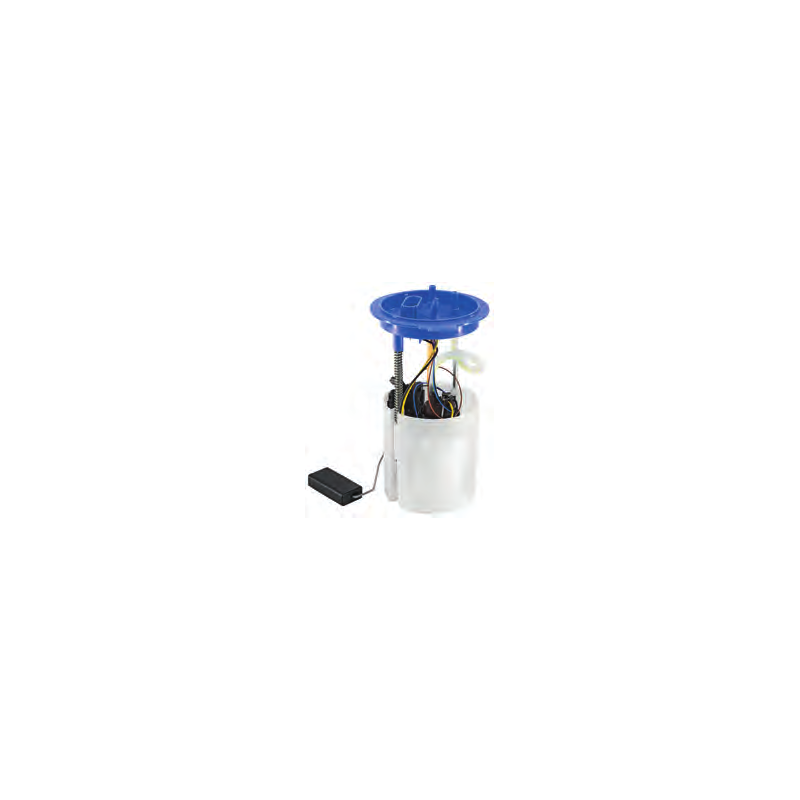

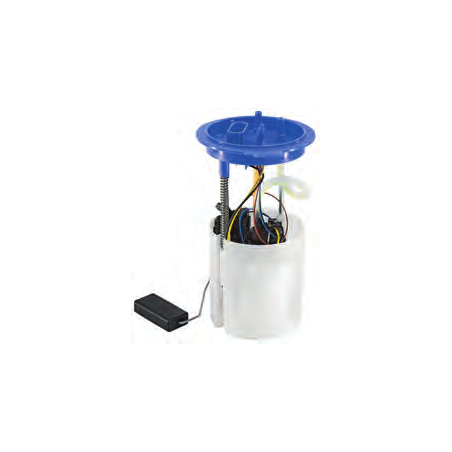

VDO A2C53438283Z Fuel supply unit - Audi - Seat - Skoda - Volkswagen
€98.92
(tax incl.)
€81.75 (VAT Excl.)
Part-number:
VDO 2803580112302
- Substitute for: A2C53438283Z
- Audi
- Seat
- Skoda
- Volkswagen
- For more information: see specifications
Logistical information:
- HS Code: 84133020
- Ean Code: 4103590770370
- Weight: 1.37kg
Specifications 2803580112302:
| VW OE Number | Reference info |
| 1K0 919 051 AQ | |
| 1K0919051AQ | |
| 1K0 919 051 BH | |
| 1K0919051BH | |
| 1K0 919 051 CL | |
| 1K0919051CL | |
| 1K0 919 051 DB | |
| 1K0919051DB |
| Model Audi | Model year | kW | HP | cc | Type |
| TT Roadster (8J9) 2.0 TFSI | 03.2007-06.2010 | 147 | 200 | 1984 | Convertible |
| A3 Sportback (8VA, 8VF) 1.8 TFSI Only in connection with: 1J0 919 133B | 09.2012-08.2016 | 132 | 180 | 1798 | Hatchback |
| A3 Sportback (8VA, 8VF) 1.4 TFSI Only in connection with: 1J0 919 133B | 03.2013-11.2014 | 103 | 140 | 1395 | Hatchback |
| A3 Sportback (8VA, 8VF) 1.4 TFSI Only in connection with: 1J0 919 133B | 09.2012-10.2020 | 90 | 122 | 1395 | Hatchback |
| A3 Sportback (8PA) 2.0 TFSI | 09.2004-03.2013 | 147 | 200 | 1984 | Hatchback |
| A3 Sportback (8PA) 2.0 FSI | 09.2004-06.2008 | 110 | 150 | 1984 | Hatchback |
| A3 Sportback (8PA) 1.8 TFSI | 11.2006-03.2013 | 118 | 160 | 1798 | Hatchback |
| A3 Sportback (8PA) 1.6 FSI | 09.2004-09.2007 | 85 | 115 | 1598 | Hatchback |
| A3 Sportback (8PA) 1.6 | 09.2004-03.2013 | 75 | 102 | 1595 | Hatchback |
| A3 Sportback (8PA) 1.4 TFSI | 09.2007-03.2013 | 92 | 125 | 1390 | Hatchback |
| A3 Sportback (8PA) 1.2 TSI Only in connection with: 1J0 919 133B | 04.2010-03.2013 | 77 | 105 | 1197 | Hatchback |
| A3 Convertible (8P7) 2.0 TFSI Only in connection with: VW No. 1J0 919 133B | 04.2008-05.2013 | 147 | 200 | 1984 | Convertible |
| A3 Convertible (8P7) 1.8 TFSI Only in connection with: 1J0 919 133B | 04.2008-05.2013 | 118 | 160 | 1798 | Convertible |
| A3 Convertible (8P7) 1.4 TFSI | 02.2011-05.2013 | 92 | 125 | 1390 | Convertible |
| A3 Convertible (8P7) 1.2 TFSI Only in connection with: 1J0 919 133B | 03.2010-05.2013 | 77 | 105 | 1197 | Convertible |
| A3 (8V1, 8VK) 1.8 TFSI Only in connection with: 1J0 919 133B | 04.2012-08.2016 | 132 | 180 | 1798 | Hatchback |
| A3 (8V1, 8VK) 1.4 TFSI Only in connection with: 1J0 919 133B | 03.2013-08.2016 | 103 | 140 | 1395 | Hatchback |
| A3 (8V1, 8VK) 1.4 TFSI Only in connection with: 1J0 919 133B | 04.2012-05.2014 | 90 | 122 | 1395 | Hatchback |
| A3 (8V1, 8VK) 1.2 TFSI Only in connection with: 1J0 919 133B | 02.2013-05.2015 | 77 | 105 | 1197 | Hatchback |
| A3 (8P1) 1.4 TFSI | 09.2007-08.2012 | 92 | 125 | 1390 | Hatchback |
| A1 Sportback (8XA, 8XF) 1.4 TFSI | 11.2011-04.2015 | 136 | 185 | 1390 | Hatchback |
| A1 Sportback (8XA, 8XF) 1.4 TFSI | 04.2012-04.2015 | 103 | 140 | 1395 | Hatchback |
| A1 Sportback (8XA, 8XF) 1.4 TFSI | 11.2011-04.2015 | 90 | 122 | 1390 | Hatchback |
| A1 Sportback (8XA, 8XF) 1.2 TFSI | 01.2012-04.2015 | 63 | 86 | 1197 | Hatchback |
| A1 (8X1, 8XK) 1.4 TFSI | 01.2011-04.2015 | 136 | 185 | 1390 | Hatchback |
| A1 (8X1, 8XK) 1.4 TFSI | 04.2012-04.2015 | 103 | 140 | 1395 | Hatchback |
| A1 (8X1, 8XK) 1.4 TFSI | 05.2010-04.2015 | 90 | 122 | 1390 | Hatchback |
| A1 (8X1, 8XK) 1.2 TFSI | 05.2010-04.2015 | 63 | 86 | 1197 | Hatchback |
| Model Seat | Model year | kW | HP | cc | Type |
| LEON (5F1) 1.8 TSI Chassis number (VIN) from: 1P-D-000 001 | 02.2013-08.2018 | 132 | 180 | 1798 | Hatchback |
| LEON (5F1) 1.4 TSI | 09.2012-08.2020 | 103 | 140 | 1395 | Hatchback |
| LEON (5F1) 1.4 TSI | 11.2012-10.2016 | 90 | 122 | 1395 | Hatchback |
| LEON (5F1) 1.2 TSI | 01.2013-08.2020 | 77 | 105 | 1197 | Hatchback |
| LEON (5F1) 1.2 TSI | 12.2012-08.2018 | 63 | 86 | 1197 | Hatchback |
| LEON (1P1) 2.0 TFSI | 11.2006-05.2011 | 177 | 240 | 1984 | Hatchback |
| LEON (1P1) 2.0 TFSI | 06.2009-12.2012 | 155 | 211 | 1984 | Hatchback |
| LEON (1P1) 2.0 TFSI | 05.2005-03.2009 | 147 | 200 | 1984 | Hatchback |
| LEON (1P1) 2.0 TFSI | 09.2005-05.2006 | 136 | 185 | 1984 | Hatchback |
| LEON (1P1) 2.0 FSI | 07.2005-05.2010 | 110 | 150 | 1984 | Hatchback |
| LEON (1P1) 1.8 TSI | 06.2007-12.2012 | 118 | 160 | 1798 | Hatchback |
| LEON (1P1) 1.4 TSI | 11.2007-12.2012 | 92 | 125 | 1390 | Hatchback |
| LEON (1P1) 1.2 TSI | 02.2010-12.2012 | 77 | 105 | 1197 | Hatchback |
| ALTEA XL (5P5, 5P8) 1.2 TSI | 04.2010-07.2015 | 77 | 105 | 1197 | MPV |
| ALTEA (5P1) 1.2 TSI | 04.2010-07.2015 | 77 | 105 | 1197 | MPV |
| Model Skoda | Model year | kW | HP | cc | Type |
| YETI (5L) 1.4 TSI | 06.2010-05.2015 | 90 | 120 | 1390 | SUV |
| YETI (5L) 1.2 TSI | 09.2009-05.2015 | 77 | 105 | 1197 | SUV |
| OCTAVIA III Combi (5E5, 5E6) 1.8 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2012-10.2020 | 132 | 180 | 1798 | Estate |
| OCTAVIA III Combi (5E5, 5E6) 1.4 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2012-02.2017 | 103 | 140 | 1395 | Estate |
| OCTAVIA III Combi (5E5, 5E6) 1.2 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2012-02.2017 | 77 | 105 | 1197 | Estate |
| OCTAVIA III Combi (5E5, 5E6) 1.2 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2012-02.2017 | 63 | 86 | 1197 | Estate |
| OCTAVIA II Combi (1Z5) 2.0 FSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2004-10.2008 | 110 | 150 | 1984 | Estate |
| OCTAVIA II Combi (1Z5) 1.8 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 06.2007-04.2013 | 118 | 160 | 1798 | Estate |
| OCTAVIA II Combi (1Z5) 1.8 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 03.2009-06.2013 | 112 | 152 | 1798 | Estate |
| OCTAVIA II Combi (1Z5) 1.6 FSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 02.2004-10.2008 | 85 | 115 | 1598 | Estate |
| OCTAVIA II Combi (1Z5) 1.4 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 11.2008-06.2013 | 90 | 122 | 1390 | Estate |
| OCTAVIA II Combi (1Z5) 1.2 TSI Chassis number (VIN) from: 1Z-4-000 001, until 1Z-D-000 001 | 02.2010-04.2013 | 77 | 105 | 1197 | Estate |
| Model VW (Volkswagen) | Model year | kW | HP | cc | Type |
| TOURAN (1T3) 1.4 TSI EcoFuel | 05.2010-05.2015 | 110 | 150 | 1390 | MPV |
| TOURAN (1T3) 1.4 TSI | 05.2010-05.2015 | 103 | 140 | 1390 | MPV |
| TOURAN (1T3) 1.4 TSI | 05.2010-05.2015 | 125 | 170 | 1390 | MPV |
| TOURAN (1T3) 1.2 TSI | 05.2010-05.2015 | 77 | 105 | 1197 | MPV |
| SCIROCCO III (137, 138) 2.0 TSI | 11.2009-11.2017 | 155 | 210 | 1984 | Coupe |
| SCIROCCO III (137, 138) 2.0 TFSI | 05.2008-11.2009 | 147 | 200 | 1984 | Coupe |
| SCIROCCO III (137, 138) 1.4 TSI | 05.2008-11.2017 | 118 | 160 | 1390 | Coupe |
| SCIROCCO III (137, 138) 1.4 TSI | 08.2008-11.2017 | 90 | 122 | 1390 | Coupe |
| PASSAT B7 Variant (365) 2.0 TSI Year built from: 01.2011 Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 11.2010-12.2015 | 155 | 210 | 1984 | Estate |
| PASSAT B7 Variant (365) 1.8 TSI Built from: 01.2011 Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 08.2010-12.2014 | 118 | 160 | 1798 | Estate |
| PASSAT B7 Variant (365) 1.8 TSI Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 02.2011-12.2014 | 112 | 152 | 1798 | Estate |
| PASSAT B7 Variant (365) 1.4 TSI MultiFuel built from: 01.2011 Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 11.2010-12.2014 | 118 | 160 | 1390 | Estate |
| PASSAT B7 Variant (365) 1.4 TSI EcoFuel built from: 01.2011 Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 08.2010-12.2014 | 110 | 150 | 1390 | Estate |
| PASSAT B7 Variant (365) 1.4 TSI Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 11.2012-12.2014 | 118 | 160 | 1390 | Estate |
| PASSAT B7 Variant (365) 1.4 TSI Year built from: 01.2011 Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 08.2010-12.2014 | 90 | 122 | 1390 | Estate |
| PASSAT ALLTRACK B7 Variant (365) 1.8 TSI Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 01.2012-12.2014 | 118 | 160 | 1798 | Estate |
| PASSAT ALLTRACK B7 Variant (365) 1.8 TSI Chassis number (VIN) from: 3C-B-200 001, to 3C-D-000 001 | 01.2012-12.2014 | 112 | 152 | 1798 | Estate |
| GOLF VII Variant (BA5, BV5) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 05.2013-03.2017 | 90 | 122 | 1395 | Estate |
| GOLF VII Variant (BA5, BV5) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 04.2013-08.2020 | 77 | 105 | 1197 | Estate |
| GOLF VII Variant (BA5, BV5) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 05.2013-03.2017 | 63 | 86 | 1197 | Estate |
| GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI MultiFuel Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 11.2012-03.2017 | 90 | 122 | 1395 | Hatchback |
| GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 08.2012-07.2017 | 103 | 140 | 1395 | Hatchback |
| GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 11.2012-03.2017 | 90 | 122 | 1395 | Hatchback |
| GOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 11.2012-03.2017 | 77 | 105 | 1197 | Hatchback |
| GOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 08.2012-03.2017 | 63 | 86 | 1197 | Hatchback |
| GOLF VI Variant (AJ5) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 07.2009-07.2013 | 118 | 160 | 1390 | Estate |
| GOLF VI Variant (AJ5) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 07.2009-07.2013 | 90 | 122 | 1390 | Estate |
| GOLF VI Variant (AJ5) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 07.2009-07.2013 | 77 | 105 | 1197 | Estate |
| GOLF VI Variant (AJ5) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 07.2010-07.2013 | 63 | 86 | 1197 | Estate |
| GOLF VI Convertible (517) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 03.2011-05.2016 | 118 | 160 | 1390 | Convertible |
| GOLF VI Convertible (517) 1.4 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 11.2011-05.2016 | 90 | 122 | 1390 | Convertible |
| GOLF VI Convertible (517) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 03.2011-05.2016 | 77 | 105 | 1197 | Convertible |
| GOLF VI (5K1) 2.0 GTi Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 05.2011-11.2012 | 173 | 235 | 1984 | Hatchback |
| GOLF VI (5K1) 2.0 GTi Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 04.2009-11.2012 | 155 | 210 | 1984 | Hatchback |
| GOLF VI (5K1) 2.0 GTi Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 06.2009-11.2013 | 147 | 200 | 1984 | Hatchback |
| GOLF VI (5K1) 1.8 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 06.2009-01.2011 | 118 | 160 | 1798 | Hatchback |
| GOLF VI (5K1) 1.4 TSI built from: 01.2009 Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 10.2008-11.2012 | 118 | 160 | 1390 | Hatchback |
| GOLF VI (5K1) 1.4 TSI built from: 01.2009 Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 10.2008-11.2012 | 90 | 122 | 1390 | Hatchback |
| GOLF VI (5K1) 1.2 TSI built from: 01.2009 Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 11.2008-11.2012 | 77 | 105 | 1197 | Hatchback |
| GOLF VI (5K1) 1.2 TSI Chassis number (VIN) from: 1K-9-400-001, to 1K-D-000-001 | 05.2010-11.2012 | 63 | 86 | 1197 | Hatchback |
| GOLF PLUS V (5M1, 521) 1.2 TSI Built from: 01.2012 | 11.2009-12.2013 | 77 | 105 | 1197 | Hatchback |
| GOLF PLUS V (5M1, 521) 1.2 TSI Built from: 01.2012 | 05.2010-12.2013 | 63 | 86 | 1197 | Hatchback |
| EOS (1F7, 1F8) 3.6 V6 Chassis number (VIN) from: 1F-B-006 376, to 1F-B-006 377 | 05.2009-11.2010 | 191 | 260 | 3597 | Convertible |
| EOS (1F7, 1F8) 2.0 TSI Year built from: 01.2011 Chassis number (VIN) from: 1F-B-006 376, to 1F-B-006 377 | 11.2009-08.2015 | 155 | 210 | 1984 | Convertible |
| EOS (1F7, 1F8) 1.4 TSI Year built from: 01.2011 Chassis number (VIN) from: 1F-B-006 376, to 1F-B-006 377 | 05.2008-08.2015 | 118 | 160 | 1390 | Convertible |
| BEETLE Convertible (5C7, 5C8) 2.0 TFSI | 12.2011-07.2016 | 147 | 200 | 1984 | Convertible |
| BEETLE Convertible (5C7, 5C8) 1.4 TSI | 12.2011-07.2016 | 118 | 160 | 1390 | Convertible |
| BEETLE Convertible (5C7, 5C8) 1.2 TSI | 12.2011-07.2019 | 77 | 105 | 1197 | Convertible |
| BEETLE (5C1, 5C2) 2.5 | 04.2011-07.2019 | 125 | 170 | 2480 | Hatchback |
| BEETLE (5C1, 5C2) 2.0 TFSI | 04.2011-07.2016 | 147 | 200 | 1984 | Hatchback |
| BEETLE (5C1, 5C2) 1.4 TSI | 10.2011-07.2016 | 118 | 160 | 1390 | Hatchback |
| BEETLE (5C1, 5C2) 1.2 TSI | 07.2011-07.2019 | 77 | 105 | 1197 | Hatchback |
2803580112302
Data sheet
- Predecessor
- 228-235-070-002Z
- Supply voltage
- 12 V
- OEM
- 1K0 919 051 AQ
1K0 919 051 BH
1K0 919 051 CL
1K0 919 051 DB - Engine
- 1T3 1.4 EcoFuel TSI (05/10-05/15)
- Country of origin
- China
- Functionality
- Fuel level and pump
- Fuel Pressure
- (4 Bar-...)
- Fuel
- Petrol (V61)
- Article status
- Available to order
Specific References
- EAN13
- 4103590770370
- MPN
- 2803580112302
