VDO Liquid Level Switch Linear Type Diesel 145mm
Part-number:
VDO 395-462-001-004G
- Liquid level switch Diesel
- Inner length: 145 mm
- Contact level 120 mm
Logistical information:
- HS Code: 90269000
- Ean Code: 4103590691811
- Weight: 0.08kg
Technical description Liquid Level Switch:
VDO 395 462 001 004G Specifications:

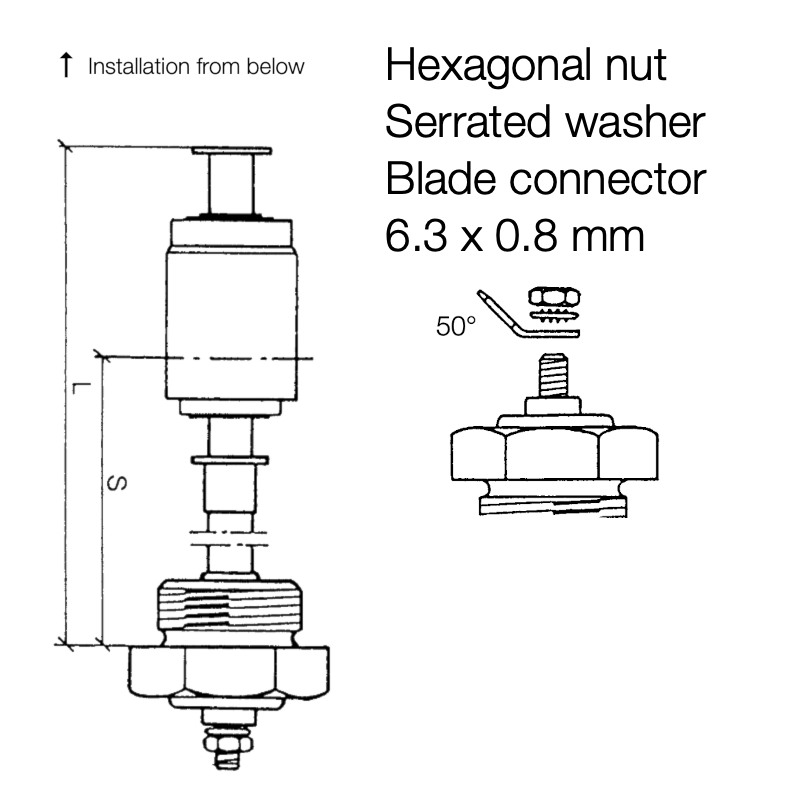

Mechanical properties:
| Installation Length (L): | 145mm ± 1.5mm |
| Contact level(S): | 120 mm ± 3.0 mm |
| Assembly | M22 x 1.5 |
| Operating Temperature: | -30 °C to +100 °C |
| Liquid: | Diesel |
Electrical properties:
| Supply voltage: | 24 V DC |
| Warning contact: | Max 3W |
| Liquid level switch output signal: | 1-pole min to ground |
| Warning contact: | None |
Retail packaging:
- VDO 395 462 001 004G Standard liquid level switch
- VDO Sensors are - unless otherwise stated - supplied without connection material
395-462-001-004G
Data sheet
- Supply voltage
- 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor OEM bulk packaging
- Application
- VDO Level measurement
- Signal analog
- Contact closes at limit value
- Sensor signal
- Minus in mass
- Country of origin
- Germany
- Connector type
- M4 Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Article status
- Expired product
- Sensor element length
- 145mm
- Shift level
- 120mm
Specific References
- EAN13
- 4103590691811
- MPN
- 395-462-001-004G
VDO 395-462-001-004G
- Liquid level switch Diesel
- Inner length: 145 mm
- Contact level 120 mm
