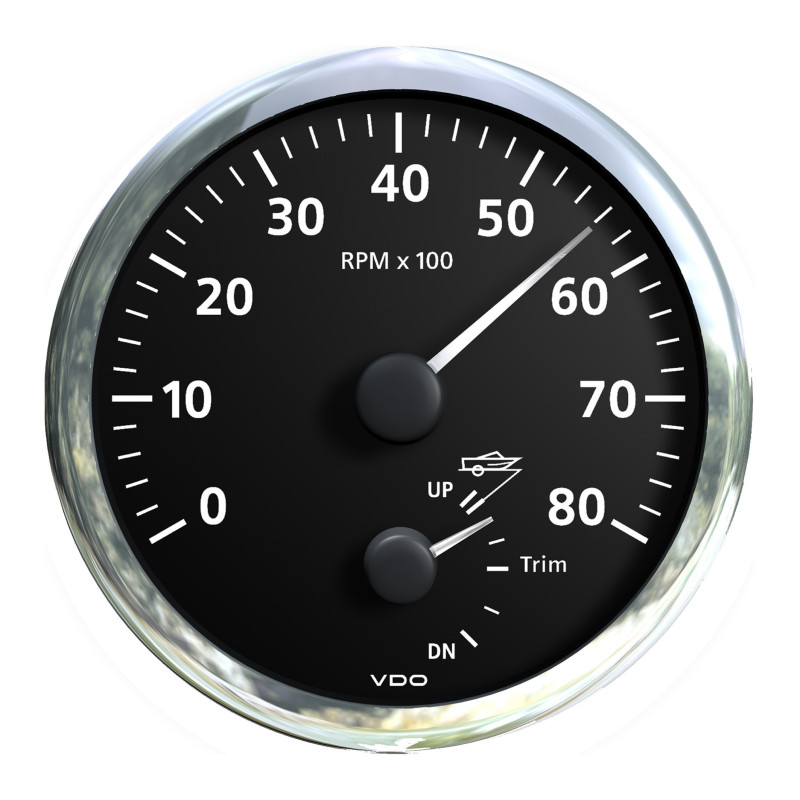

Veratron ViewLine Combi Rpm and Trim Black 110mm
Part-number:
Veratron A2C59514263
- Color: Black
- Panel hole diameter: 110 mm - 4 3/8"
- Measuring range: 0 - 8,000 RPM & Trim
- Front: Double glazing - Anti-fog
- Retail packaging 1 Combi 2 in 1 instrument
Logistical information:
- HS Code: 90148000
- Weight: 0.50kg
Functional description ViewLine Combi 2 in 1 Tachometer - Trim Meter:
Veratron ViewLine A2C59514263 Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 110 mm - 4 3/8 Inch and 126 mm - 5 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Rpm measuring range: | 0 to 8,000 RPM |
| Measuring range trim position: | Up - Down |
| Tachometer input signal: | Alternator connection: W Ignition connection: 1 Outboard Motor: Ignition Coil |
| Trimmeter input signal: | 167 - 10 Ohm |
| Measurement accuracy: | < 3.6° of the full scale |
| Connection: | Hirschmann 8 & 14 pin MQS connector |
Power supply:
| Supply voltage: | 10 to 16 Volt DC |
| Power consumption: | < 175 mA including warning LEDs |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | Speed 240° - Trim 90° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Triangle chrome (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +70°C (Front ring chrome) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59514263 Combi 2 in 1 Tachometer - Trimmeter
- Cables with Hirschmann connector 8 & 14-pin
- Front ring triangle chrome (Interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron sensors
A2C59514263
Data sheet
- Speed Measuring range
- 0 - 8,000 RPM
- Warning indication
- Red LED 2X
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Tacho impulse signal
- Series
- Veratron ViewLine Retail
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 110 mm - 4 3/8 Inch
- Functionality
- Combi 2 in 1 rpm trim
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Chrome triangle
- Communication
- Analogue
- Category
- Combi 2 in 1 Instruments
- Article status
- Discontinued product
Specific References
- MPN
- A2C59514263
Veratron A2C59514263
- Color: Black
- Panel hole diameter: 110 mm - 4 3/8"
- Measuring range: 0 - 8,000 RPM & Trim
- Front: Double glazing - Anti-fog
- Retail packaging 1 Combi 2 in 1 instrument
