  • B00005303 Veratron ViewLine Hour Meter and Voltmeter Black 52mm

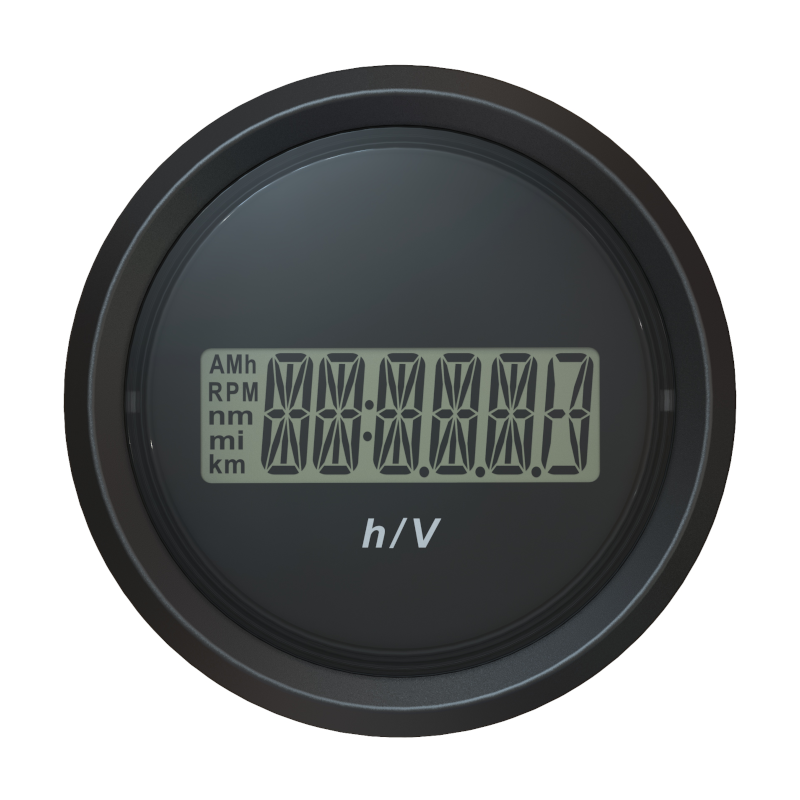

Veratron ViewLine Hour Meter and Voltmeter Black 52mm

€68.95 (tax incl.)

€56.98 (VAT Excl.)

Part-number:

Veratron B00005303

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring Range: 99999.9 hours
  • Front: Double glazing - Anti-fog
  • Retail packaging 1 Hour meter
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90291010
  • Ean Code: 7640178729278
  • Weight: 0.45kg
Quantity

Functional description ViewLine Voltmeter - Counter operating hours:

Veratron ViewLine B00005302 Specifications:

Dimensions and assembly B00005302:

Diameters: - Built-in - Outside - Flushmount: 52mm-2 1/16 Inch : 59.25mm-2 1/3 Inch : 48.1mm
Installation depth with connector Standard 65mm - Flushmount 65mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm - Optional kit A2C59510854
Panel thickness Flushmount: 1.5mm - 3mm - Optional kit A2C59510864

Functionality B00005302:

Combi operating hours and voltage: Operating hours: 99999.9 hours - 8 - 48V DC
Primary display scale measurement range: Operating hours: 99999.9 hours
Secondary display scale measurement range: Battery voltage: 8 - 48V DC
Input signal ViewLine B00005302 Voltmeter - Counter operating hours: Plus ignition switch (Ignition)
Measurement system: NNB
Programming: Feature unavailable
Alarm LED - Alarm output: None
Measurement accuracy B00006302: NNB
Connector(s): Hirschmann 8 pin MQS connector

Nutrition B00005302:

Supply voltage: 9 - 48 Volts DC
Power consumption: NNB
Reverse polarity protection: Up to 5 minutes
Short-circuit resistance: Maximum 1 minute

Display B00006302:

Graduation: Not applicable
Scale color: Black version
Scale lighting: Amber LED backlight 605nm
Display: NNB

Execution B00005302:

Model: Veratron ViewLine Marine
Front glass type - Material: Double - PMMA - Anti-fog - Anti-glare
Front ring - Material - Color - Profile: PC - Black front ring triangle clip-on - 9 Models optional
Housing material: PC - Fire Retardant - UL94

Classification and certification B00005302:

Front protection class: IP67 according to IEC 60529 - In normal position
Back protection class: IP52 according to IEC 60529 - In normal position
Relative humidity: Maximum 95%
Operating Temperature: With standard PC Front Ring: -30°C to +80°C
With chrome ABS front ring: -30°C to +70°C
CE Certification - ISO Production Certification: Yes - NNB
REACH - RoHS - Lead-Free: In accordance with 2002/95/EU Directive
Vibration resistance: Sinus 2G - 10-500Hz - Duration 16 hours
Noise 3G - 10-1000Hz - Duration 8 hours
Mechanical shock resistance: Continuous: 25g - 6ms - 1Hz
Single shock - 100g - 11ms
Free fall: 1m - 3 times
EMC compliance according to: DIN_EN 61000-6-1
DIN_EN 61000-6-2
DIN_EN 61000-6-3
DIN_EN 61000-6-4
Chemical restent against: Preservative
Preservative remover
Engine cleaner
Methylated spirits
Interior cleaner
Beverages containing caffeine and tannin

Package contents B00005302:

  • Veratron Marine ViewLine Retail B00005302 Operating Hours Meter and Voltmeter
  • Rubber gasket
  • Central spinlock nut 52mm
  • Front ring triangle black - Optional chrome
  • QR code
  • Safety and Installation Instructions
  • Connection cable is included
  • Veratron instruments are supplied without sensors
Veratron VDO
B00005303

Data sheet

Measuring range
0 - 99999.9 H
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Plus ignition switch Ignition
Series
Veratron ViewLine Retail
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
Service intervals
Front ring interchangeable
Yes - Clip-on
Front ring model
Black triangle
Communication
Analogue
Category
Engine Hours counters
Article status
Available to order

Specific References

EAN13
7640178729278
MPN
B00005303
