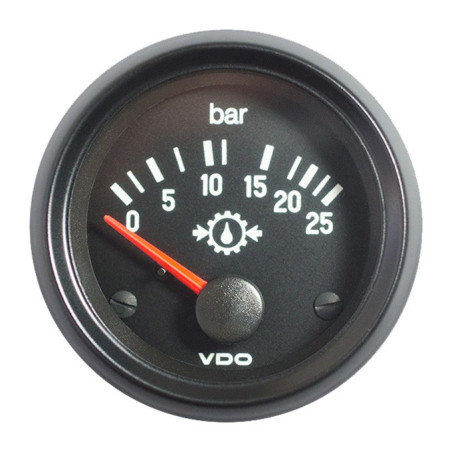

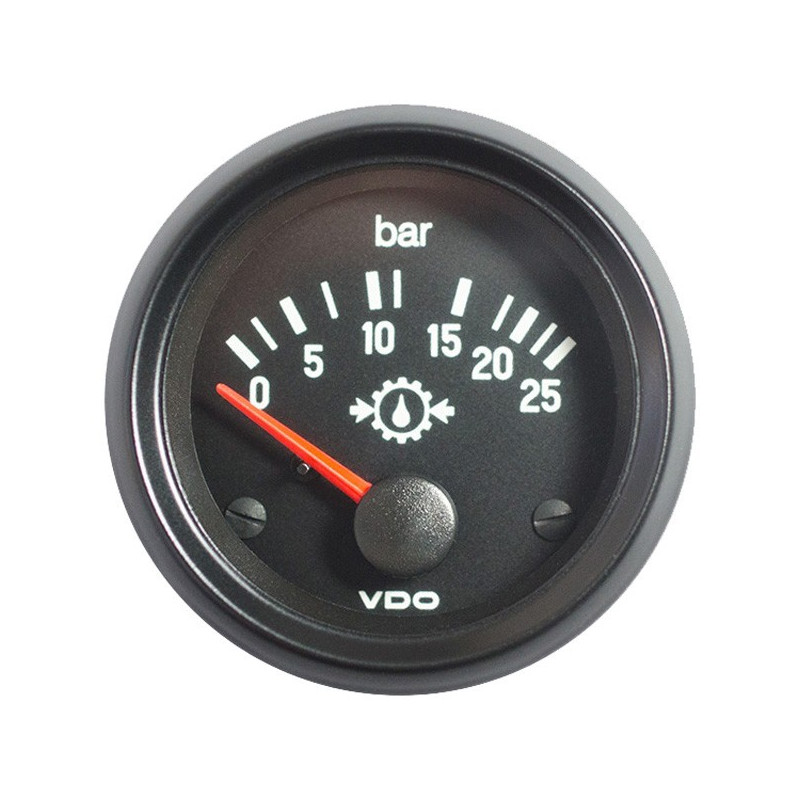

10 Pieces VDO Cockpit International Transmission oil pressure 25Bar 52mm 12V
Part-number:
VDO 350-030-005C
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 0 to 25 Bar
- Supply voltage: 12 Volts DC
- 10 Pieces OEM Pressure Gauges
Logistical information:
- Weight: 0.50kg
Functional description Cockpit International Pressure Gauge:
VDO Cockpit International 350 030 005C Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Panel thickness with spinlock nut: | Not available |
| Panel thickness with bracket mounting: | 0.5 mm - 8 mm |
| Flushmount mounting: | None |
Functional:
| Transmission oil pressure measuring range: | 0 to 25 Bar |
| Input signal transmission oil pressure gauge: | VDO Pressure sensor 10 to 184 Ohm |
| Measurement accuracy: | No statement VDO available |
| Connection: | Flat plug 6.3 x 0.8mm (3x) |
| Connection scale lighting: | Flat plug 6.3 x 0.8mm (2x) |
Power supply:
| Supply voltage: | 11 - 16 Volt DC |
| Power consumption without shell lighting: | 82 mA |
| Reverse polarity protection: | Yes |
| Short-circuit resistance: | No VDO |
Scale & pointer:
| Graduation: | 90° |
| Scale color: | Black |
| Scale lighting: | Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Alarm indication: | None |
| Programmable: | No |
Version:
| Model: | Cockpit International |
| Front glass type: | Single - Anti-Glare |
| Standard front ring: | Triangle black (Screw ring) |
Degree of protection and certification:
| Front protection class: | IP64 (DIN 40050) - Ozone resistant - UV resistant |
| Back protection class | IP42 (DIN 40050) |
| Relative humidity: | No statement VDO available |
| Operating Temperature: | -30°C to +85°C |
| CE Certification: | Yes |
| DNV GL Certification: | No Statement VDO Available |
| Vibration test 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC Test: | According to EN 13309 and ISO 13677 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic Fire Retardant |
OEM (10 pcs) packing:
- VDO Cockpit International 350 030 005C Pressure Gauge
- Order connection material separately
- Chrome-plated mounting bracket
350-030-005C
Data sheet
- Pressure Measurement Range
- 0 - 25 Bar
- Warning indication
- None
- Supply voltage
- 11 - 16 Volt DC
- Packaging
- VDO Instruments OEM bulk
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Series
- VDO Cockpit International
- Lens
- Plastic single anti-reflective
- Color
- Black
- IP Class front
- IP64 (DIN 40050)
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Transmission oil pressure
- Front ring interchangeable
- Yes - Special tools required
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Pressure gauges
- Article status
- Discontinued product
Specific References
- MPN
- 350-030-005C
