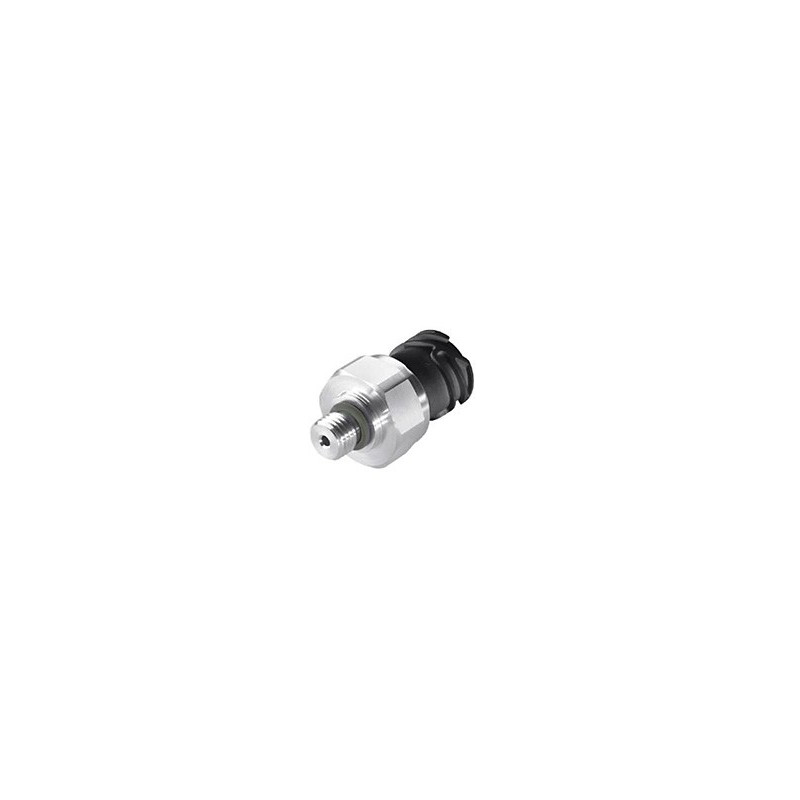

VDO EPS Pressure Sensor 10 Bar – M12
Part-number:
VDO 365-100-010-121C
- Pressure measurement range: 0 - 10 Bar
- Thread: M12 x 1.5
- Output voltage: 0.5 - 4.5 V
- Output: Isolated from ground
- No warning contact
Logistical information:
- Weight: 0.50kg
Technical description electronic EPS pressure sensor:
VDO 365 100 010 121C Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar for 2 seconds |
| Thread: | M12 x 1.5 |
| Thread + nut length (L1): | 28 mm |
| Thread length (L2): | 11 mm |
| Torque: | 40 Nm |
| Operating Temperature: | -40 °C to +125 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 18 - 32 V DC |
| Output signal: | 0.5 - 4.5 V |
| Pressure sensor output signal: | 2-pole insulated from ground |
| Warning contact: | None |
| Pressure sensor connection: | Bayonet ISO15170 |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 163 |
| Type of connection: | Model: EPS |
| VDO En Du Pressure Sensors Tables: | No VDO |
| VDO Pressure sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 365 100 010 121C Pressure Sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
365-100-010-121C
Data sheet
- Pressure Measurement Range
- 0 - 10 Bar
- Warning contact
- None
- Supply voltage
- 18 - 32 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 0.5 - 4.5 V
- Application
- VDO Engine control
- Signal analog
- 0.5 - 4.5 Volts
- Sensor signal
- Isolated from mass
- Sensor connector
- Bayonet ISO15170
- Thread
- M12 x 1.5 Male
- Functionality
- Engine oil pressure
- Connector type
- Bayonet ISO15170
- Communication
- Analogue
- Category
- Pressure sensors electronic
- Article status
- Expired product
- Alternate format
- 365 100 010 121
365/100/10/121
Specific References
- MPN
- 365-100-010-121
