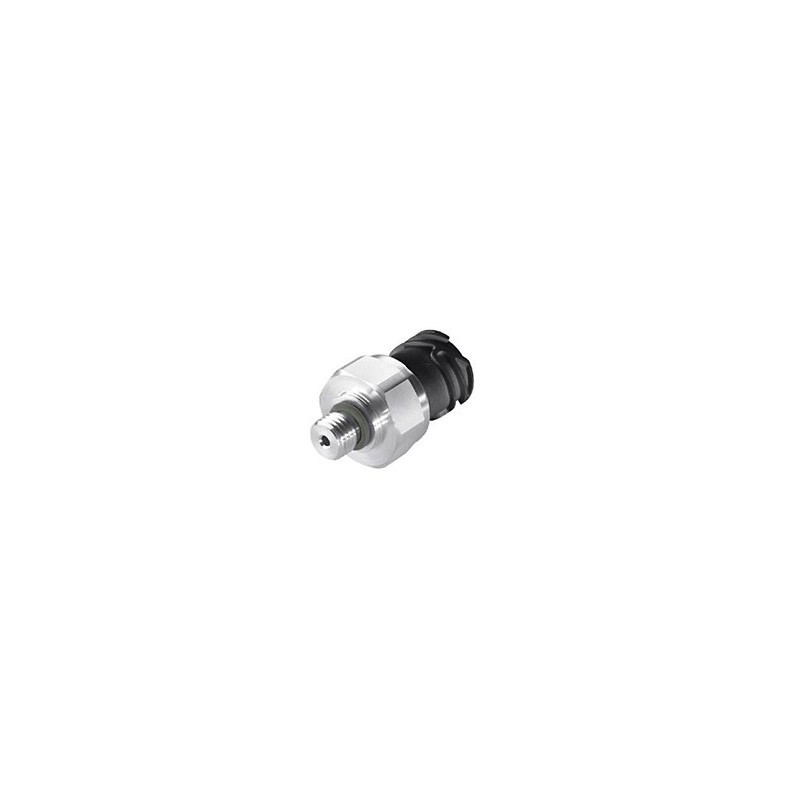

365-100-016-121K VDO EPS Pressure Sensor 16 Bar – M12
search
  • 365-100-016-121K VDO EPS Pressure Sensor 16 Bar – M12
  • 365-100-016-121K VDO EPS Pressure Sensor 16 Bar – M12

VDO EPS Pressure Sensor 16 Bar – M12

€111.51 (tax incl.)

€92.16 (VAT Excl.)

Part-number:

VDO 365-100-016-121K

  • Pressure measuring range: 0 - 16 Bar
  • Thread: M12 x 1.5
  • Output voltage: 0.5 - 4.5 V
  • Output: Isolated from ground
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590691743
  • Weight: 0.04kg
Quantity

Technical description electronic EPS pressure sensor:

VDO 365 100 016 121K Specifications:

Mechanical properties:

Pressure measurement range: 0 - 16 Bar
0 - 232 PSI
0 - 1600 KPa
Maximum pressure: 40 Bar for 2 seconds
Thread: M12 x 1.5
Thread + nut length (L1): 28 mm
Thread length (L2): 11 mm
Torque: 40 Nm
Operating Temperature: -40 °C to +125 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 18 - 32 V DC
Output signal: 0.5 - 4.5 V
Pressure sensor output signal: 2-pole insulated from ground
Warning contact: None
Pressure sensor connection: Bayonet ISO15170

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 163
Type of connection: Model: EPS
VDO En Du Pressure Sensors Tables: No VDO
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

OEM (10 pcs) packing:

  • VDO 365 100 016 121K Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
365-100-016-121K

Data sheet

Pressure Measurement Range
0 - 16 Bar
Warning contact
None
Supply voltage
18 - 32 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
0.5 - 4.5 Volts
Sensor signal
Isolated from mass
Thread
M12 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
Bayonet ISO15170
Communication
Analogue
Category
Pressure sensors electronic
Article status
Expired product
Alternate format
365 100 016 121K
365/100/16/121K

Specific References

EAN13
4103590691743
MPN
365-100-016-121K
