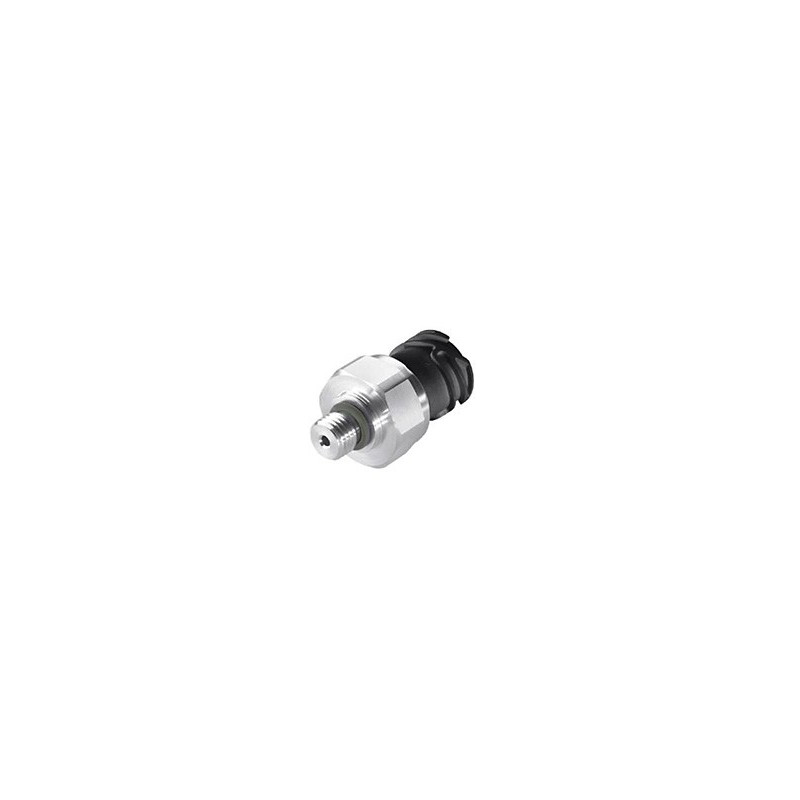

363-801-006-002C VDO EPS Pressure Sensor 20 Bar – M10
search
  • 363-801-006-002C VDO EPS Pressure Sensor 20 Bar – M10

VDO EPS Pressure Sensor 20 Bar – M10

Part-number:

VDO 363-801-006-002C

  • Pressure measuring range: 0 - 20 Bar
  • Thread: M10 x 1
  • Output voltage: 0.25 - 4.75 V
  • Output: Isolated from ground
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description electronic EPS pressure sensor:

VDO 363 801 006 002C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 20 Bar
0 - 290 PSI
0 - 2000 KPa
Maximum pressure: 40 Bar for 2 seconds
Thread: M10 x 1
Thread + nut length (L1): 17 mm
Thread length (L2): 10 mm
Torque: 40 Nm
Operating Temperature: -40 °C to +125 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 18 - 32 V DC
Output signal: 0.25 - 4.75 V
Pressure sensor output signal: 2-pole insulated from ground
Warning contact: None
Pressure sensor connection: Bayonet ISO15170

Datasheets and tables:

2009 VDO DE Katalog Page 125
Type of connection: Model: EPS
VDO En Du Pressure Sensors Tables: No VDO
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 363 801 006 002C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
363-801-006-002C

Data sheet

Pressure Measurement Range
0 - 20 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
0.25 - 4.75 V
Sensor signal
Isolated from mass
Thread
M10 x 1 Male
Functionality
Transmission oil pressure
Connector type
Bayonet ISO15170
Communication
Analogue
Category
Pressure sensors electronic
Article status
Expired product
Alternate format
363 801 006 002C
363/801/6/2C

Specific References

MPN
363-801-006-002C
