VDO Pressure transmitter 0-5 Bar - M12

€78.71 (tax incl.)

€65.05 (VAT Excl.)

Part-number:
VDO 360-081-029-085C
  • Pressure measuring range: 0 - 5 Bar
  • Thread: M12 x 1.5
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • No warning contact
  • 360.002 - 80 PSI
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590690814
  • Weight: 0.12kg
Quantity

Technical description engine oil pressure sensor:

VDO 360 081 029 085C Specifications:

Mechanical properties:

Pressure measurement range:0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure:30 Bar for 2 seconds

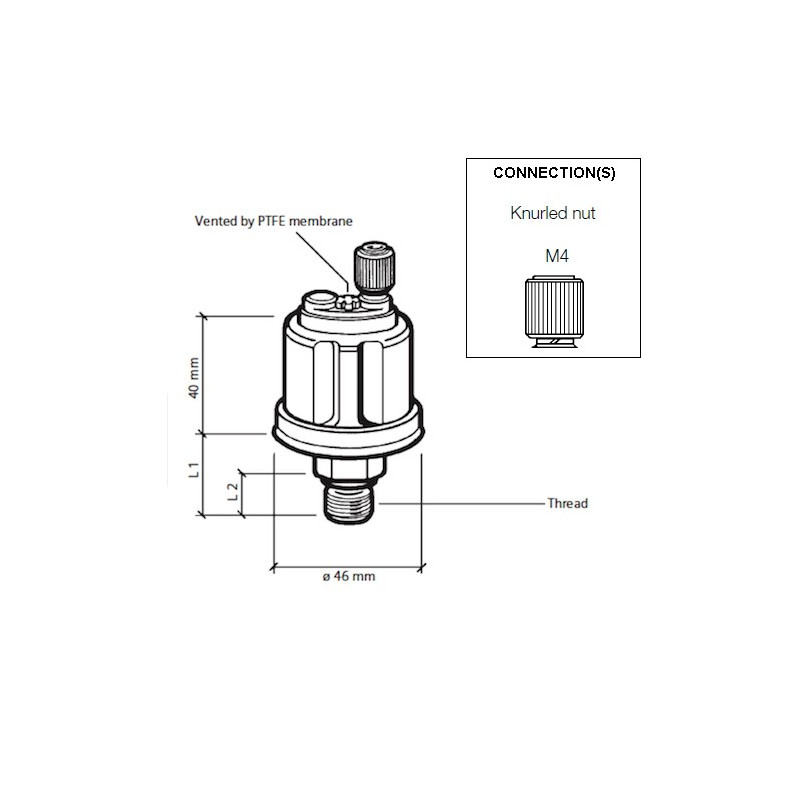

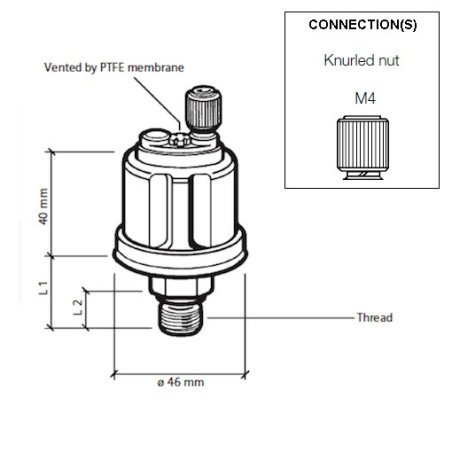

Thread:M12 x 1.5
Thread + nut length (L1):20.5 mm
Thread length (L2):12 mm
Torque:40 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:1-pole min to ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection:M4 Plastic knurled nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 121 - 122
Type of connection:Model: A
VDO En Du Pressure Sensors Tables:VDO Datasheet Table 3
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 029 085C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
360-081-029-085C

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
M12 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 029 085C
360/81/29/85C

Specific References

EAN13
4103590690814
MPN
360-081-029-085C
