VDO Pressure transmitter 0-25 Bar - M10

€92.31 (tax incl.)

€76.29 (VAT Excl.)

Part-number:

VDO 360-081-037-008C

  • Pressure measuring range: 0 - 25 Bar
  • Thread: M10 x 1 Conical short
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590691309
  • Weight: 0.11kg
Quantity

Technical description transmission oil pressure sensor:

VDO 360 081 037 008C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 25 Bar
0 - 362 PSI
0 - 2500 KPa
Maximum pressure: 50 Bar for 2 seconds

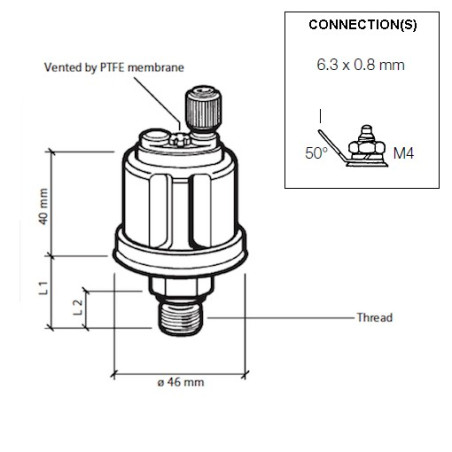

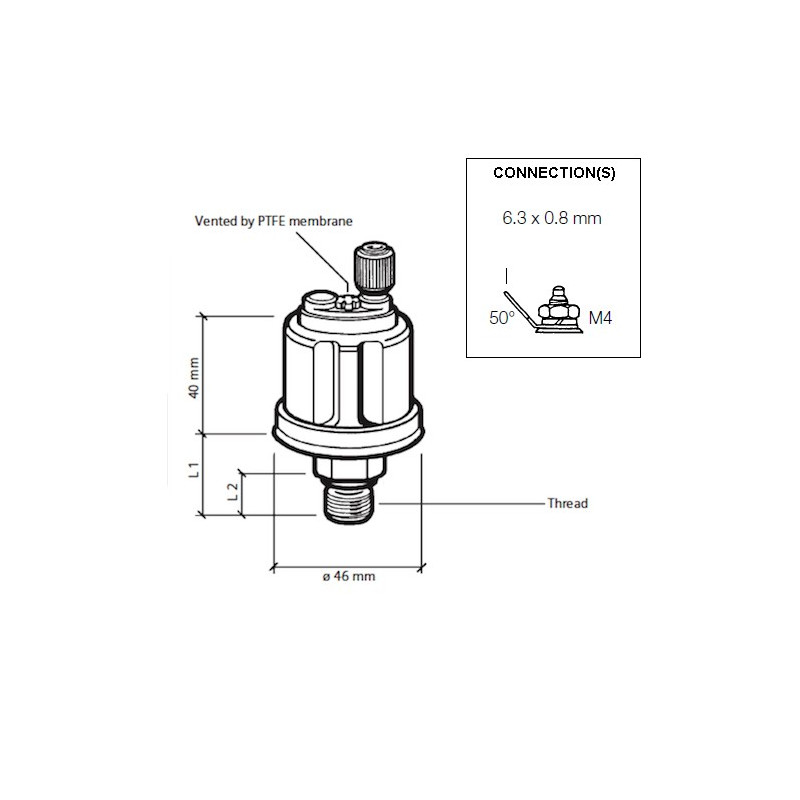

Thread: M10 x 1 Tapered short
Thread + nut length (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 10 - 184 Ohms
Pressure sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection: M4 with flat plug 6.3 x 0.8 mm 50°

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 121 - 122
Type of connection: Model: C
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 6
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 037 008C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
360-081-037-008C

Data sheet

Pressure Measurement Range
0 - 25 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Flat plug 6.3 x 0.8 mm
Thread
M10 x 1 Male conical short
Country of origin
Germany
Functionality
Transmission oil pressure
Connector type
M4 Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 037 008C
360/81/37/8C

Specific References

EAN13
4103590691309
MPN
360-081-037-008C
