VDO Pressure transmitter 0-5 Bar - M14

Part-number:

VDO 360-081-032-060C

  • Pressure range: 0 to 5 Bar
  • Thread: M14 x 1.5
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 2-pole insulated return
  • No warning contact
  • Replaced by: 2801126182351
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590691255
  • Weight: 0.12kg
Discontinued article
Replacement article on request

Description engine oil pressure sender:

VDO 360 081 032 060C Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure: 30 Bar during 2 seconds

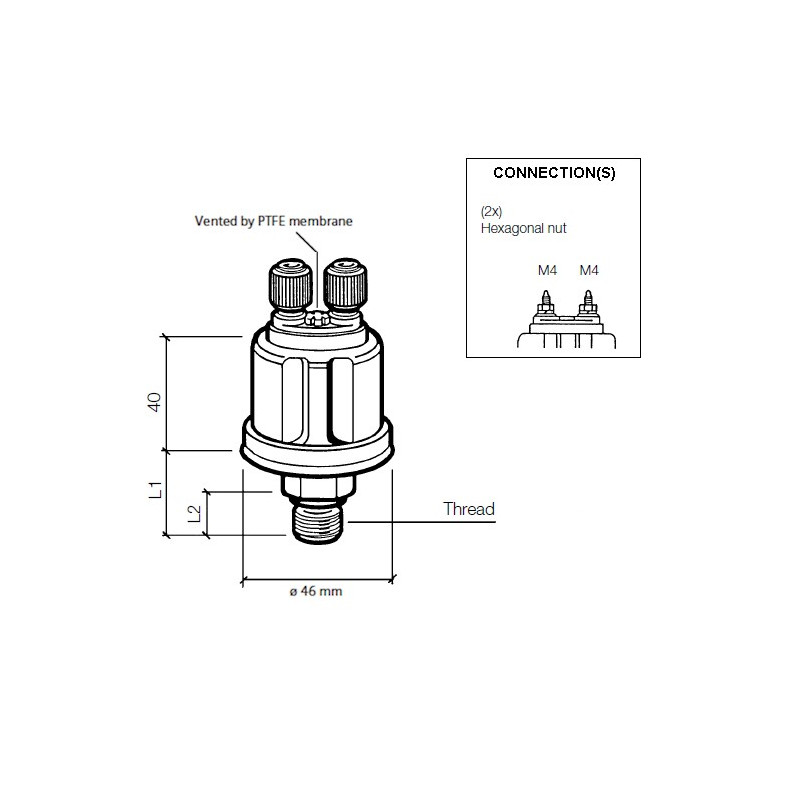

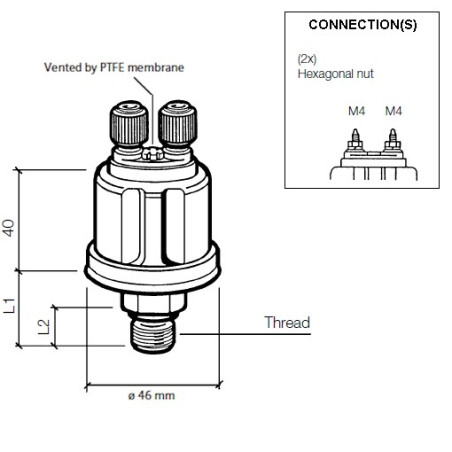

Thread: M14 x 1.5
Length thread + nut (L1): 20.5 mm
Thread length (L2): 12 mm
Torque: 60 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Dual-Pole insulated return
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Pressure sender connector: M4 Hexagonal nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 126 - 127
Type of connection: D
VDO En Du Pressure senders Tables: VDO Datasheet table 3

Retail package:

  • VDO 360 081 032 060C Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
360-081-032-060C

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Isolated from mass
Sensor connector
M4 Hex Nut
Thread
M14 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Hex Nut
Communication
Analogue
Category
Pressure sensors
Article status
Discontinued product
Alternate format
360 081 032 060C
360/81/32/60C

Specific References

EAN13
4103590691255
MPN
A2C6252988966
