VDO pressure transmitter 0-16 bar - M14

Part-number:

VDO 360-081-038-014C

  • Pressure measuring range: 0 - 16 Bar
  • Thread: M14 x 1.5
  • Resistance value: 10 - 184 Ohm
  • Output: Isolated from ground
  • No warning contact
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590691392
  • Weight: 0.12kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 038 014C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 16 Bar
0 - 232 PSI
0 - 1600 KPa
Maximum pressure: 40 Bar for 2 seconds

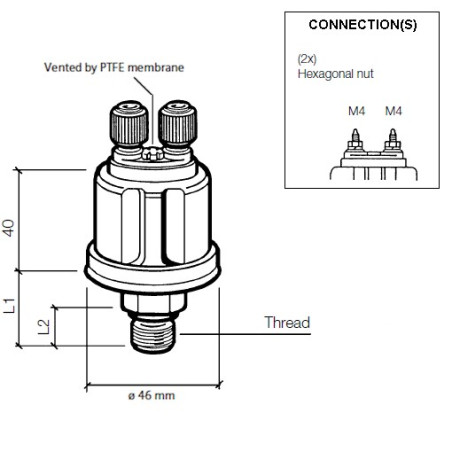

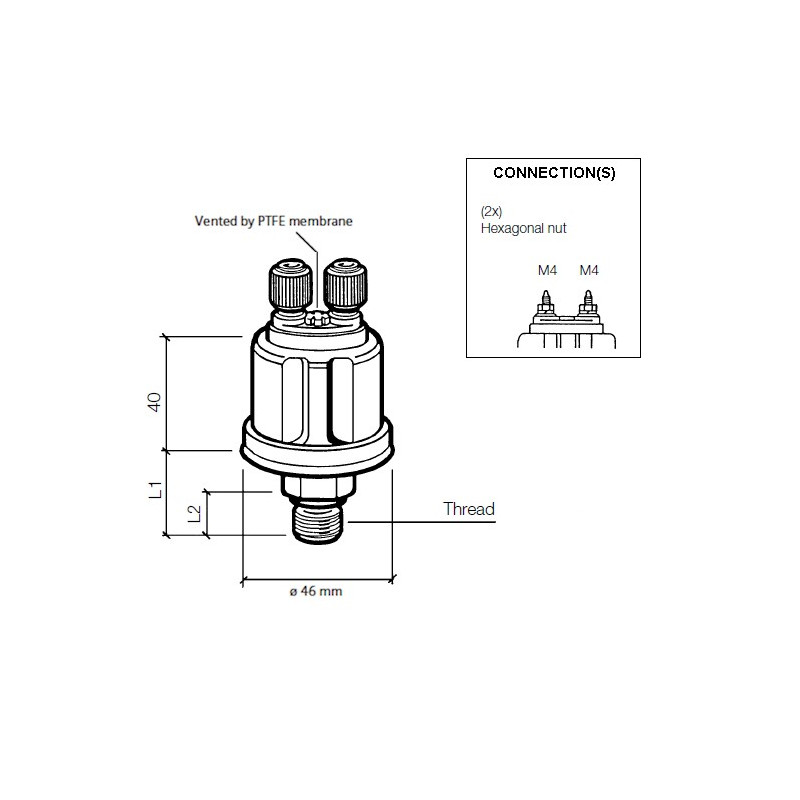

Thread: M14 x 1.5
Thread + nut length (L1): 20.5 mm
Thread length (L2): 12 mm
Torque: 60 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 10 - 184 Ohms
Pressure sensor output signal: 2-pole insulated from ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection: M4 Hex Nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 126 - 127
Type of connection: Model: D
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 5
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 038 014C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
360-081-038-014C

Data sheet

Pressure Measurement Range
0 - 16 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Isolated from mass
Sensor connector
M4 Hex Nut
Thread
M14 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Hex Nut
Communication
Analogue
Category
Pressure sensors
Article status
Discontinued product
Alternate format
360 081 038 014C
360/81/38/14C

Specific References

EAN13
4103590691392
MPN
360-081-038-014C
