360-081-030-052C VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF
search
  • 360-081-030-052C VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF
  • 360-081-030-052C VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF
  • 360-081-030-052C VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF

VDO Pressure transmitter 0-10 Bar - 1/8-27 NPTF

€105.27 (tax incl.)

€87.00 (VAT Excl.)

Part-number:

VDO 360-081-030-052C

  • Pressure range: 0 to 10 Bar
  • Thread: 1/8 - 27 NPTF
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • Warning contact: 0.50 Bar ± 0.20 Bar
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590300393
  • Weight: 0.12kg
Quantity

Description engine oil pressure sender:

VDO 360 081 030 052C Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar during 2 seconds
Thread: 1/8 - 27 NPTF

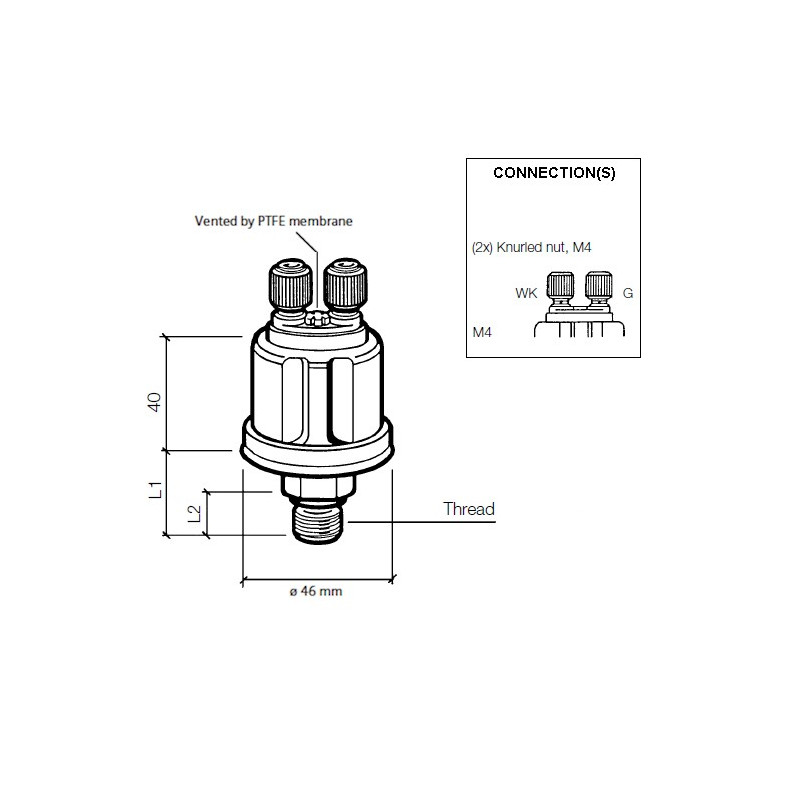

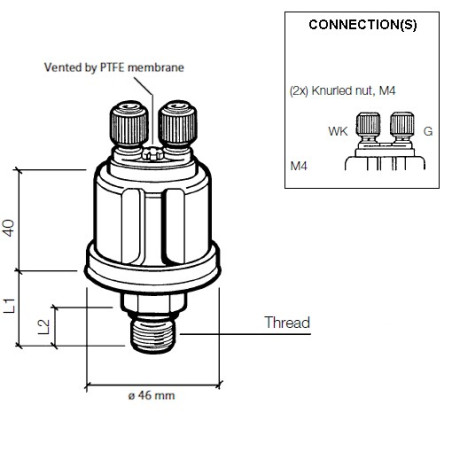

Length thread + nut (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: 0.50 Bar ± 0.20 Bar
Warning contact switching capacity: Maximum 5 Watt non-inductive
Warning contact features: Closes with falling pressure
Pressure sender connector: M4 Plastic knurled nut
Warning contact connector: M4 Plastic knurled nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 123 - 125
Type of connection: A
VDO En Du Pressure senders Tables: VDO Datasheet table 4

Retail package:

  • VDO 360 081 030 052C Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
360-081-030-052C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact connector
M4 Plastic knurled nut
Warning contact
0.50 Bar ± 0.20 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
1/8" - 27 NPTF Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 030 052C
360/81/30/52C

Specific References

EAN13
4103590300393
MPN
360-081-030-052C
