VDO 2801126156351 Pressure transmitter 0-10 Bar - M14
€84.25
(tax incl.)
€69.63 (VAT Excl.)
Part-number:
VDO: 2801126156351
- Pressure range: 0 to 10 Bar
- Thread: M14 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- No warning contact
- Successor of: 360-081-029-033C
- Weight: 0.12kg
Description engine oil pressure sender:
VDO 2801126156351 Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M14 x 1.5 |

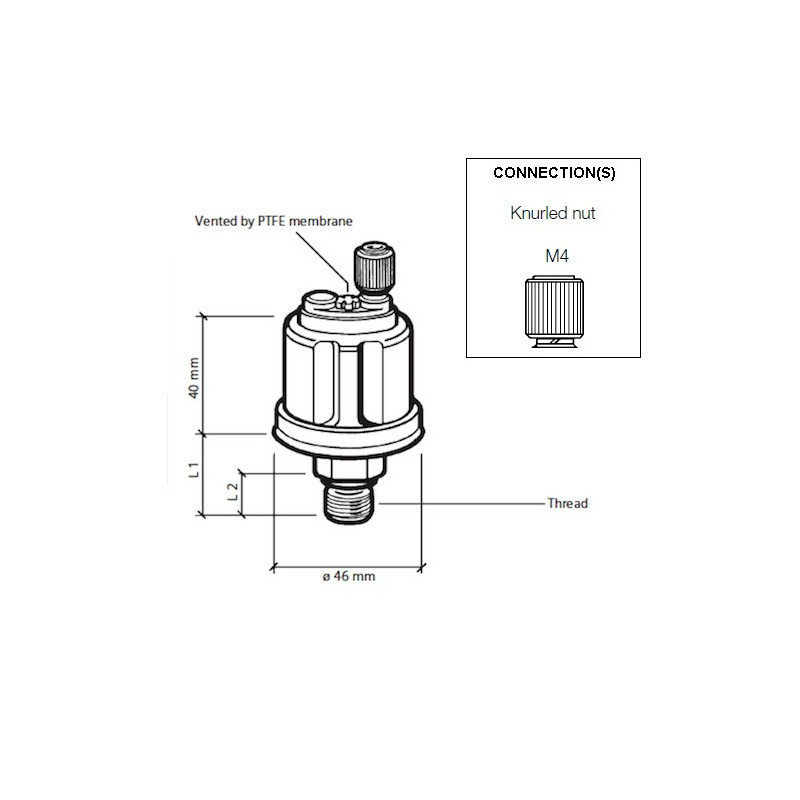

| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 60 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohms |
| Pressure sensor signal: | Single-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 Plastic knurled nut |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 121 - 122 |
| Type of connection: | A |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 4 |
Retail package:
- VDO 2801126156351 Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
