VDO 2801126159351 Pressure transmitter 0-5 Bar - M18
€97.66
(tax incl.)
€80.71 (VAT Excl.)
Part-number:
VDO 2801126159351
- Pressure range: 0 to 5 Bar
- Thread: M18 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- No warning contact
- Replacement for: 360-081-029-059C
- Weight: 0.13kg
Description engine oil pressure sender:
VDO 2801126159351 Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |

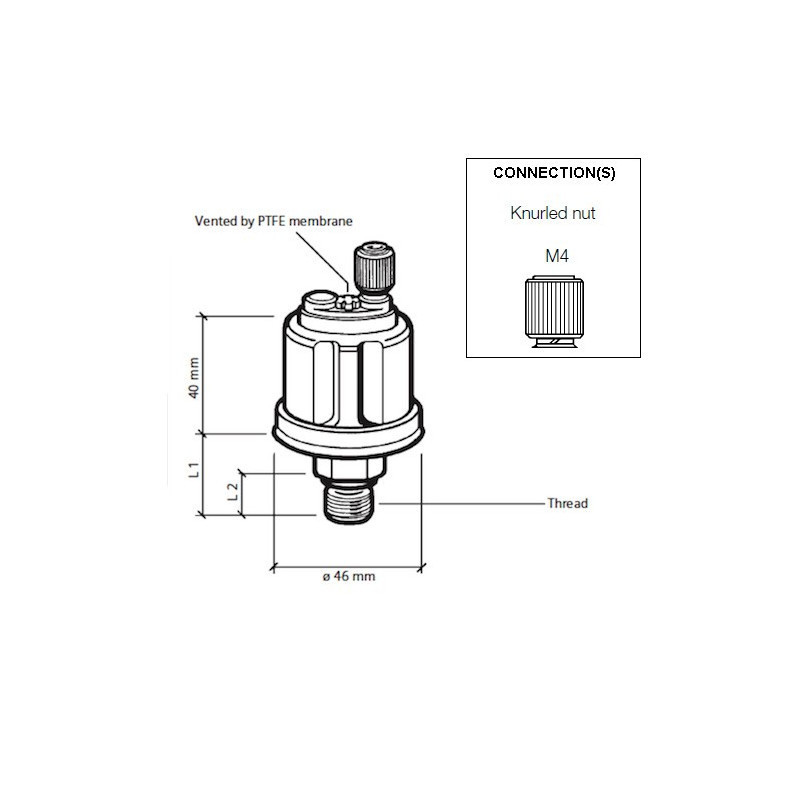

| Thread: | M18 x 1.5 |
| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 100 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohms |
| Pressure sensor signal: | Single-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 Hexagonal nut |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 121 - 122 |
| Type of connection: | B |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 3 |
Retail package:
- VDO 2801126159351 Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO 2801126159351
- Pressure range: 0 to 5 Bar
- Thread: M18 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- No warning contact
- Replacement for: 360-081-029-059C
