360-081-030-002C VDO Pressure Sensor 0-5 Bar - M10
search
  • 360-081-030-002C VDO Pressure Sensor 0-5 Bar - M10
  • 360-081-030-002C VDO Pressure Sensor 0-5 Bar - M10

VDO 2801126161351 Pressure Sensor 0-5 Bar - M10

€96.91 (tax incl.)

€80.09 (VAT Excl.)

Part-number:

VDO 2801126161351

  • Pressure range: 0 to 5 Bar
  • Thread: M10 x 1 Conical short
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • Warning contact: 0.50 Bar ± 0.15 Bar
  • Successor of: 360-081-030-002C
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.12kg
Quantity

Description pressure sender:

VDO 2801126161351 Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure: 30 Bar during 2 seconds

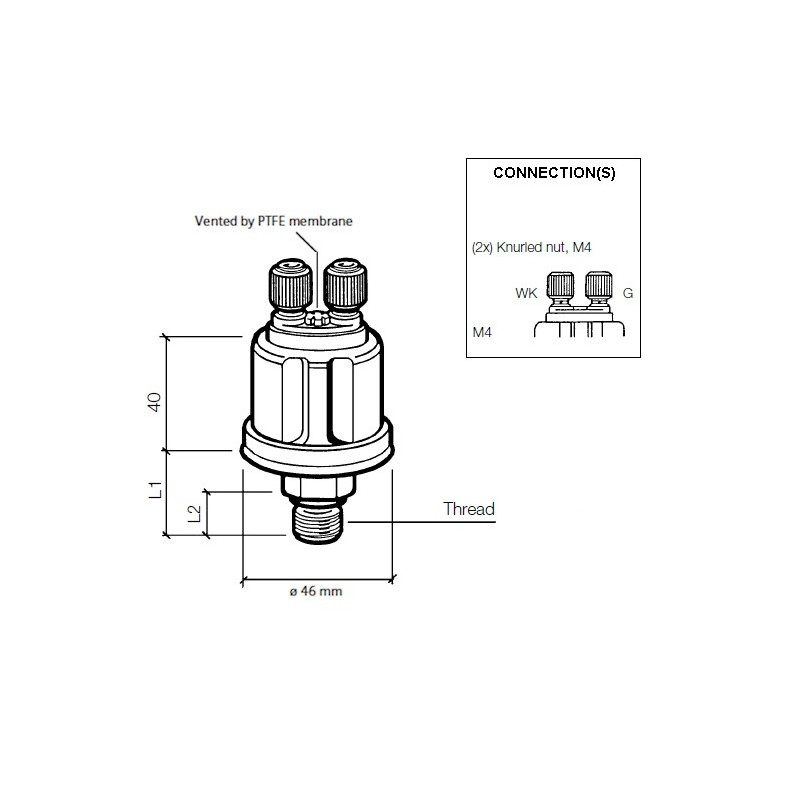

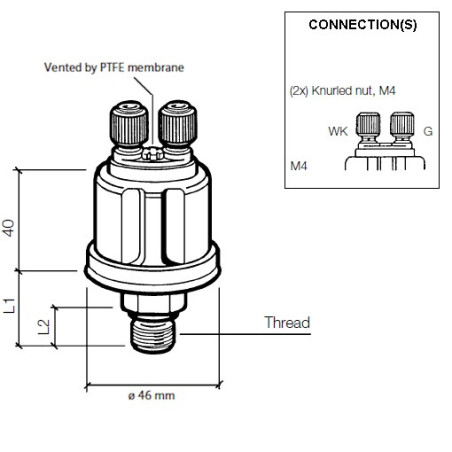

Thread: M10 x 1 Tapered shorts
Length thread + nut (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: 0.50 Bar ± 0.15 Bar
Warning contact switching capacity: Maximum 5 Watt non-inductive
Warning contact features: Closes with falling pressure
Pressure sender connector: M4 Plastic knurled nut
Warning contact connector: M4 Plastic knurled nut

Retail package:

  • VDO 2801126161351 Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
2801126161351

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact connector
M4 Plastic knurled nut
Warning contact
0.50 Bar ± 0.15 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor OEM bulk packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
M10 x 1 Male conical short
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Discontinued product
Alternate format
360 081 030 002C
360/81/30/2C

Specific References

MPN
2801126161351
