VDO 2801126158351 Pressure transmitter 0-10 Bar - 1/8-27 NPTF

€83.31 (tax incl.)

€68.85 (VAT Excl.)

Part-number:

VDO 2801126158351

  • Pressure range: 0 to 10 Bar
  • Thread: 1/8 - 27 NPTF
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
  • Successor of: 360-081-029-042C
Logistical information:
Available to orderClick here for detailed information.
  • Weight: 0.11kg
Quantity

Description pressure sender:

VDO 2801126158351 Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar during 2 seconds

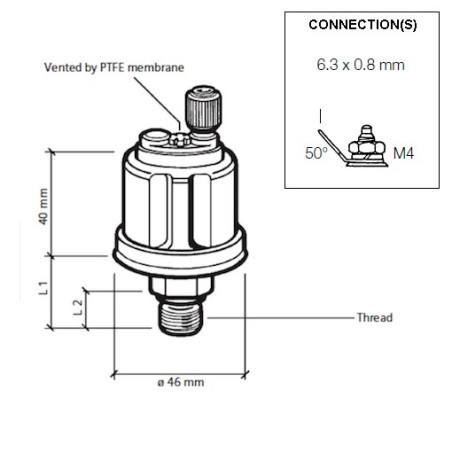

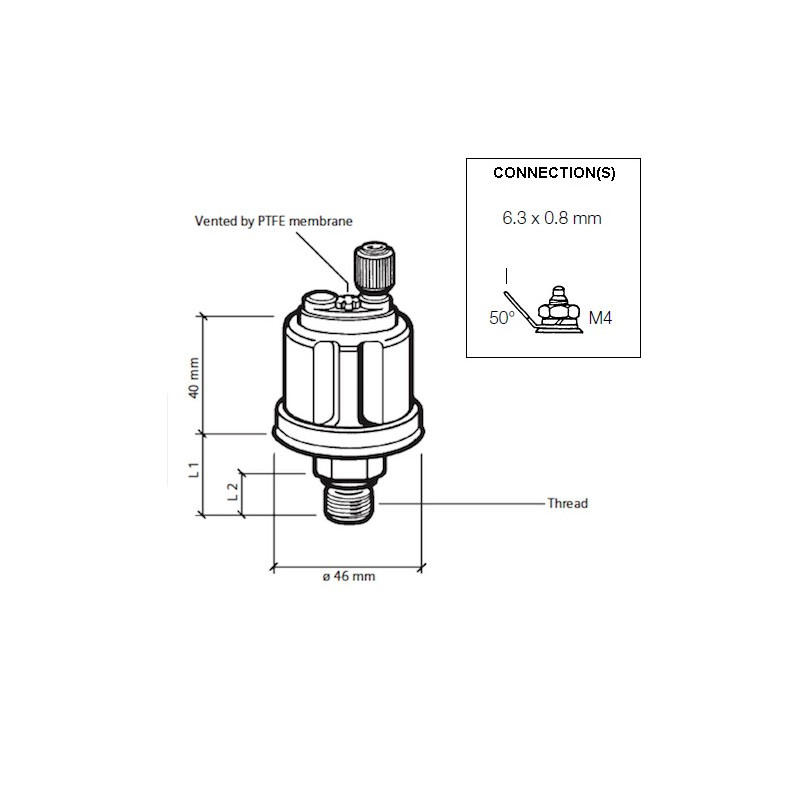

Thread: 1/8 - 27 NPTF
Length thread + nut (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Pressure sender connector: M4 AMP Male 6.3 x 0.8 mm 50°

Retail package:

  • VDO 2801126158351 Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
2801126158351

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Flat plug 6.3 x 0.8 mm
Thread
1/8" - 27 NPTF Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 029 042C
360/81/29/42C

Specific References

MPN
2801126158351
