360-081-029-013C VDO Pressure Sensor 0-10 Bar - M12
search
  • 360-081-029-013C VDO Pressure Sensor 0-10 Bar - M12
  • 360-081-029-013C VDO Pressure Sensor 0-10 Bar - M12

VDO 2801126154351 Pressure transmitter 0-10 Bar - M12

€87.88 (tax incl.)

€72.63 (VAT Excl.)

Part-number:

VDO 2801126154351

  • Pressure range: 0 to 10 Bar
  • Thread: M12 x 1.5
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
  • Successor to: 360-081-029-0013C
Logistical information:
Discontinued, limited availableClick here for detailed information.
  • Weight: 0.11kg
Quantity

Description pressure sender:

VDO 2801126154351 Full technical specifications:

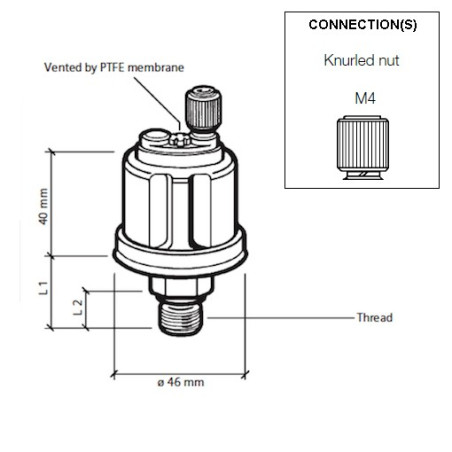

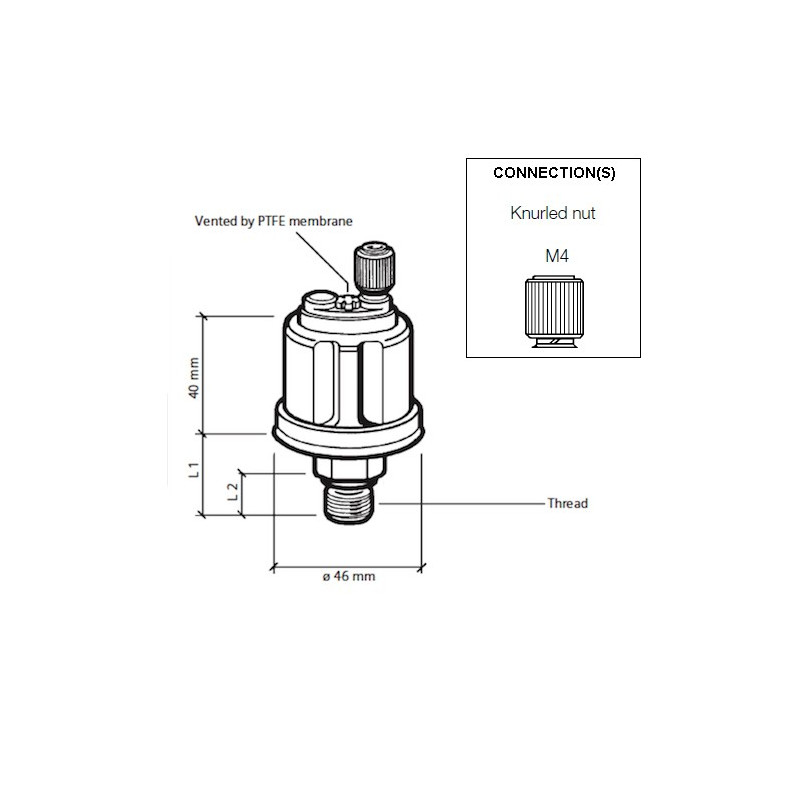

Mechanical features:

Pressure measuring range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar during 2 seconds
Thread: M12 x 1.5
Length thread + nut (L1): 20.5 mm
Thread length (L2): 12 mm
Torque: 40 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Pressure sender connector: M4 Plastic knurled nut

Retail package:

  • VDO 2801126154351 Pressure sender no retail packaging
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
2801126154351

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
M12 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Discontinued, limited available
Alternate format
360 081 029 013C
360/81/29/13C

Specific References

MPN
2801126154351
