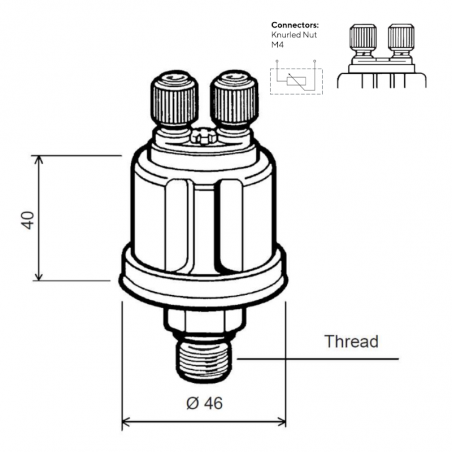

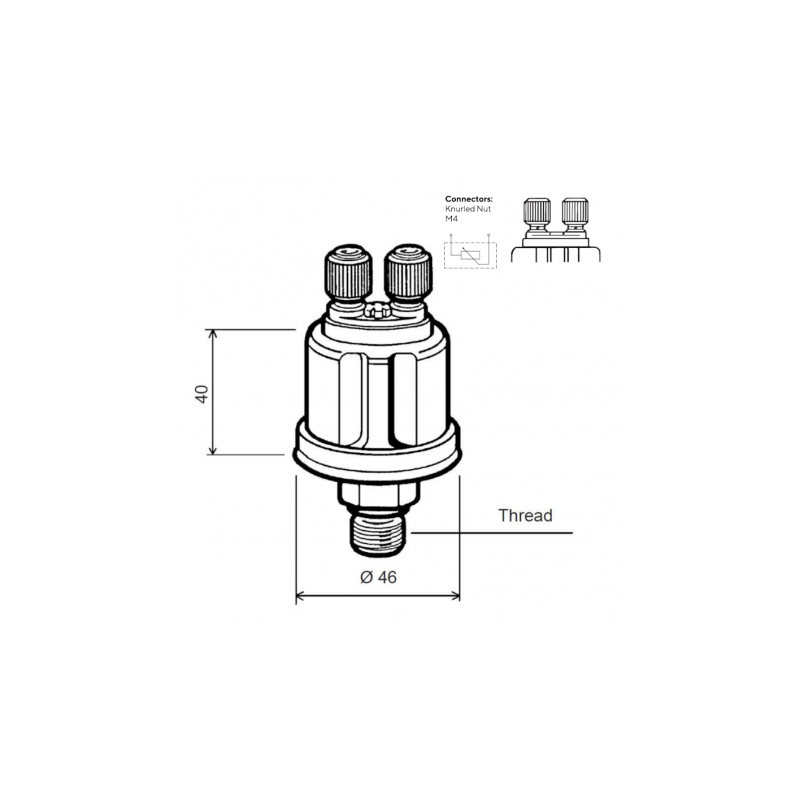

Veratron B002142 Pressure sensor 0-10 Bar - M10x1
€39.33
(tax incl.)
€32.50 (VAT Excl.)
Part-number:
Veratron B002142
- Pressure range: 0 to 10 Bar
- Thread: M10x1
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
Logistical information:
- HS Code: 90269000
- Ean Code: 7640190290879
- Weight: 0.12kg
Description engine oil pressure sender:
Veratron B002142 technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M10x1 |
| Length thread + nut (L1): | 40 mm |
| Thread length (L2): | 10 mm |
| Torque: | 30 Nm |
| Operating temperature: | -25 °C to +120 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 Plastic knurled nut (2x) |
Retail package:
- Veratron B002142 Pressure sender
- Veratron Sensors are - unless otherwise noted - delivered without connecting material
B002142
Data sheet
- Pressure Measurement Range
- 0 - 10 Bar
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Isolated from mass
- Sensor connector
- M4 Plastic knurled nut
- Thread
- M10 x 1 Male
- Country of origin
- China
- Functionality
- Engine oil pressure
- Connector type
- M4 Plastic knurled nut
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640190290879
- MPN
- B002142
Veratron B002142
- Pressure range: 0 to 10 Bar
- Thread: M10x1
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
