VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF

€92.61 (tax incl.)

€76.54 (VAT Excl.)

Part-number:

VDO 360-081-029-012C

  • Pressure range: 0 to 10 Bar
  • Thread: 1/8 - 27 NPTF
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590690739
  • Weight: 0.11kg
Quantity

Description engine oil pressure sender:

VDO 360 081 029 012C Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar during 2 seconds

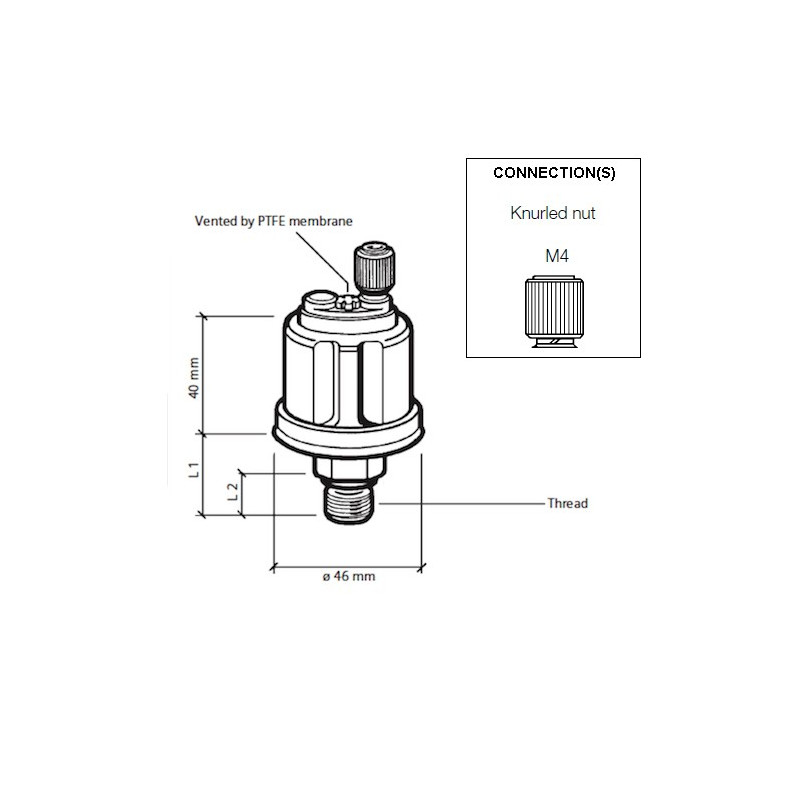

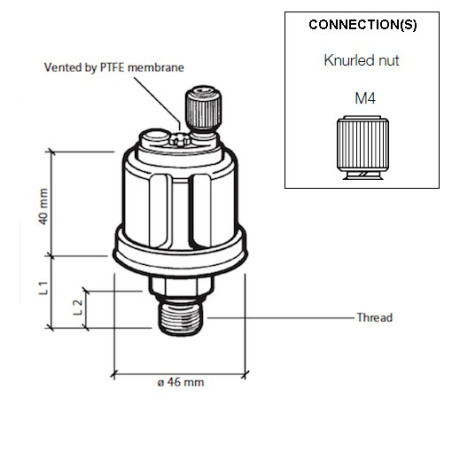

Thread: 1/8 - 27 NPTF
Length thread + nut (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Pressure sender connector: M4 Plastic knurled nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 121 - 122
Type of connection: A
VDO En Du Pressure senders Tables: VDO Datasheet table 4

Retail package:

  • VDO 360 081 029 012C Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
360-081-029-012C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
1/8" - 27 NPTF Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 029 012C
360/81/29/12C

Specific References

EAN13
4103590690739
MPN
360-081-029-012C
