VDO Pressure Sensor 0-10 Bar - M14

Part-number:

VDO 360-081-030-078C

  • Pressure range: 0 to 10 Bar
  • Thread: M14 x 1.5
  • Sender resistance range: 10 - 184 Ohm
  • Sensor signal: 1-pole common ground
  • Warning contact: 1.00 Bar ± 0.15 Bar
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590949653
  • Weight: 0.12kg
Discontinued article
Replacement article on request

Description engine oil pressure sender:

VDO 360 081 030 078C Full technical specifications:

Mechanical features:

Pressure measuring range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar during 2 seconds
Thread: M14 x 1.5

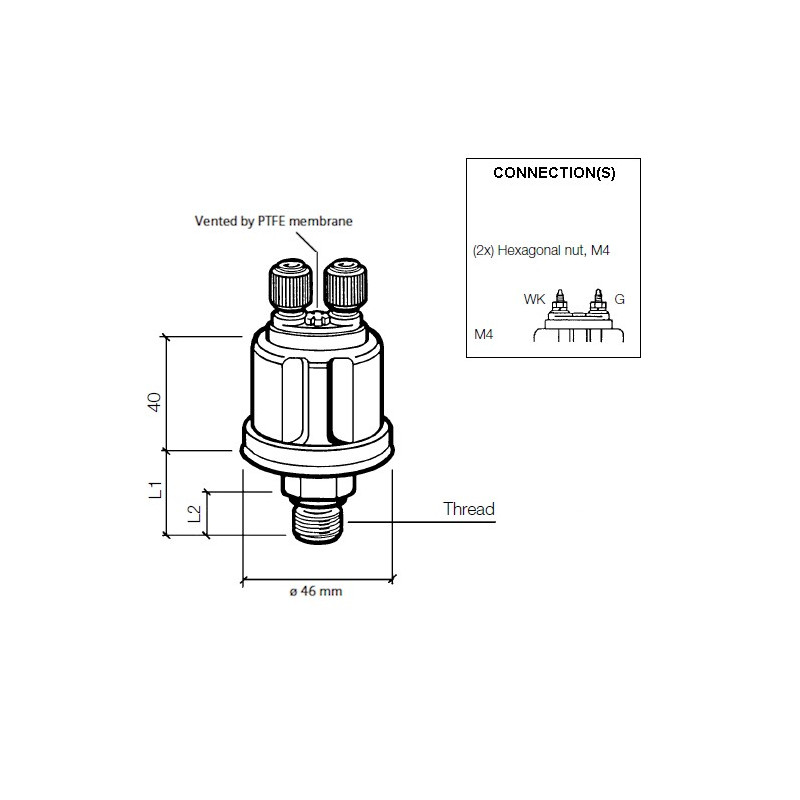

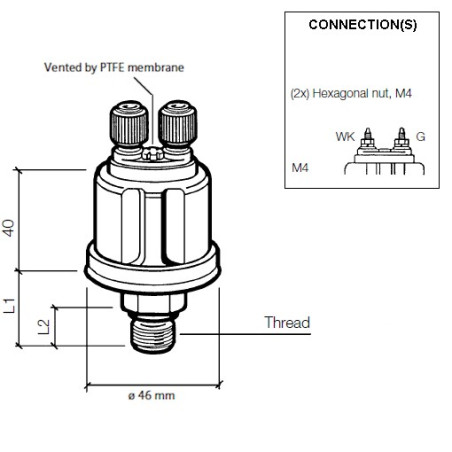

Length thread + nut (L1): 20.5 mm
Thread length (L2): 12 mm
Torque: 60 Nm
Operating temperature: -25 °C to +100 °C
Pressure medium: Oil - Fuel - Air

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 10 - 184 Ohms
Pressure sensor signal: Single-Pole common ground
Warning contact: 1.00 Bar ± 0.15 Bar
Warning contact switching capacity: Maximum 5 Watt non-inductive
Warning contact features: Closes with falling pressure
Pressure sender connector: M4 Thread
Warning contact connector: M4 Thread

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 123 - 125
Type of connection: E
VDO En Du Pressure senders Tables: VDO Datasheet table 4

Retail package:

  • VDO 360 081 030 078C Pressure sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
360-081-030-078C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact connector
M4 Threaded Rod
Warning contact
1.00 Bar ± 0.15 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Threaded Rod
Thread
M14 x 1.5 Male
Country of origin
Germany
Functionality
Engine oil pressure
Connector type
M4 Threaded Rod
Communication
Analogue
Category
Pressure sensors
Article status
Discontinued product
Alternate format
360 081 030 078C
360/81/30/78C

Specific References

EAN13
4103590949653
MPN
360-081-030-078C
