360-081-030-154C VDO Pressure Sensor 0-7 Bar - 1/8-27 NPTF
search
  • 360-081-030-154C VDO Pressure Sensor 0-7 Bar - 1/8-27 NPTF

VDO Pressure Sensor 0-7 Bar - 1/8-27 NPTF

Part-number:
VDO 360-081-030-154C
  • Pressure measuring range: 0 - 7 Bar
  • Thread: 1/8 - 27 NPTF
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 030 154C Specifications:

Mechanical properties:

Pressure measurement range:0 - 7 Bar
0 - 101.5 PSI
0 - 700 KPa
Maximum pressure:30 Bar for 2 seconds

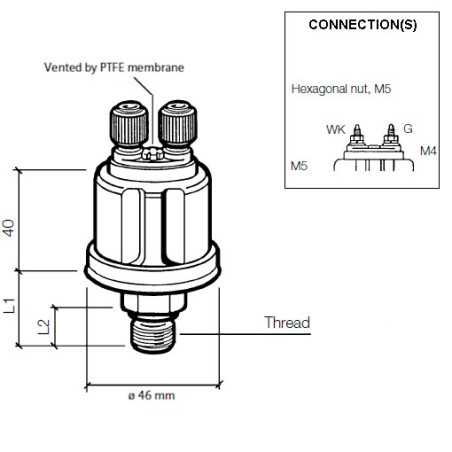

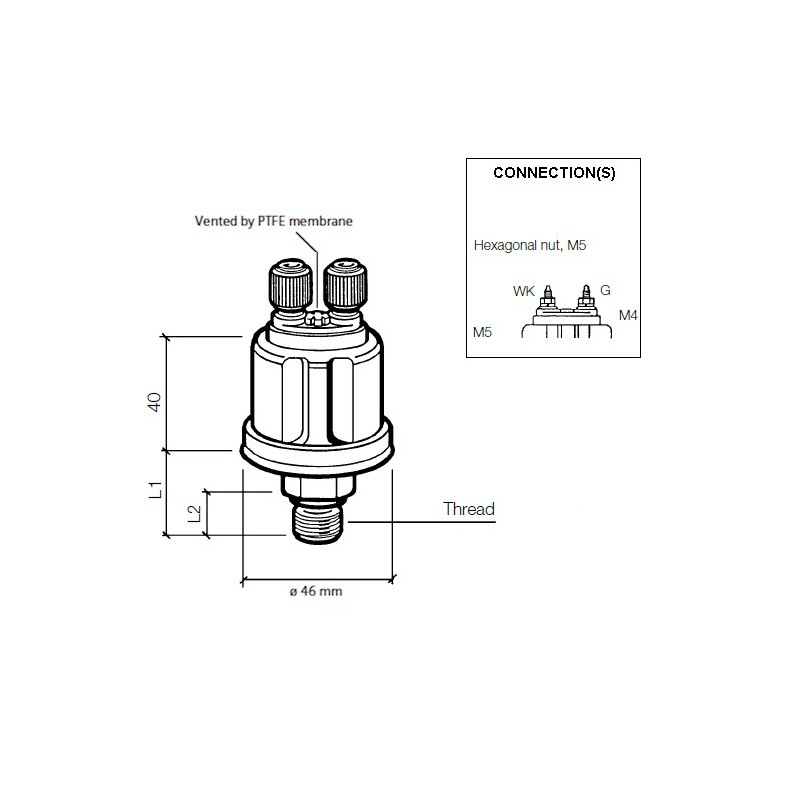

Thread:1/8 - 27 NPTF
Thread + nut length (L1):19.5 mm
Thread length (L2):11 mm
Torque:30 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:1-pole min to ground
Warning contact:0.70 Bar ± 0.15 Bar
Load warning contactMaximum 5 Watt induction-free
Warning contact propertiesContact closes when pressure drops
Pressure sensor connection:M5 Hex Nut
Warning contact connection:M5 Hex Nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 123 - 125
Type of connection:Model: L
VDO En Du Pressure Sensors Tables:No statement VDO
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 360 081 030 154C Pressure Sensor
  • On request
360-081-030-154C

Data sheet

Pressure Measurement Range
0 - 7 Bar
Warning contact connector
M5 Hex Nut
Warning contact
0.70 Bar ± 0.15 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M5 Hex Nut
Thread
1/8" - 27 NPTF Male
Functionality
Engine oil pressure
Connector type
M5 Hex Nut
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 030 154C
360/81/30/154C

Specific References

MPN
360-081-030-154C
