VDO Pressure Sensor 0-10 Bar - 1/8-27 NPTF

Part-number:
VDO 360-081-032-067C
  • Pressure measurement range: 0 - 10 Bar
  • Thread: 1/8 - 27 NPTF
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 032 067C Specifications:

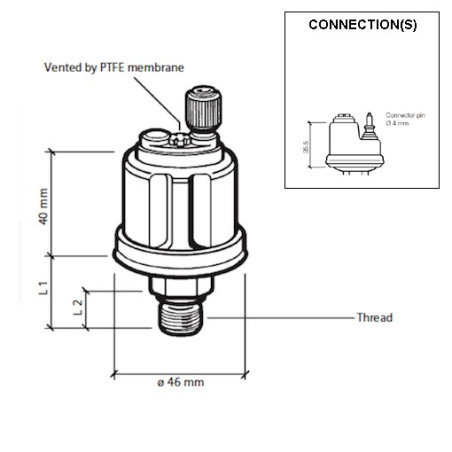

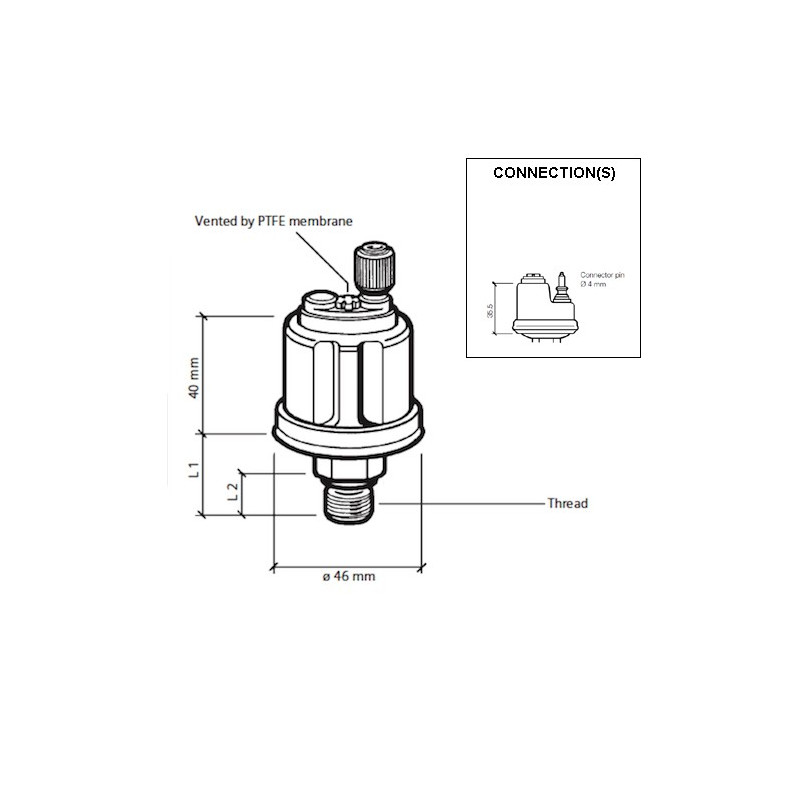

Mechanical properties:

Pressure measurement range:0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure:30 Bar for 2 seconds
Thread:1/8 - 27 NPTF
Thread + nut length (L1):19.5 mm
Thread length (L2):11 mm
Torque:30 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:1-pole min to ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection:Pin connector ø 4 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 121 - 122
Type of connection:Model: F
VDO En Du Pressure Sensors Tables:VDO Datasheet Table 4
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 360 081 032 067C Pressure Sensor
  • On request
360-081-032-067C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
Pin connector ø 4 mm
Thread
1/8" - 27 NPTF Male
Functionality
Engine oil pressure
Connector type
Pin connector ø 4 mm
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 032 067C
360/81/32/67C

Specific References

MPN
360-081-032-067C
