VDO Pressure Sensor 0-5 Bar - M18
€132.45
(tax incl.)
€109.46 (VAT Excl.)
Part-number:
VDO 360-081-034-004C
- Pressure range: 0 to 5 Bar
- Thread: M18 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 0.25 Bar ± 0.15 Bar
Logistical information:
- HS Code: 90269000
- Ean Code: 4103590949714
- Weight: 0.11kg
Description engine oil pressure sender:
VDO 360 081 034 004C Full technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M18 x 1.5 |

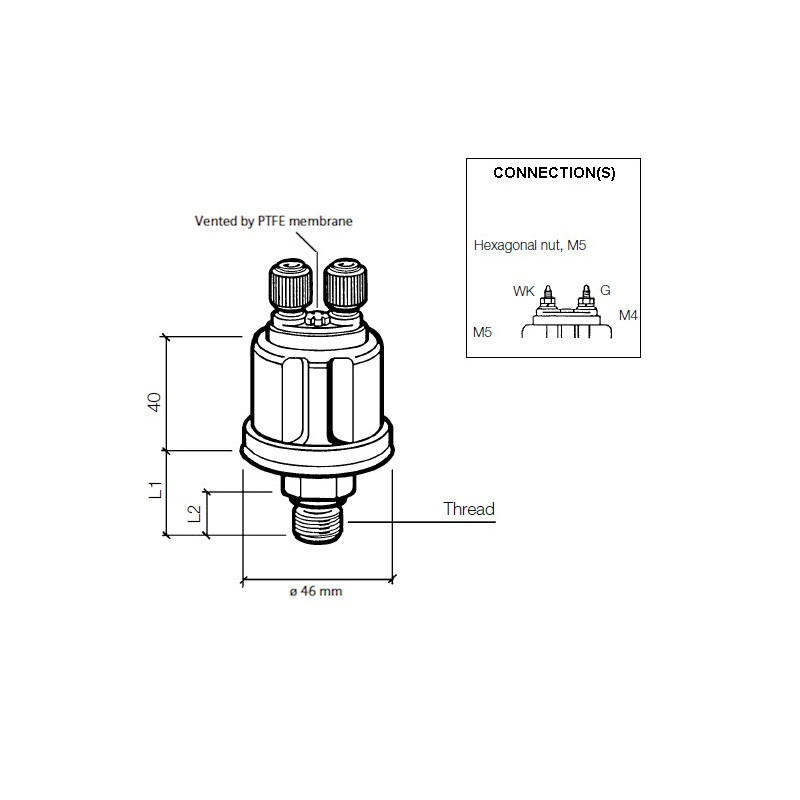

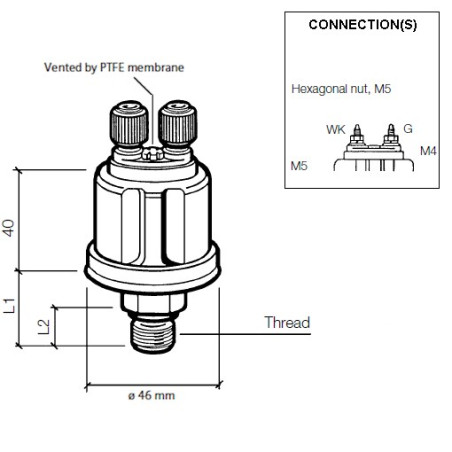

| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 100 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohms |
| Pressure sensor signal: | Single-Pole common ground |
| Warning contact: | 0.25 Bar ± 0.15 Bar |
| Warning contact switching capacity: | Maximum 5 Watt non-inductive |
| Warning contact features: | Closes with falling pressure |
| Pressure sender connector: | M5 Hexagonal nut |
| Warning contact connector: | M5 Hexagonal nut |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 123 - 125 |
| Type of connection: | L |
| VDO En Du Pressure senders Tables: | VDO Datasheet table 3 |
Retail package:
- VDO 360 081 034 004C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
360-081-034-004C
Data sheet
- Pressure Measurement Range
- 0 - 5 Bar
- Warning contact connector
- M5 Hex Nut
- Warning contact
- 0.25 Bar ± 0.15 Bar
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Minus in mass
- Sensor connector
- M5 Hex Nut
- Thread
- M18 x 1.5 Male
- Country of origin
- Germany
- Functionality
- Engine oil pressure
- Connector type
- M5 Hex Nut
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Available to order
- Alternate format
- 360 081 034 004C
360/81/34/4C
Specific References
- EAN13
- 4103590949714
- MPN
- 360-081-034-004C
VDO 360-081-034-004C
- Pressure range: 0 to 5 Bar
- Thread: M18 x 1.5
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 1-pole common ground
- Warning contact: 0.25 Bar ± 0.15 Bar
