VDO Pressure Sensor 0-30 Bar - M18

Part-number:
VDO 360-081-054-002Z
  • Pressure measurement range: 0 - 30 Bar
  • Thread: M18 x 1.5
  • Resistance value: 10 - 184 Ohm
  • Output: Isolated from ground
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description transmission oil pressure sensor:

VDO 360 081 054 002Z Specifications:

Mechanical properties:

Pressure measurement range:0 - 30 Bar
0 - 435 PSI
0 - 3000 KPa
Maximum pressure:50 Bar for 2 seconds
Thread:M18 x 1.5

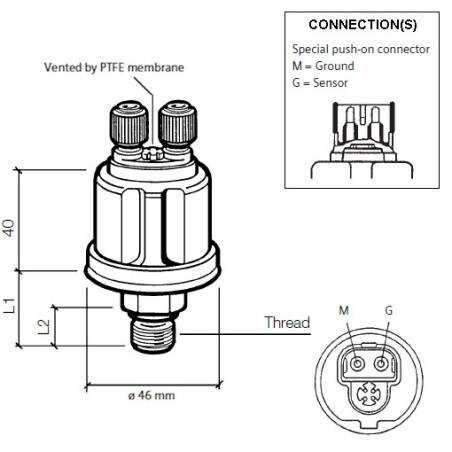

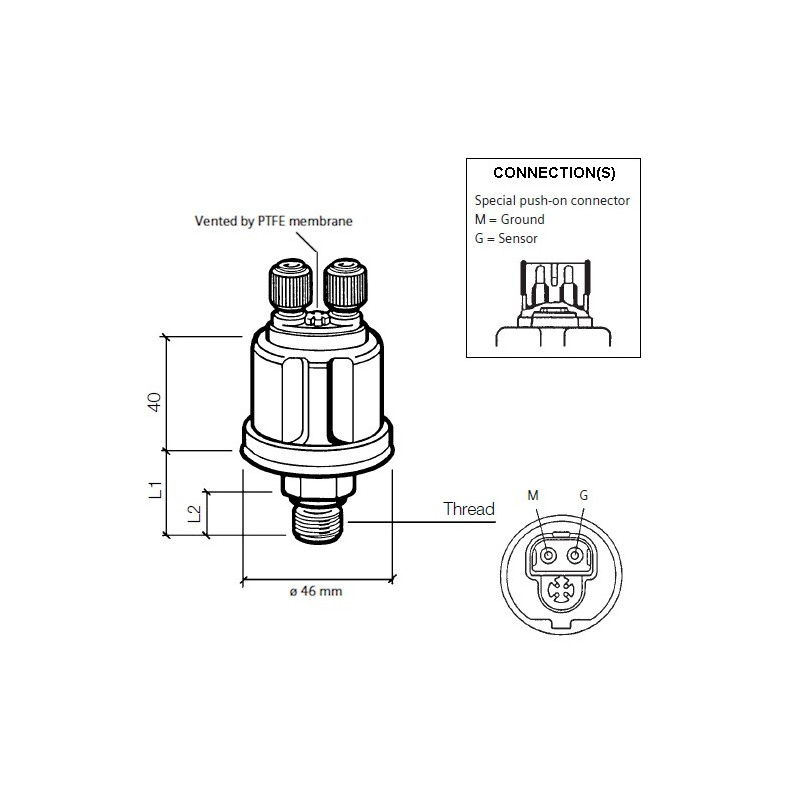

Thread + nut length (L1):20.5 mm
Thread length (L2):12 mm
Torque:100 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:2-pole insulated from ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection:Bosch special push-on connector

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 126 - 127
Type of connection:Model: M
VDO En Du Pressure Sensors Tables:No VDO
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 054 002Z Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
360-081-054-002Z

Data sheet

Pressure Measurement Range
0 - 30 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Isolated from mass
Sensor connector
Bosch push-on connector 2.8x0.8mm
Thread
M18 x 1.5 Male
Functionality
Transmission oil pressure
Connector type
Bosch push-on connector 2.8x0.8mm
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 054 002Z
360/81/54/2Z

Specific References

MPN
360-081-054-002Z
