VDO Pressure Sensor 0-10 Bar - M14
Part-number:
VDO 360-081-061-003C
- Pressure measurement range: 0 - 10 Bar
- Thread: M14 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Warning contact: 1.00 Bar ± 0.15 Bar
Logistical information:
- Weight: 0.50kg
Technical description engine oil pressure sensor:
VDO 360 081 061 003C Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 10 Bar 0 - 145 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar for 2 seconds |

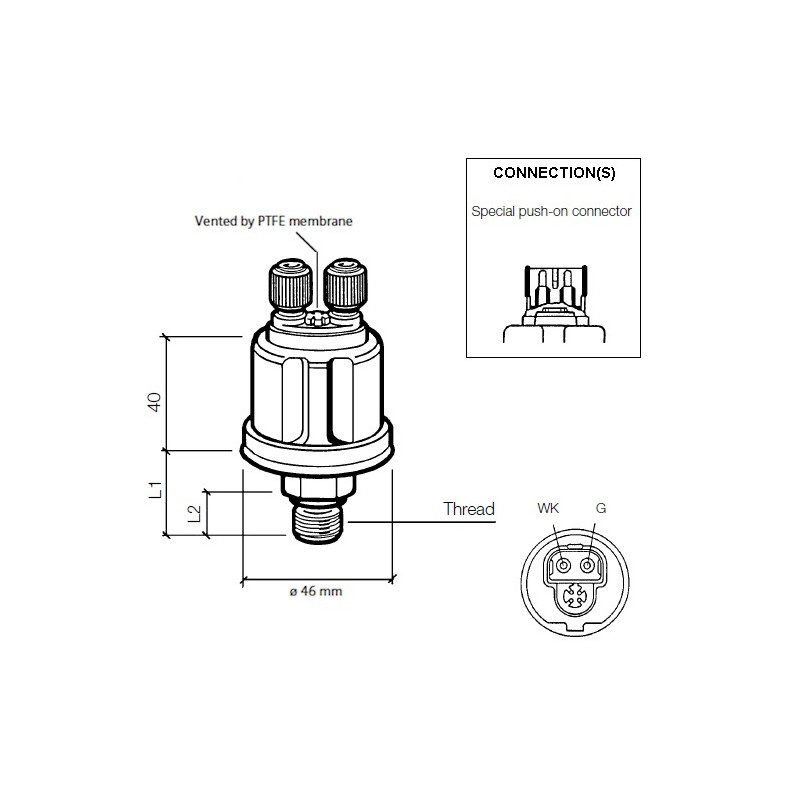

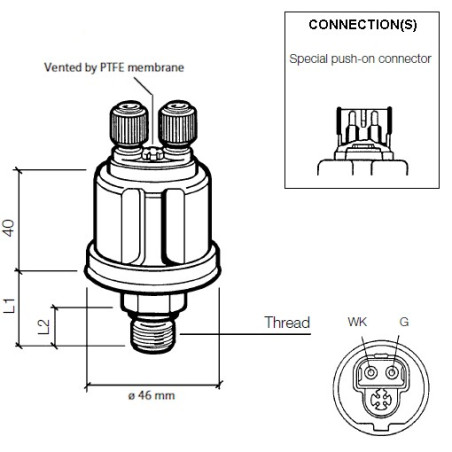

| Thread: | M14 x 1.5 |
| Thread + nut length (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 60 Nm |
| Operating Temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 10 - 184 Ohms |
| Pressure sensor output signal: | 1-pole min to ground |
| Warning contact: | 1.00 Bar ± 0.15 Bar |
| Load warning contact | Maximum 5 Watt induction-free |
| Warning contact properties | Contact closes when pressure drops |
| Pressure sensor connection: | Bosch push-on connector 2.8x0.8mm |
| Warning contact connection: | Bosch push-on connector 2.8x0.8mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 123 - 125 |
| Type of connection: | Model: M |
| VDO En Du Pressure Sensors Tables: | VDO Datasheet Table 4 |
| VDO Pressure sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 360 081 061 003C Pressure Sensor
- VDO Sensors are - unless otherwise stated - delivered without connection material
360-081-061-003C
Data sheet
- Pressure Measurement Range
- 0 - 10 Bar
- Warning contact connector
- Bosch push-on connector 2.8x0.8mm
- Warning contact
- 1.00 Bar ± 0.15 Bar
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Minus in mass
- Sensor connector
- Bosch push-on connector 2.8x0.8mm
- Thread
- M14 x 1.5 Male
- Functionality
- Engine oil pressure
- Connector type
- Bosch push-on connector 2.8x0.8mm
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Expired product
- Alternate format
- 360 081 061 003C
360/81/61/3C
Specific References
- MPN
- 360-081-061-003C
VDO 360-081-061-003C
- Pressure measurement range: 0 - 10 Bar
- Thread: M14 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Warning contact: 1.00 Bar ± 0.15 Bar
