VDO Pressure Sensor 0-10 Bar - R1/8 DIN 2999

Part-number:

VDO 360-094-001-002C

  • Pressure measurement range: 0 - 10 Bar
  • Thread: R 1/8 DIN 2999
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 094 001 002C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar for 2 seconds
Thread: R 1/8 DIN 2999

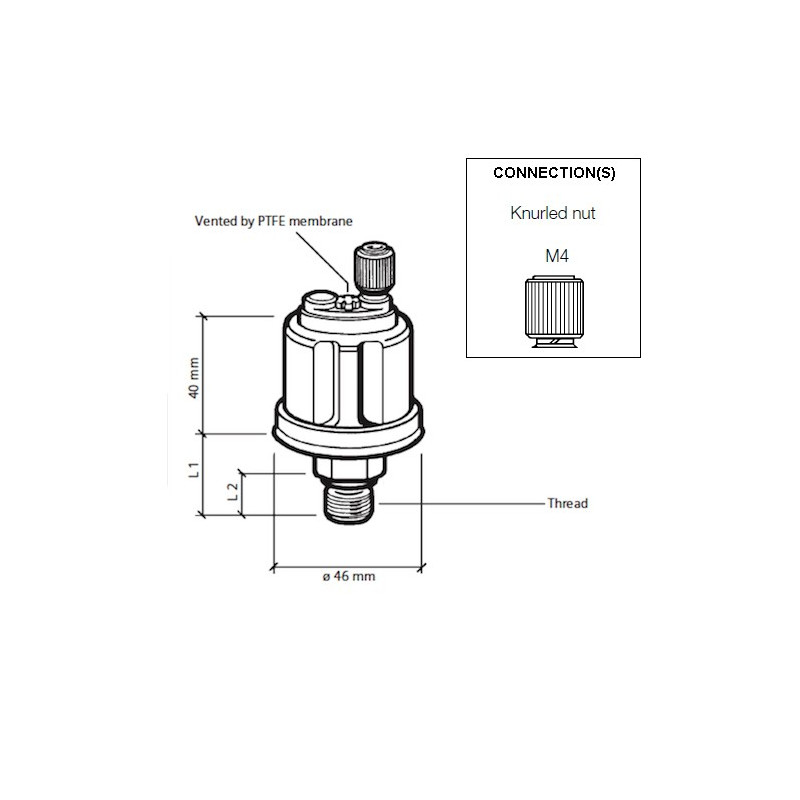

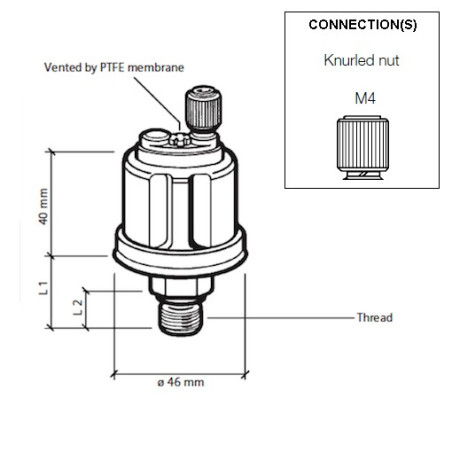

Thread + nut length (L1): 19.5 mm
Thread length (L2): 11 mm
Torque: 30 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 10 - 184 Ohms
Pressure sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection: M4 Plastic knurled nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 121 - 122
Type of connection: Model: A
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 4
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 360 094 001 002C Pressure Sensor
  • On request
360-094-001-002C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
R 1/8" DIN 2999 Male
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 094 001 002C
360/94/1/2C

Specific References

MPN
360-094-001-002C
