VDO Pressure sensor 0-5 Bar - M12 x 1.25

Part-number:

VDO 360-081-029-099C

  • Pressure measuring range: 0 - 5 Bar
  • Thread: M12 x 1.25
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 029 085C Specifications:

Mechanical properties:

Pressure measurement range: 0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure: 30 Bar for 2 seconds

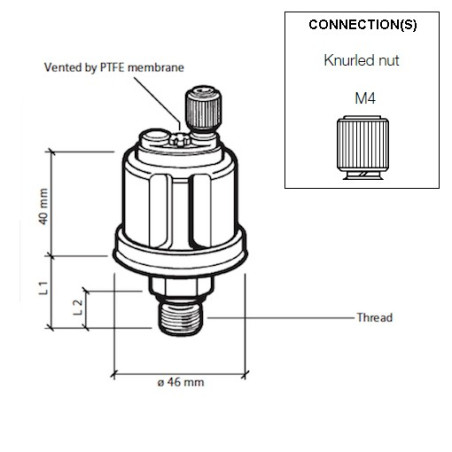

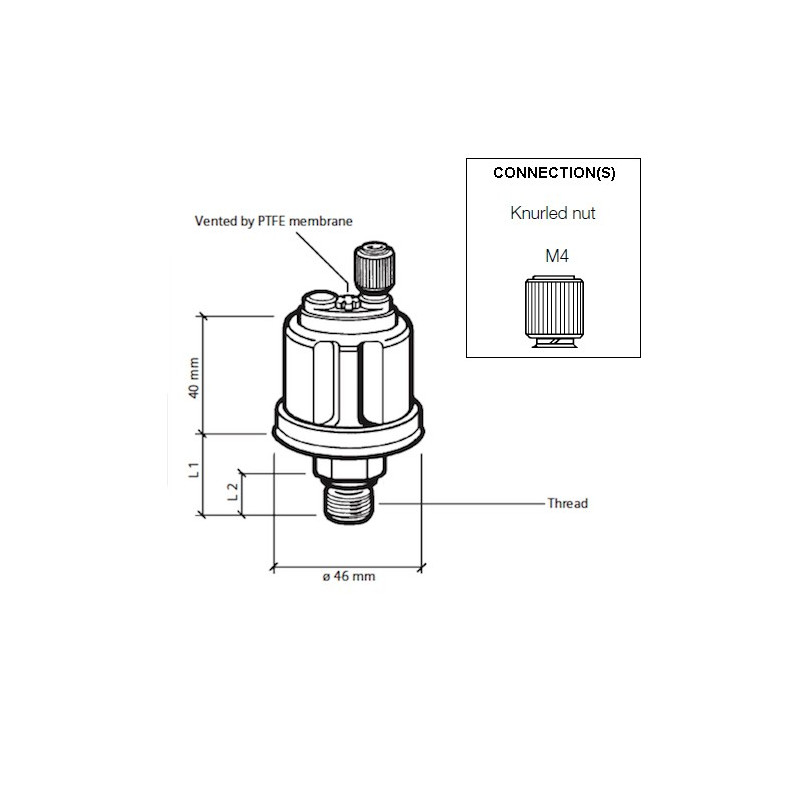

Thread: M12 x 1.25
Thread + nut length (L1): 19.5 mm
Thread length (L2): 10 mm
Torque: 40 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 10 - 184 Ohms
Pressure sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection: M4 Plastic knurled nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 121 - 122
Type of connection: Model: A
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 3
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 029 099C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
360-081-029-099C

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Thread
M12 x 1.25 Male
Functionality
Engine oil pressure
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 029 099C
360/81/29/99C

Specific References

MPN
360-081-029-099C
