  • 340-807-001-001C 4 Pieces Bulk Packaging VDO Generator Speed - Speed Sensor - M22

4 Pieces Bulk Packaging VDO Generator speed - speed sensor - M22

Part-number:

VDO 340-807-001-001C

  • 4 Pieces Bulk Packaging
  • Sensor type: Generator 3,000 RPM
  • Thread: M22 x 1.5
  • Output: 19.3 V at 2,000 RPM
  • Output: Isolated from ground
  • Connection: M4 thread 3x
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90299000
  • Weight: 6.21kg
Discontinued article
Replacement article on request

Technical description Generator Speed and Speed Sensor:

VDO 340 807 001 001C Specifications:

Mechanical properties:

Thread: M22 x 1.5 Female
Maximum speed: 3,000 RPM
Operating Temperature: -25 °C to +90 °C
Sensor length overall without thread: 80 mm
Maximum drive torque: 500 pcm
Degree of protection: IP54 DIN 40050

Electrical properties:

Supply voltage: Independent
Output signal: Isolated from mass
Connection: 3-pole M4 Thread
No-load output voltage: 19.3 V at 2,000 RPM no load
Output voltage tolerance: 1% Nominal at 20 °C

Datasheets - Tables:

2010 EU VDO Sensors Catalog Download Page 60 - 61

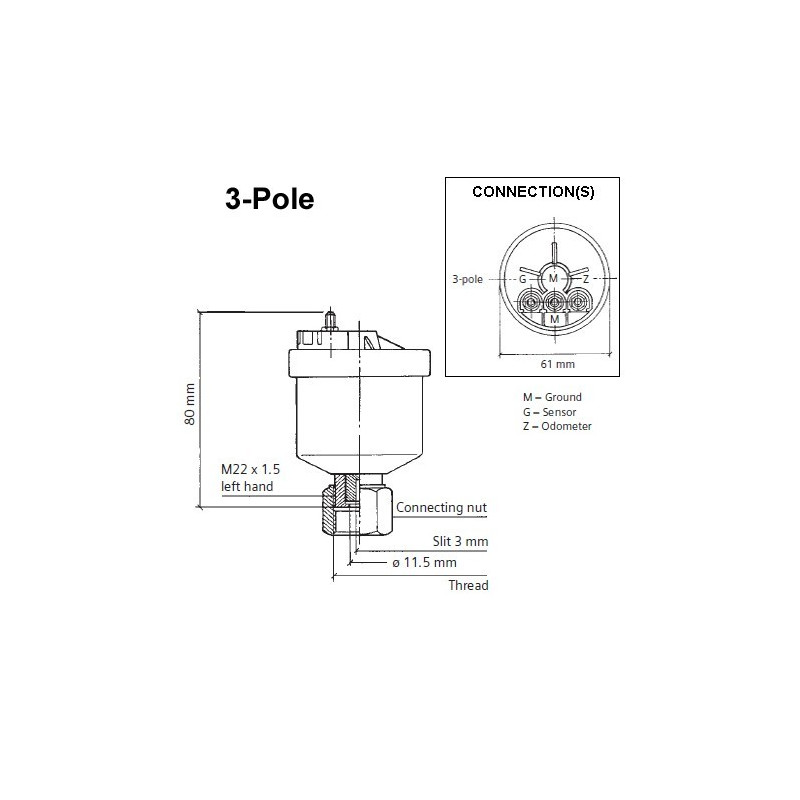

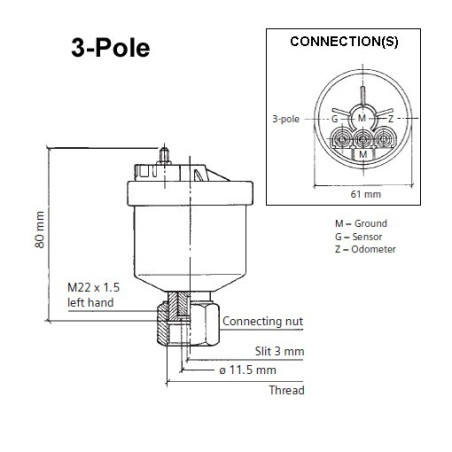

Image: 3-pole

Retail packaging:

  • VDO 340-807-001-001C Generator speed sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
340-807-001-001C

Data sheet

Speed Measuring range
0 - 3,000 RPM
Packaging
VDO Sensor OEM bulk packaging
Application
VDO Engine control
Sensor signal
Isolated from mass
Thread
M22 x 1.5 Female
Country of origin
Czech Republic
Functionality
Generator sensors
Connector type
M4 Threaded Rod
Category
Generator sensors
Article status
Expired product
Alternate format
340 807 001 001C
340/807/1/1C

Specific References

MPN
340-807-001-001C
