VDO Generator Speed - Speed Sensor - 7/8"-18

Part-number:

VDO 340-807-001-003C

  • Sensor type: Generator 3,000 RPM
  • Thread: 7/8" - 18 NS-2B
  • Output: 19.3 V at 2,000 RPM
  • Output: Isolated from ground
  • Connection: 8-32UNC-2A thread 3x
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90299000
  • Ean Code: 4103590690531
  • Weight: 0.39kg
Discontinued article
Replacement article on request

Technical description Generator Speed and Speed Sensor:

VDO 340 807 001 003C Specifications:

Mechanical properties:

Thread: 7/8" - 18 NS-2B Female
Maximum speed: 3,000 RPM
Operating Temperature: -25 °C to +90 °C
Sensor length overall without thread: 80 mm
Maximum drive torque: 500 pcm
Degree of protection: IP54 DIN 40050

Electrical properties:

Supply voltage: Independent
Output signal: Isolated from mass
Connection: 3-pole 8-32UNC-2A Thread
No-load output voltage: 19.3 V at 2,000 RPM no load
Output voltage tolerance: 1% Nominal at 20 °C

Datasheets - Tables:

2010 EU VDO Sensors Catalog Download Page 60 - 61

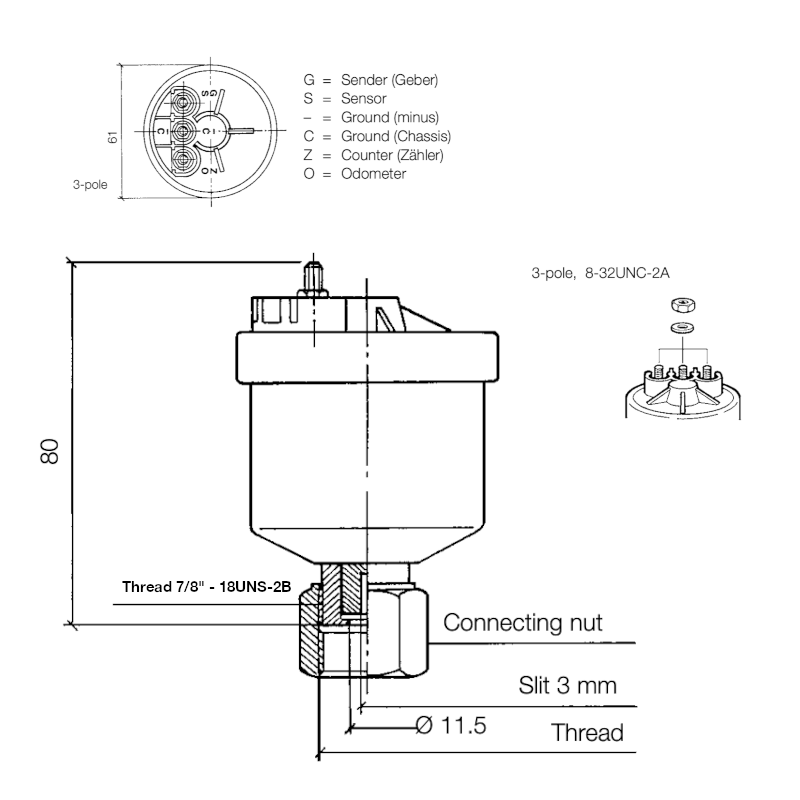

Image: 3-pole

Retail packaging:

  • VDO 340-807-001-003C Generator Speed - Speed Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
340-807-001-003C

Data sheet

Speed Measuring range
0 - 3,000 RPM
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor signal
Isolated from mass
Thread
7/8" - 18 NS-2B Female
Country of origin
Czech Republic
Functionality
Generator sensors
Category
Generator sensors
Article status
Expired product
Alternate format
340 807 001 003C
340/807/1/3C

Specific References

EAN13
4103590690531
MPN
340-807-001-003C
