VDO Generator speed sensor - M22
Part-number:
VDO 340-808-001-002G
- Sensor type: Generator 3,000 RPM
- Thread: M22 x 1.5
- Output: 19.3 V at 2,000 RPM
- Output: Isolated from ground
- Connection: M4 thread 2x
Logistical information:
- HS Code: 90299000
- Ean Code: 4103590949486
- Weight: 0.40kg
Technical description Generator Speed and Speed Sensor:
VDO 340 808 001 002G Specifications:
Mechanical properties:
| Thread: | M22 x 1.5 Female |
| Maximum speed: | 3,000 RPM |
| Operating Temperature: | -25 °C to +90 °C |
| Sensor length overall without thread: | 80 mm |
| Maximum drive torque: | 500 pcm |
| Degree of protection: | IP54 DIN 40050 |
Electrical properties:
| Supply voltage: | Independent |
| Output signal: | Isolated from mass |
| Connection: | 2-pole M4 Thread |
| No-load output voltage: | 19.3 V at 2,000 RPM no load |
| Output voltage tolerance: | 1% Nominal at 20 °C |
Datasheets - Tables:
| 2010 EU VDO Sensors Catalog Download | Page 60 - 61 |

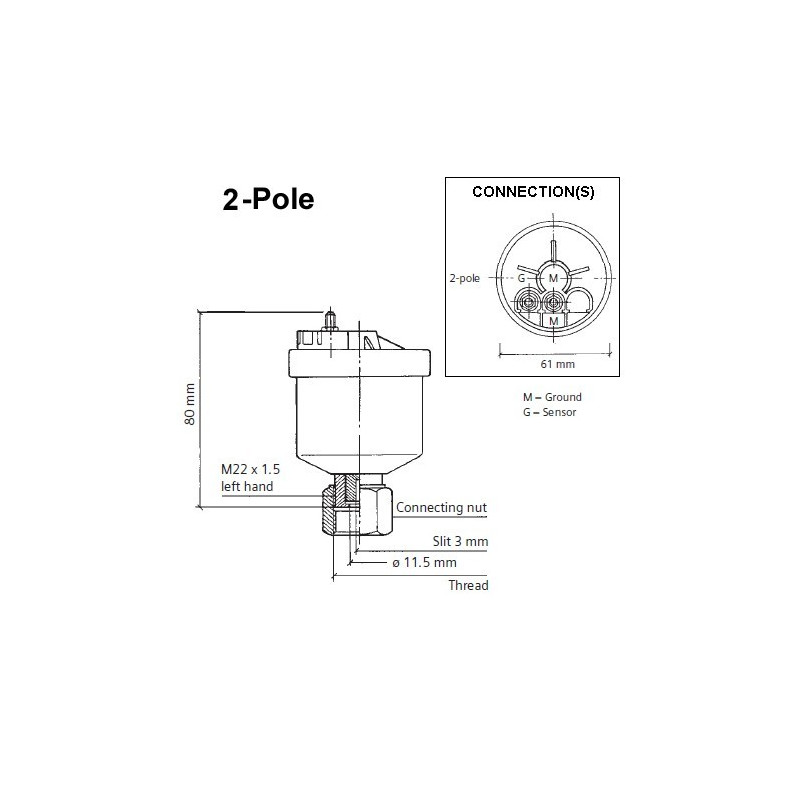

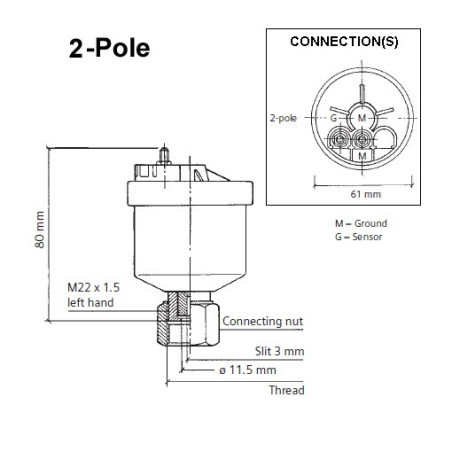

| Image: | 2-pole |
VDO OEM Sensor 340-808-001-002G replaces manufacturer number
| DEUTZ Part Number: | 01171283 |
| EVOBUS Part Number: | 8.743.083.000.0 |
| JOHN DEERE Part number: | AZ12546 |
| KHD Part Number: | 01171283 |
| MERCEDES-BENZ Part number: | B8 5200 0654395 |
| Volvo Part Number: | 6233384 |
Retail packaging:
- VDO 340-808-001-002G Generator Speed - Speed Sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
340-808-001-002G
Data sheet
- Speed Measuring range
- 0 - 3,000 RPM
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Sensor signal
- Isolated from mass
- Thread
- M22 x 1.5 Female
- Country of origin
- Czech Republic
- Functionality
- Generator sensors
- Connector type
- M4 Threaded Rod
- Category
- Generator sensors
- Article status
- Expired product
- Alternate format
- 340 808 001 002G
340/808/1/2G
Specific References
- EAN13
- 4103590949486
- MPN
- 340-808-001-002G
