VDO Generator Speed - Speed Sensor - 7/8"-18

Part-number:

VDO 340-808-001-004G

  • Sensor type: Generator 3,000 RPM
  • Thread: 7/8" - 18 NS-2A
  • Output: 19.3 V at 2,000 RPM
  • Output: Isolated from ground
  • Connection: M4 thread 2x
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90299000
  • Ean Code: 4103590949493
  • Weight: 0.40kg
Discontinued article
Replacement article on request

Technical description Generator Speed and Speed Sensor:

VDO 340 808 001 004G Specifications:

Mechanical properties:

Thread: 7/8" - 18 NS-2A Female
Maximum speed: 3,000 RPM
Operating Temperature: -25 °C to +90 °C
Sensor length overall without thread: 80 mm
Maximum drive torque: 500 pcm
Degree of protection: IP54 DIN 40050

Electrical properties:

Supply voltage: Independent
Output signal: Isolated from mass
Connection: 2-pole M4 Thread
No-load output voltage: 19.3 V at 2,000 RPM no load
Output voltage tolerance: 1% Nominal at 20 °C

Datasheets - Tables:

2010 EU VDO Sensors Catalog Download Page 60 - 61

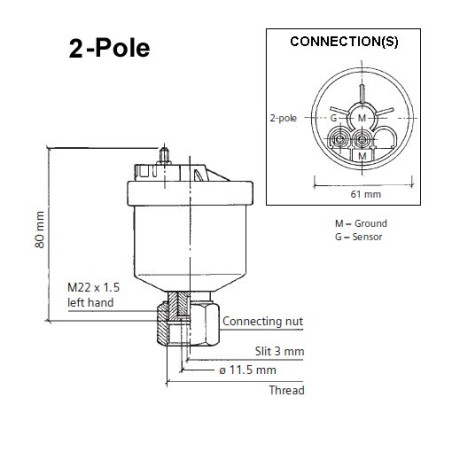

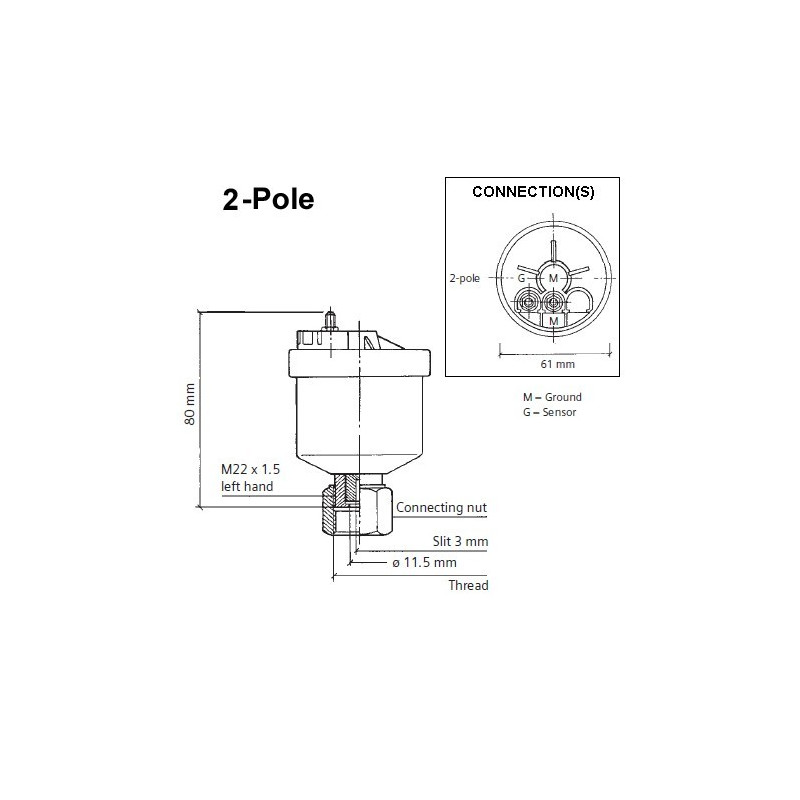

Image: 2-pole

Retail packaging:

  • VDO 340-808-001-004G Generator Speed - Speed Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
340-808-001-004G

Data sheet

Speed Measuring range
0 - 3,000 RPM
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor signal
Isolated from mass
Thread
7/8" - 18 NS-2A Female
Country of origin
Czech Republic
Functionality
Generator sensors
Connector type
M4 Threaded Rod
Category
Generator sensors
Article status
Expired product
Alternate format
340 808 001 004G
340/808/1/4G

Specific References

EAN13
4103590949493
MPN
340-808-001-004G
