340-804-005-013A VDO Induction speed sensor - M18
search
  • 340-804-005-013A VDO Induction speed sensor - M18

VDO Inductive tacho - speed sender - M18

€167.77 (tax incl.)

€138.65 (VAT Excl.)

Part-number:

VDO 340-804-005-013A

  • Sender type: Inductive - 250Hz
  • Thread: M18 x 1.5
  • Resistance: 1,050 ± 100 Ohm
  • Sensor signal: 2-pole insulated return
  • Connector: Kostal 2-pole pin 4mm
  • With sealing washer, captive
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590690425
  • Weight: 0.11kg
Quantity

Description Inductive speedo and tacho sender:

VDO 340 804 005 013A Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Frequency: 250 Hz = 15,000 Pulses per minute
Operating temperature: -30°C to +140°C
Sender length overall (L4): 107.9 mm
Sender length (L1): 18 mm
Sender length (L2): 71.4 mm
Sender length (L3): 72.63 - 72.20 mm

Electrical features:

Operating voltage: Independent
Signal output: Insulated return
Connector: Connector 2-pole Kostal M24 x 1 Pin diameter 4 mm
Internal resistance: 1,050 Ohm ± 100 Ohm

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 64 - 65

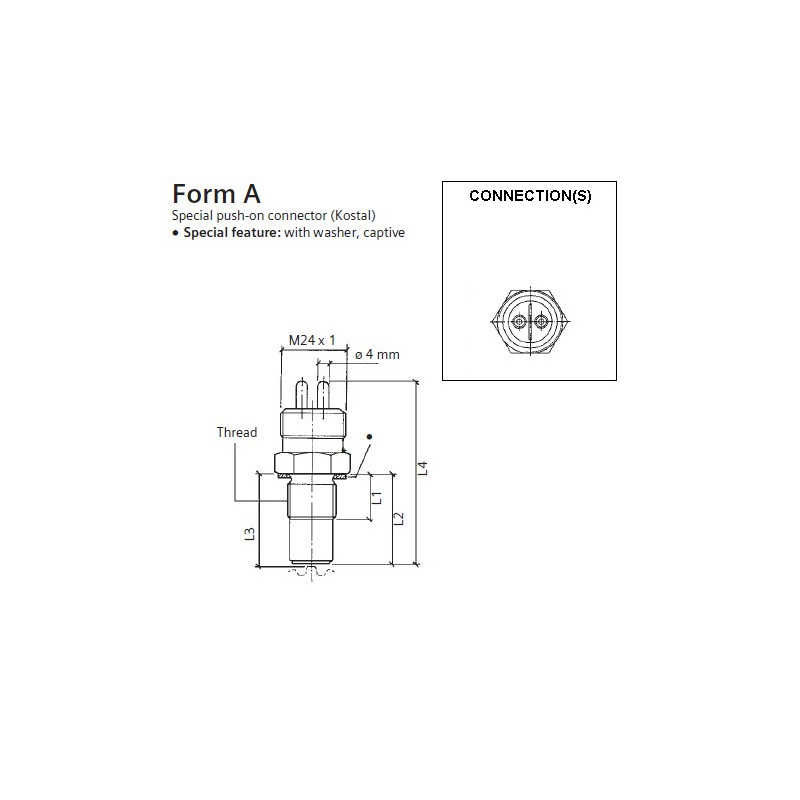

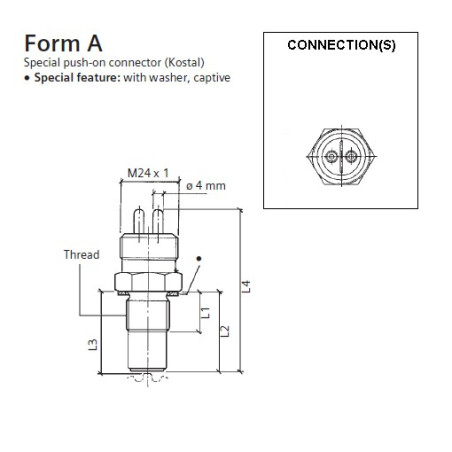

Image: A

VDO Sender 340-804-005-013A replaces manufacturer OEM number:

MERCEDES-BENZ Part number: 006 542 69 17
ZF Part number: 0501 309 245

Retail package:

  • VDO 340-804-005-013A Inductive tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-804-005-013A

Data sheet

Measuring range
0 - 250 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Induction
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Induction sensors
Connector type
2-pole Kostal M24
Category
Induction sensors
Article status
Available to order
Alternate format
340 804 005 013A
340/804/5/13A
L1 Length
18 mm
L2 Length
71.4 mm
L3 Length
72.63 – 72.20 mm
L4 Length
107.9 mm

Specific References

EAN13
4103590690425
MPN
340-804-005-013A
