VDO Induction speed - speed sensor - M18

Part-number:

VDO 340-804-005-015C

  • Sensor type: Inductive - 250Hz
  • Thread: M18 x 1.5
  • Resistance: 1,050 ± 100 Ohm
  • Output: Isolated from ground
  • Connection: Kostal 2-pole pin 4mm
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590949448
  • Weight: 0.13kg
Discontinued article
Replacement article on request

Technical description Induction Speed and Speed Sensor:

VDO 340 804 005 015C Specifications:

Mechanical properties:

Thread: M18 x 1.5
Frequency: 250 Hz = 15,000 Pulses per minute
Operating Temperature: -30°C to +140°C
Sensor length overall (L4): 135.6 mm
Sensor length (L1): 18 mm
Sensor length (L2): 99.1 mm
Sensor length (L3): 101.15 - 100.55 mm

Electrical properties:

Supply voltage: Independent
Output signal: Isolated from mass
Connection: Connector 2-pole Kostal M24 x 1 Pin diameter 4 mm
Internal resistance: 1,050 Ohm ± 100 Ohm

Datasheets - Tables:

2010 EU VDO Sensors Catalog Download Page 64 - 65

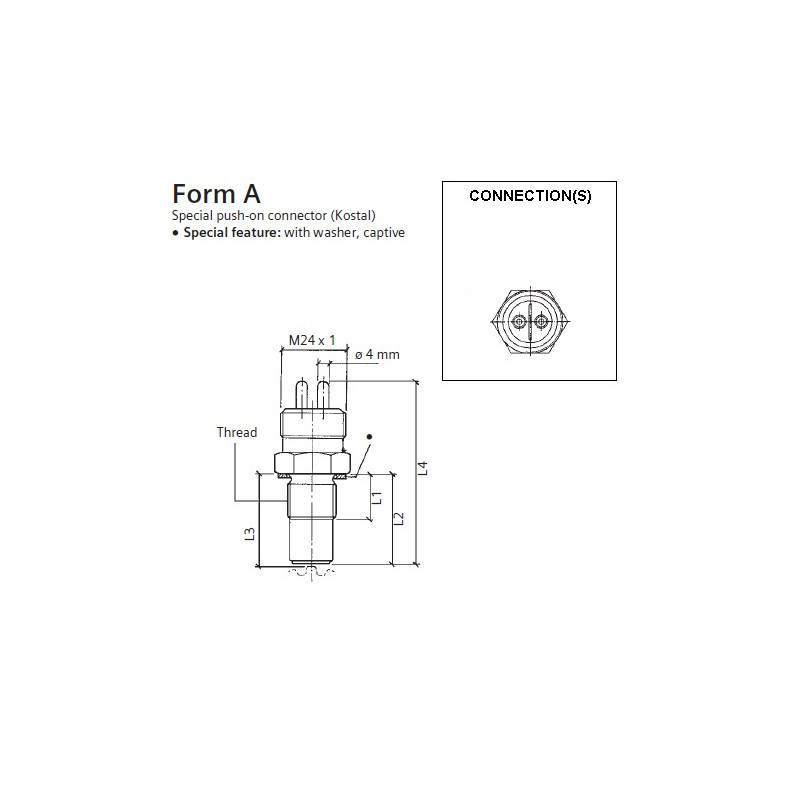

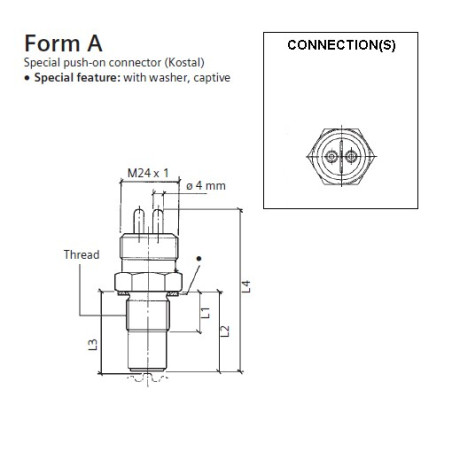

Image: A

VDO OEM Sensor 340-804-005-015C replaces manufacturer number

MERCEDES-BENZ Part number: 006 542 71 17
Volvo Part Number: 11039662
ZF Part Number: 0501 309 190

Retail packaging:

  • VDO 340-804-005-015C Induction speed sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
340-804-005-015C

Data sheet

Measuring range
0 - 250 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Induction
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Induction sensors
Connector type
2-pole Kostal M24
Category
Induction sensors
Article status
Discontinued product
Alternate format
340 804 005 015C
340/804/5/15C
L1 Length
18 mm
L2 Length
99.1 mm
L3 Length
101.15 –100.55 mm
L4 Length
135.6 mm

Specific References

EAN13
4103590949448
MPN
340-804-005-015C
