VDO Induction speed - speed sensor - M18
€53.14
(tax incl.)
€43.92 (VAT Excl.)
Part-number:
VDO 340-804-005-028C
- Sensor type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1,050 ± 100 Ohm
- Output: Isolated from ground
- Connection: Kostal 2-pole pin 4mm
Logistical information:
- HS Code: 90299000
- Weight: 0.15kg
Technical description Induction Speed and Speed Sensor:
VDO 340 804 005 028C Specifications:
Mechanical properties:
| Thread: | M18 x 1.5 |
| Frequency: | 250 Hz = 15,000 Pulses per minute |
| Operating Temperature: | -30°C to +140°C |

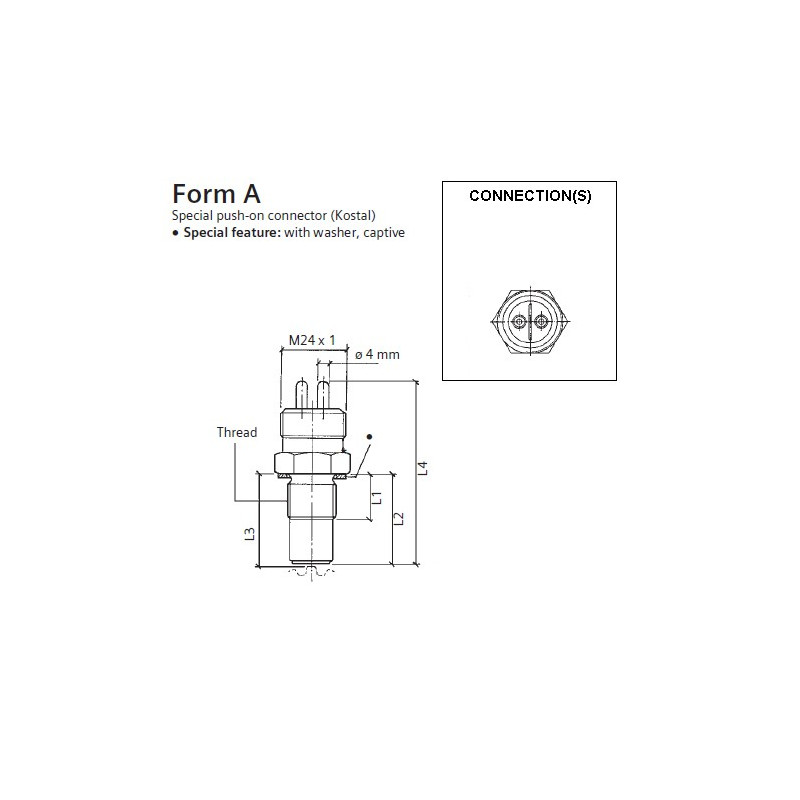

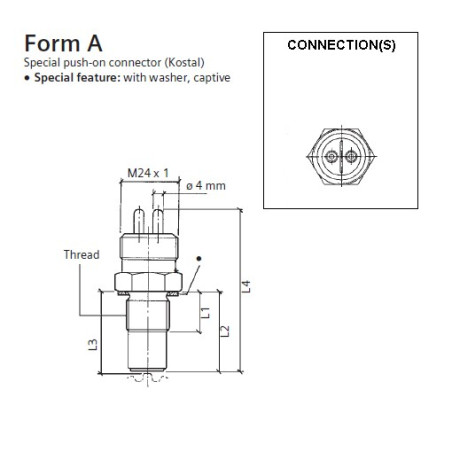

| Sensor length overall (L4): | 99.9 mm |
| Sensor length (L1): | 24.9 mm |
| Sensor length (L2): | 63.4 mm |
| Sensor length (L3): | 64.55 - 64.20 mm |
Electrical properties:
| Supply voltage: | Independent |
| Output signal: | Isolated from mass |
| Connection: | Connector 2-pole Kostal M24 x 1 Pin diameter 4 mm |
| Internal resistance: | 1,050 Ohm ± 100 Ohm |
Datasheets - Tables:
| 2010 EU VDO Sensors Catalog Download | Page 64 - 65 |
| Image: | A |
VDO OEM Sensor 340-804-005-028C replaces manufacturer number
| ZF Part Number: | 0501 313 968 |
Retail packaging:
- VDO 340-804-005-028C Induction speed sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
340-804-005-028C
Data sheet
- Measuring range
- 0 - 250 Hz
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Sensor type
- RPM Induction
- Sensor signal
- Isolated from mass
- Thread
- M18 x 1.5 Male
- Functionality
- Induction sensors
- Connector type
- 2-pole Kostal M24
- Category
- Induction sensors
- Article status
- Available to order
- Alternate format
- 340 804 005 028C
340/804/5/28C
Specific References
- MPN
- 340-804-005-028C
VDO 340-804-005-028C
- Sensor type: Inductive - 250Hz
- Thread: M18 x 1.5
- Resistance: 1,050 ± 100 Ohm
- Output: Isolated from ground
- Connection: Kostal 2-pole pin 4mm
