340-804-007-013C VDO Induction speed - speed sensor - M18
search
  • 340-804-007-013C VDO Induction speed - speed sensor - M18

VDO Inductive tacho - speed sender - M18

€106.17 (tax incl.)

€87.74 (VAT Excl.)

Part-number:

VDO 340-804-007-013C

  • Sender type: Inductive - 250Hz
  • Thread: M18 x 1.5
  • Resistance: 1,050 ± 100 Ohm
  • Sensor signal: 2-pole insulated return
  • Connector: Blade 6.3x0.8mm
  • With collar
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90318080
  • Ean Code: 4103590949479
  • Weight: 0.17kg
Quantity

Description Inductive speedo and tacho sender:

VDO 340 804 007 013C Full technical specifications:

Mechanical features:

Thread: M18 x 1.5 Male
Frequency: 250 Hz = 15,000 Pulses per minute
Operating temperature: -25°C to +140°C
Sender length overall (L4): 70 mm
Sender length (L1): 27.5 mm
Sender length (L2): 28.5 mm
Sender length (L3): 29.6 ± 0.1 mm

Electrical features:

Operating voltage: Independent
Signal output: Insulated return
Connector: Blade 2 x 6.3 x 0.8 mm
Internal resistance: 1,050 Ohm ± 100 Ohm

Datasheets and Tables:

2010 EU VDO Sensors Catalogue Download Page 64 - 65

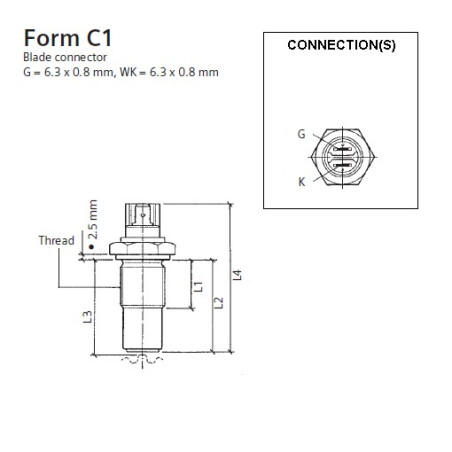

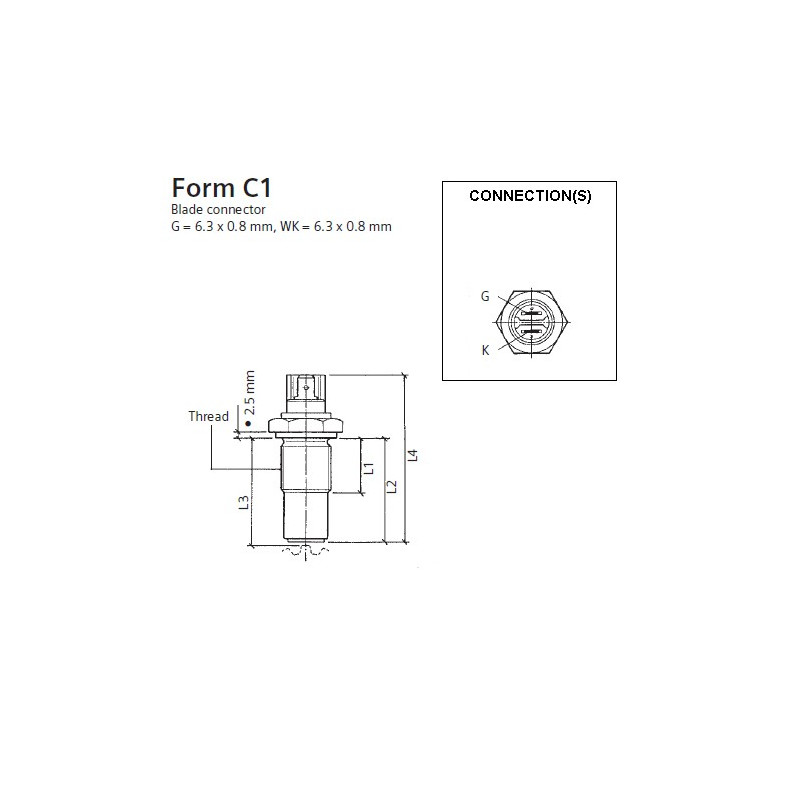

Image: C1

Retail package:

  • VDO 340-804-007-013C Inductive tacho - speedo sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
340-804-007-013C

Data sheet

Measuring range
0 - 250 Hz
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Sensor type
RPM Induction
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Country of origin
Czech Republic
Functionality
Induction sensors
Connector type
Flat plug 6.3 x 0.8 mm
Category
Induction sensors
Article status
Available to order
Alternate format
340 804 007 013C
340/804/7/13C
L1 Length
27.5 mm
L2 Length
28.5 mm
L3 Length
29.6 ± 0.1 mm
L4 Length
70 mm

Specific References

EAN13
4103590949479
MPN
340-804-007-013C
