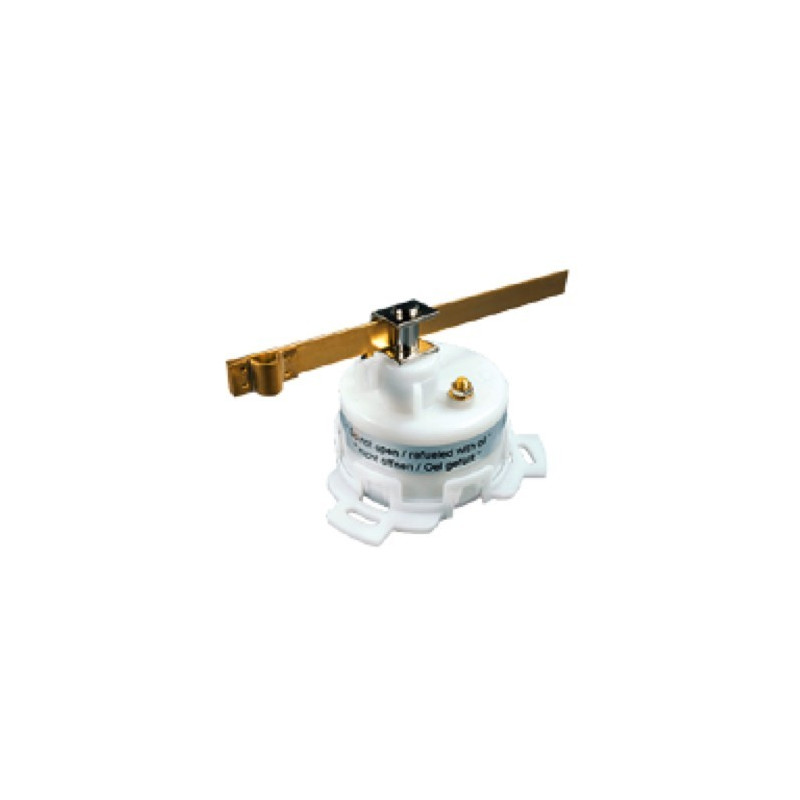

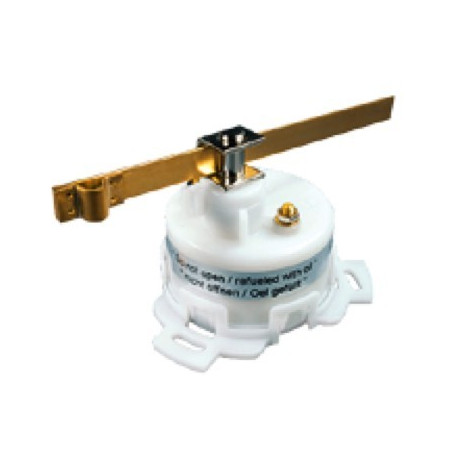

Veratron Rudder position sensor for 2 instruments
Part-number:
Veratron 440-102-002-001D / A2C1102960001
- Measuring range: -45° to +45° rudder angle
- Resistance Rating: 1.5 - 90 Ohm - 2 Instruments
- Supply voltage: 12-24 V DC
- 2 Wire System
- Retail packaging 1 Rudder level sensor 2 instruments
Logistical information:
- HS Code: 90149000
- Weight: 0.50kg
Retail packaging:
- Veratron 440 102 002 001D Rudder Actuator 2 Instruments
- Veratron Sensors are - unless otherwise stated - supplied without connection material
440-102-002-001D
Data sheet
- Measuring range
- 45° - 0 - 45°
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Navigation
- Signal analog
- 1.5 - 90 Ohms
- Sensor signal
- Isolated from mass
- Functionality
- Rudder level sensors
- Communication
- Analogue
- Category
- Navigation sensors
- Article status
- Expired product
Specific References
- MPN
- 440-102-002-001D
