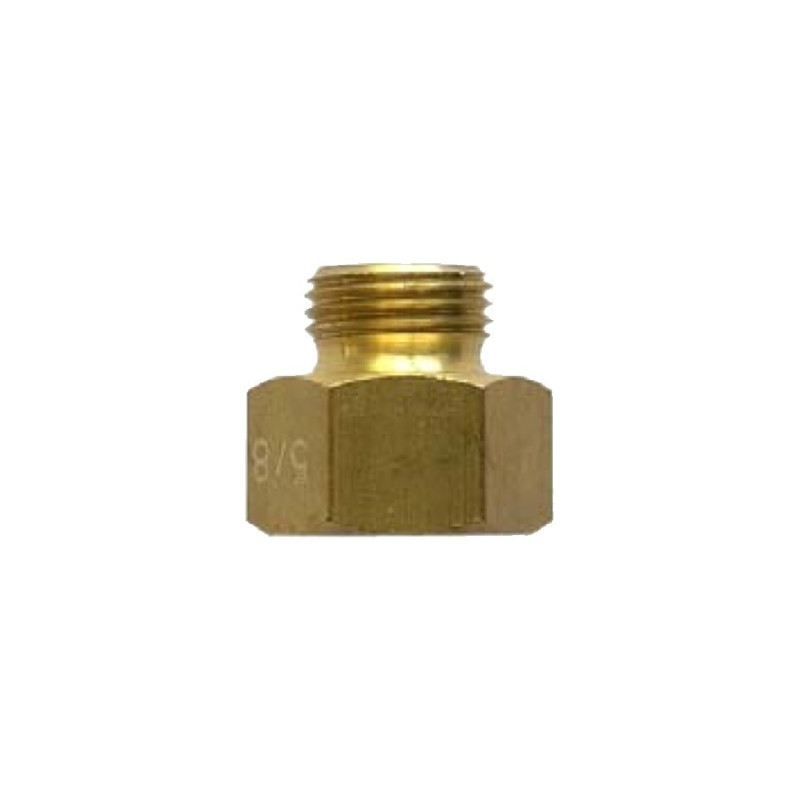

Sensor adapter M14 x 1.5 Female thread - M18 x 1.5 Male thread
€10.83
(tax incl.)
€8.95 (VAT Excl.)
Part-number:
MKP-6640103064
- 8539914018
- M14 x 1.5 Female Thread (Sensor)
- M18 x 1.5 Male thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Non-standard sizes on request
Logistical information:
- Weight: 0.50kg
Description Sensor threaded adapter:
These adapters are used when there are different threads between the sensor and the motor.
MKP-6640103064 Transition nipple
Mechanical properties:
| For temperature and pressure sensors with: | M14 x 1.5 External Thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Internal thread for sensor connection: | M14 x 1.5 |
| External thread for motor connection adapter: | M18 x 1.5 |
Retail packaging:
- MKP-6640103064 Sensor Threaded Adapter
- Other thread sizes and numbers on request
MKP-6640103064
Data sheet
- Packaging
- Sensor adapter retail packaging
- Series
- Sensor thread adapters
- Category
- Sensor adapters
- Article status
- Available to order
- Adapter male thread (Motor)
- M18 x 1.5
- Adapter female thread (Sensor)
- M14 x 1.5
Specific References
- MPN
- MKP-6640103064
MKP-6640103064
- 8539914018
- M14 x 1.5 Female Thread (Sensor)
- M18 x 1.5 Male thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Non-standard sizes on request
