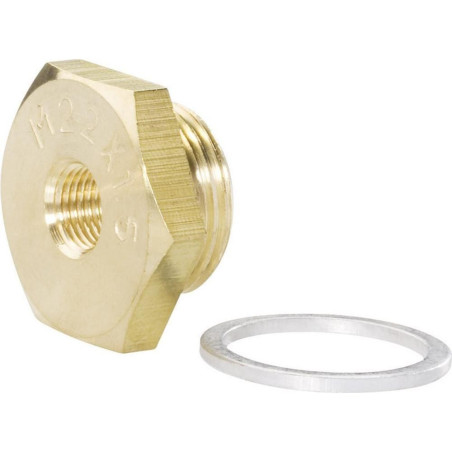

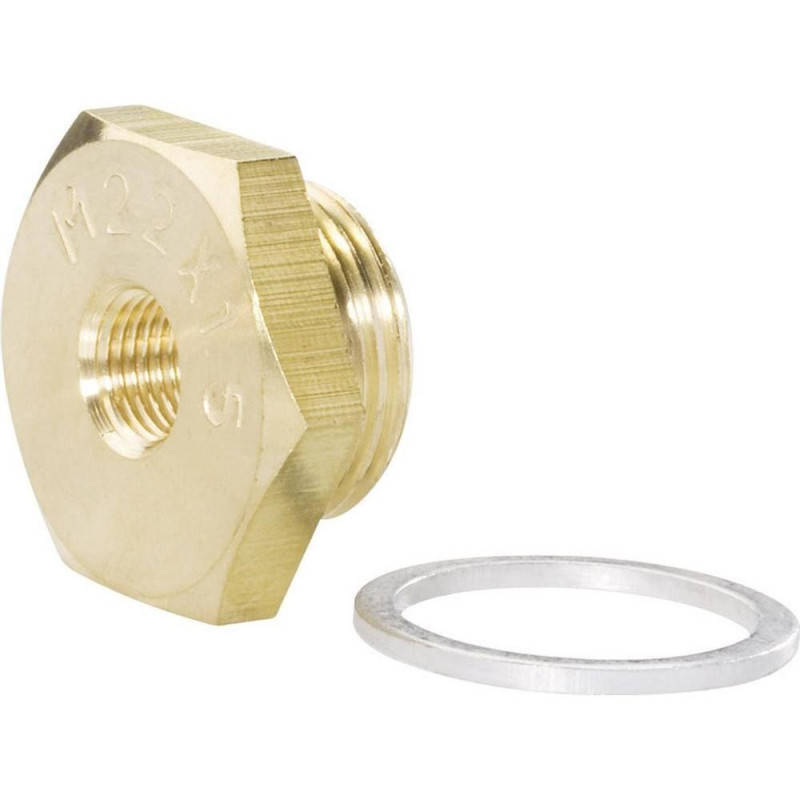

Sensor adapter 1/8" - 27 NPT Female thread - M22 x 1.5 Male thread
€18.09
(tax incl.)
€14.95 (VAT Excl.)
Part-number:
EQ-842222
- 1/8" - 27 NPT Internal thread (sensor)
- M22 x 1.5 External thread (engine)
- Material: Brass
- Maximum torque: 7 Nm
Logistical information:
- Weight: 0.80kg
Description sensor thread adapter:
These adapters are used when there is a different thread between the sensor and the engine.
EQ9861-18N-22M Sender adapter
Mechanical features:
| For temperature and pressure senders with: | 1/8" - 27 NPT External thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Adapter internal thread for sensor connection: | 1/8" - 27 NPT |
| Adapter external thread for engine connection: | M22 x 1.5 |
Retail package:
- EQ9861-18N-22M Sensor thread adapter
- Other thread sizes and quantations on request
EQ-842222
Data sheet
- Packaging
- Sensor adapter retail packaging
- Series
- Sensor thread adapters
- Category
- Sensor adapters
- Article status
- Available to order
- Adapter male thread (Motor)
- M22 x 1.5
- Adapter female thread (Sensor)
- 1/8" - 27 NPT(F)
Specific References
- MPN
- EQ-842222
EQ-842222
- 1/8" - 27 NPT Internal thread (sensor)
- M22 x 1.5 External thread (engine)
- Material: Brass
- Maximum torque: 7 Nm
