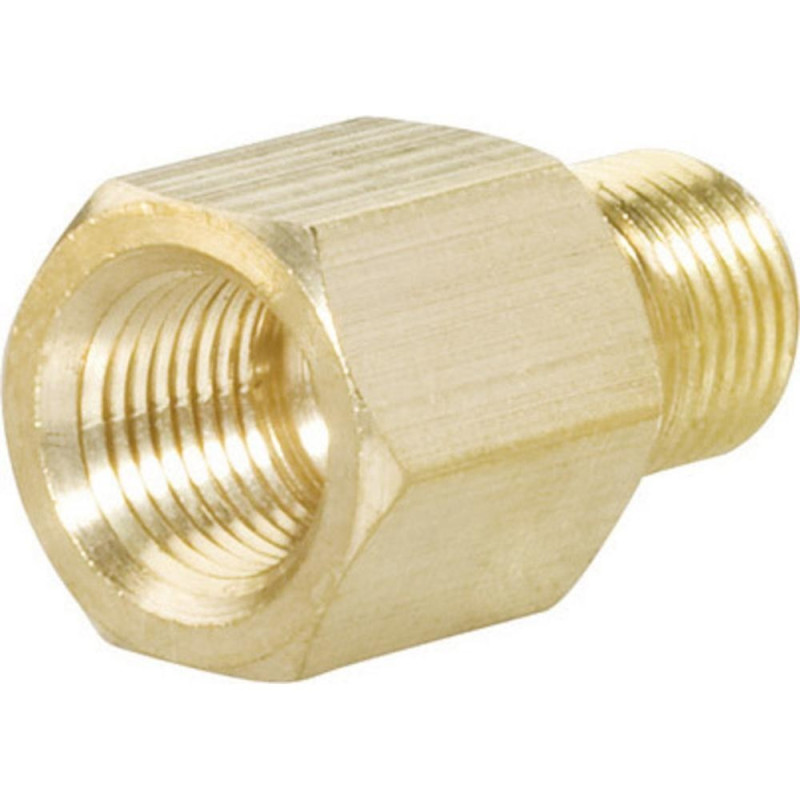

Sensor adapter 1/8" - 27 NPT Female thread - R1/8" - 28 BSP External thread
Part-number:
EQ9861-18N-18R
- 1/8" - 27 NPT Female Thread (Sensor)
- R 1/8" DIN 2999 External thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Replaced by Article EQC842133
Logistical information:
- Weight: 0.50kg
Description Sensor threaded adapter:
These adapters are used when there are different threads between the sensor and the motor.
EQ9861-18N-18R Adapter nipple
Mechanical properties:
| For temperature and pressure sensors with: | 1/8" - 27 NPT External Thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Internal thread for sensor connection: | 1/8" - 27 NPT |
| External thread for motor connection adapter: | R 1/8" DIN 2999 |
Retail packaging:
- EQ9861-18N-18R Sensor Threaded Adapter
- Other thread sizes and numbers on request
EQC842133
Data sheet
- Packaging
- Sensor adapter retail packaging
- Series
- Sensor thread adapters
- Category
- Sensor adapters
- Article status
- Expired article
- Adapter male thread (Motor)
- 1/8"-28 BSP
- Adapter female thread (Sensor)
- 1/8" - 27 NPT(F)
Specific References
- MPN
- EQC842133
EQ9861-18N-18R
- 1/8" - 27 NPT Female Thread (Sensor)
- R 1/8" DIN 2999 External thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Replaced by Article EQC842133
