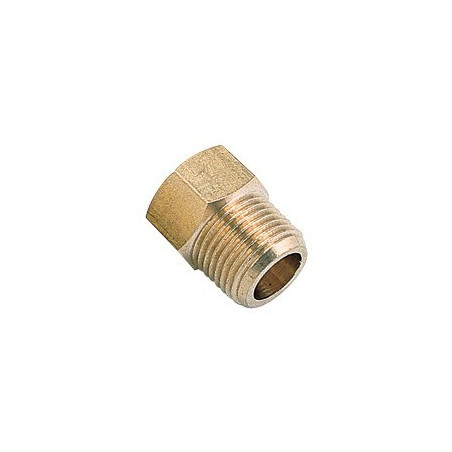

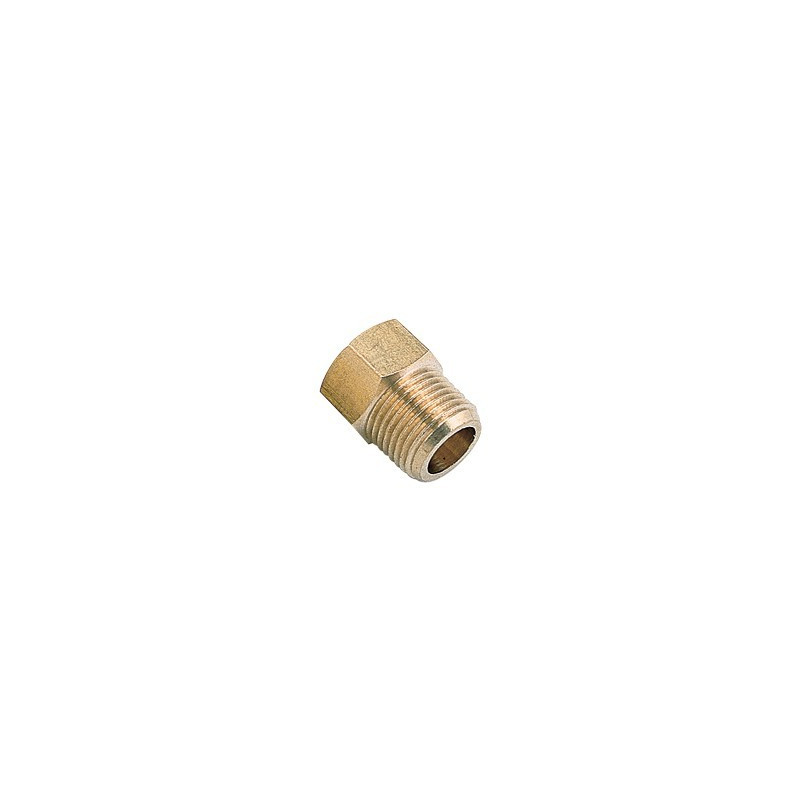

Sensor adapter 5/8" - 18 UNF Female thread - M14 x 1.5 Male thread
Part-number:
EQ9853-58N-14M
- 5/8" - 18 UNF Female Thread (Sensor)
- M14 x 1.5 Male Thread (Motor)
- Material: Brass
- Maximum torque: 7 Nm
- Replaced by article EQT9853-Kit
Logistical information:
- Weight: 0.50kg
Description Sensor threaded adapter:
These adapters are used when there are different threads between the sensor and the motor.
EQ9853-58N-14M Reducer nipple
Mechanical properties:
| For temperature and pressure sensors with: | 5/8" - 18 UNF External Thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Internal thread for sensor connection: | 5/8" - 18 UNF |
| External thread for motor connection adapter: | M14 x 1.5 |
Retail packaging:
- EQ9853-58N-14M Sensor Threaded Adapter
- Other thread sizes and numbers on request
EQ9853-58N-14M
Data sheet
- Packaging
- Sensor adapter retail packaging
- Series
- Sensor thread adapters
- Category
- Sensor adapters
- Article status
- Expired product
- Adapter male thread (Motor)
- M14 x 1.5
- Adapter female thread (Sensor)
- 5/8" - 18 UNF
Specific References
- MPN
- EQ9853-58N-14M
EQ9853-58N-14M
- 5/8" - 18 UNF Female Thread (Sensor)
- M14 x 1.5 Male Thread (Motor)
- Material: Brass
- Maximum torque: 7 Nm
- Replaced by article EQT9853-Kit
