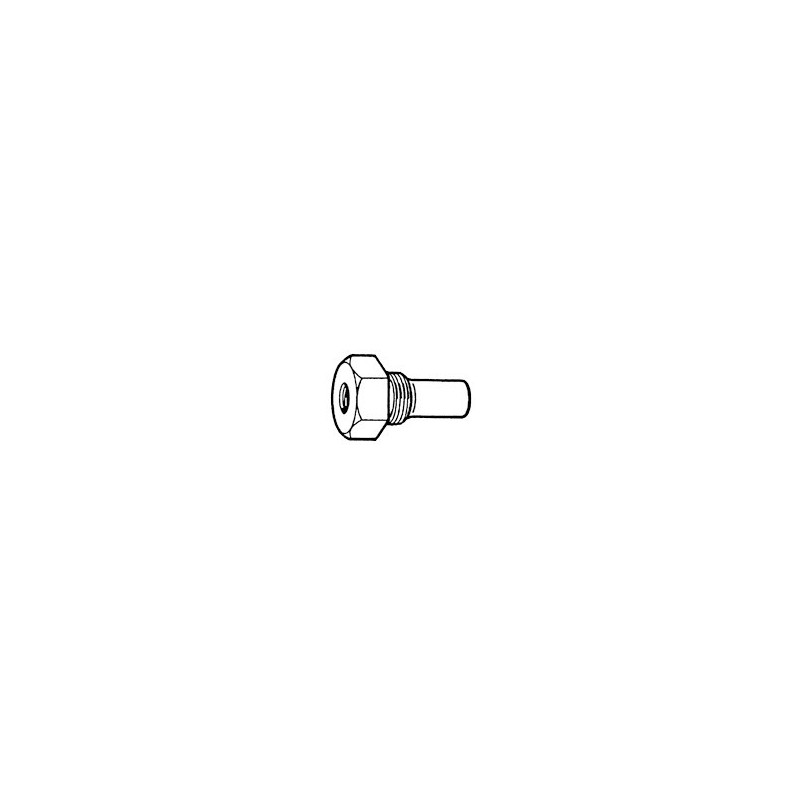

Mechanical temperature gauge sensor adapter M10 x 1 to 1/8 - 27 NPTF
Part-number:
VDO 800-005-036G
- M10 x 1 Female thread (sensor)
- 1/8 - 27 NPTF Male thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Non-standard sizes on request
Logistical information:
- HS Code: 73269094
- Weight: 0.01kg
Description Sensor threaded adapter:
These adapters are used when there are different threads between the sensor and the motor.
VDO 800-005-036G Reducer nipple
Mechanical properties:
| For temperature sensors with: | M10 x 1 External thread |
| Material | Brass |
| Maximum torque: | 7 Nm |
| Internal thread for sensor connection: | M10 x 1 |
| External thread for motor connection adapter: | 1/8 - 27 NPTF |
Retail packaging:
- VDO 800-005-036G Sensor Thread Adapter
- Other thread sizes and numbers on request
800-005-036G
Data sheet
- Packaging
- VDO Parts retail packaging
- Series
- VDO Sensor Adapters
- Country of origin
- India
- Category
- Sensor adapters
- Article status
- Expired product
- Adapter female thread (Sensor)
- M10 x 1
Specific References
- MPN
- 800-005-036G
VDO 800-005-036G
- M10 x 1 Female thread (sensor)
- 1/8 - 27 NPTF Male thread (motor)
- Material: Brass
- Maximum torque: 7 Nm
- Non-standard sizes on request
