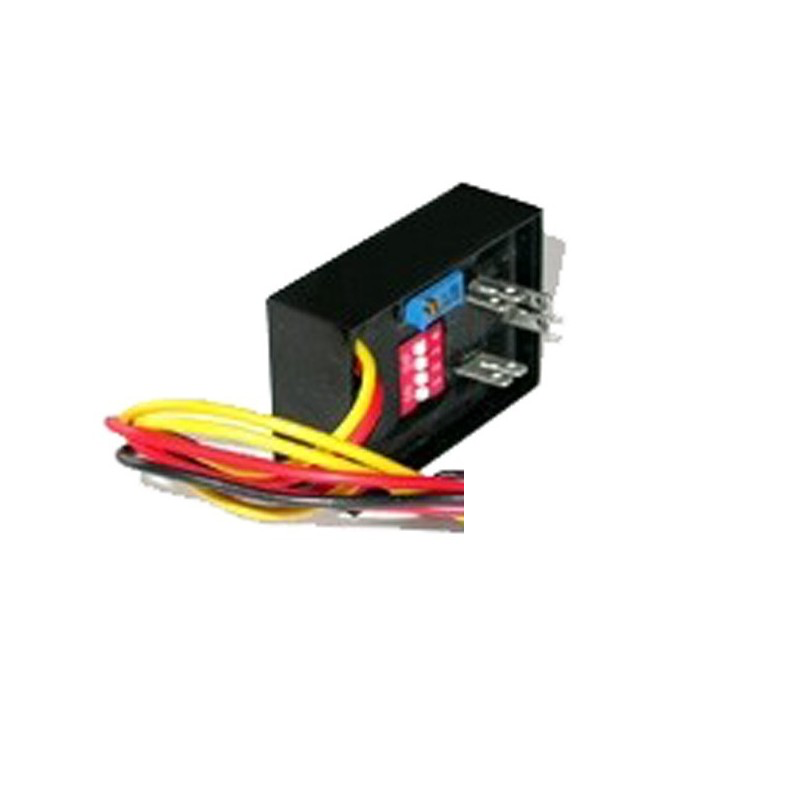

Continental VDO OceanLine Limit Value Switch - 12 Volt DC
€119.79
(tax incl.)
€99.00 (VAT Excl.)
Part-number:
X10-719-002-037
- OceanLine limit value module
- Placement between sensor and instrument
- See specifications for compatibility
- Retail Packaging 1 Limit Switch
Logistical information:
- HS Code: 90269000
- Weight: 0.26kg
Description VDO OceanLine limit value switch:
Some VDO OceanLine instruments have a built-in LED warning light. These can warn, for example, of too high a temperature or too low oil pressure. To use this function, the application of a VDO OceanLine limit value alarm switch article X10-719-002-037 is necessary. The X10-719-002-037 is compatible with the OceanLine instruments that have a resistance value as an input signal. Installation is simple. Plug the limit switch into the instrument and connect the sensor to the switch. With the help of the dip switches and the potentiometer, you can effortlessly set the correct limit value. In addition to controlling the red LED, a VDO buzzer or external control light can also be connected.
VDO X10-719-002-037 Alarm value module specifications:
Front ring features:
| Compatible with VDO OceanLine meters: | Temperature Pressure Fuel Level Trim mode Rudder position |
| Adjustments: | Stepless 0-100% |
| Settings by: | 4 x DIP Switch and Potentiometer |
| Supply voltage: | 12 - 24 V DC |
| Ambient temperature: | -20° C to +70° C |
X10-719-002-037
Data sheet
- Supply voltage
- 12 Volts DC
- Series
- VDO Universal
- Category
- Limit value switches
- Article status
- Delivery time on request
Specific References
- MPN
- X10-719-002-037
X10-719-002-037
- OceanLine limit value module
- Placement between sensor and instrument
- See specifications for compatibility
- Retail Packaging 1 Limit Switch
