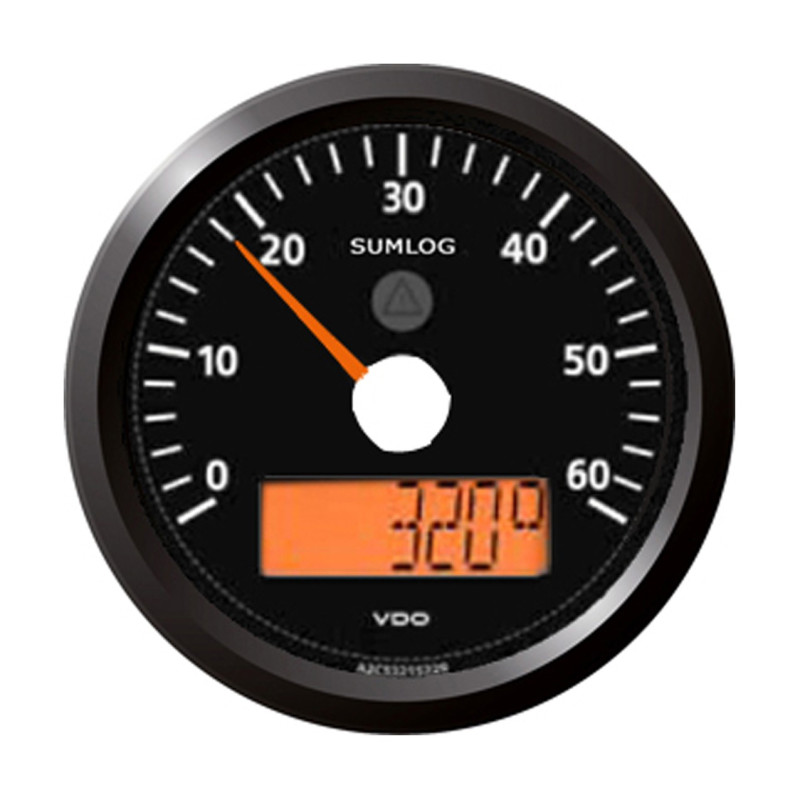

Veratron ViewLine Sumlog & Compass 60mph Black 85mm
Part-number:
Veratron A2C59514254
- Color: Black
- Panel hole diameter: 85 mm - 3 3/8"
- Measurement Range: 0 to 60 Mph
- Front: Double glazing - Anti-fog
- Retail packaging 1 Combi Sumlog - Compass
Logistical information:
- HS Code: 90148000
- Weight: 0.50kg
Functional description ViewLine Sumlog combi compass:
Veratron ViewLine A2C59514254 Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm 3 2/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Analog speed measurement range: | 0 to 60 Mph |
| Display functions (Sensor dependent): | Boat speed Distance traveled Depth Water temperature Compass Course Race over the ground GPS Time Clock Voltmeter |
| Input signal Sumlog combi compass: | NMEA 0183 Signal - GPS sensor - Hall sensor - Compass sensor |
| Suitable sensors: | X11-719-000-053 Triducer® NMEA 0183 Transom Mount Transducer X11-719-000-058 Triducer® NMEA 0183 Thru-Hull Mount Transducer |
| Measurement accuracy: | < 2.5 % of the full scale |
| Connection: | Hirschmann 8 & 14 pin MQS connector |
Power supply:
| Supply voltage: | 8.5 to 32 V DC |
| Power consumption: | < 150 mA including warning LED |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 240° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Round Black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59514254 Sumlog & Compass
- Cables with Hirschmann connector 8 & 14-pin
- Front ring round black (Interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron Sumlog & Compass Sensor PB-150
A2C59514254
Data sheet
- Speed Measurement Range
- 0 - 60 Mph
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Navigation
- Series
- Veratron ViewLine Retail
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- NMEA-0183
- Installation size
- 85 mm - 3 3/8 Inch
- Functionality
- Sumlog combi compass
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black round
- Communication
- NMEA 0183
- Category
- Navigation instruments
- Article status
- Available to order
Specific References
- MPN
- A2C59514254
