  • 333-035-014C VDO Cockpit International Tachometer 6,000 RPM 80mm 12-24V

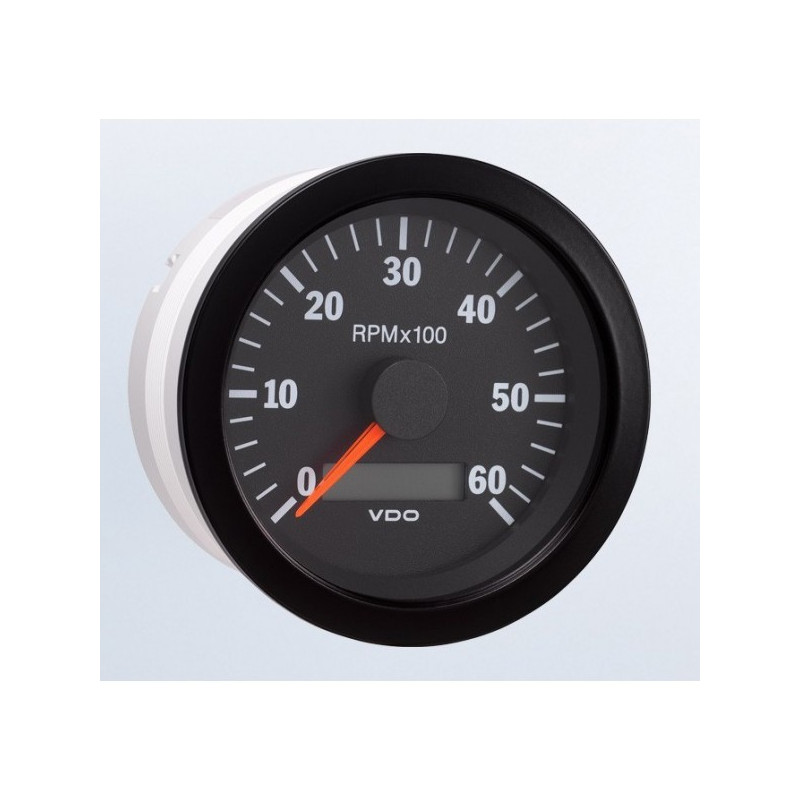

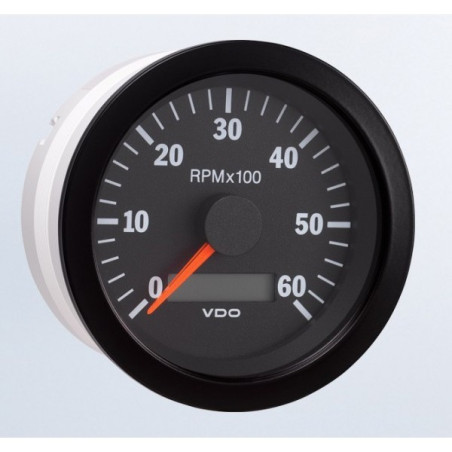

VDO Cockpit International Tachometer 6,000 RPM 80mm 12-24V

Part-number:

VDO 333-035-014C

  • Color: Black
  • Panel hole diameter: 80 mm - 3 1/8"
  • Measuring range: 0 to 6,000 RPM
  • Supply voltage: 12-24 Volts DC
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90292031
  • Ean Code: 4103590690289
  • Weight: 0.60kg
Discontinued article
Replacement article on request

Functional description Cockpit International Toerenteler:

VDO Cockpit International 333 035 014C Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 80 mm - 3 1/8 Inch and 85 mm - 3 1/3 Inch
Installation depth: 91 mm
Panel thickness with spinlock nut: Optional 0.5mm - 23mm
Panel thickness with bracket mounting: 0.5 mm - 12 mm
Flushmount mounting: None

Functional:

Speed measuring range: 0 to 6,000 RPM
Display Features: Operating hours counter
Tachometer input signal: Alternator Connection Clamp: W
Ignition connection Terminal 1
Measurement accuracy: No Statement VDO Available
Connection: 8-Pin flat plug connector 6.3 x 0.8mm
Connection scale lighting: Flat plug 6.3 x 0.8mm (4x)

Power supply:

Supply voltage: 11 - 30 Volt DC
Power consumption without shell lighting: < 100 mA
Reverse polarity protection: Yes
Short-circuit resistance: No VDO

Scale & pointer:

Graduation: 320°
Scale color: Black
Scale lighting: Floodlight Double - 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional
Pointer: Red backlight
Alarm indication: None
Programmable: Yes

Version:

Model: Cockpit International
Front glass type: Single - Anti-Glare
Standard front ring: Triangle black (Screw ring)

Degree of protection and certification:

Front protection class: IP64 (DIN 40050) - Ozone resistant - UV resistant
Back protection class IP42 (DIN 40050)
Relative humidity: No statement VDO available
Operating Temperature: -20°C to +70°C
CE Certification: Yes
DNV GL Certification: No Statement VDO Available
Vibration test 8 hours: Max: 1G - 25Hz - 2000Hz
EMC Test: According to EN 13309 and ISO 13677
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic Fire Retardant

OEM (10 pcs) packing:

  • VDO Cockpit International 333 035 014C Tachometer
  • Order connection material separately
  • Chrome-plated mounting bracket
333-035-014C

Data sheet

Speed Measuring range
0 - 6,000 RPM
Warning indication
None
Supply voltage
11 - 30 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Tacho impulse signal
Series
VDO Cockpit International
Lens
Plastic single anti-reflective
Color
Black
IP Class front
IP64 (DIN 40050)
Installation size
80 mm - 3 1/8 Inch
Functionality
Tachometers multifunction
Front ring interchangeable
Yes - Special tools required
Front ring model
Black triangle
Communication
Analogue
Category
Tachometers
Article status
Discontinued product

Specific References

EAN13
4103590690289
MPN
333-035-014C
