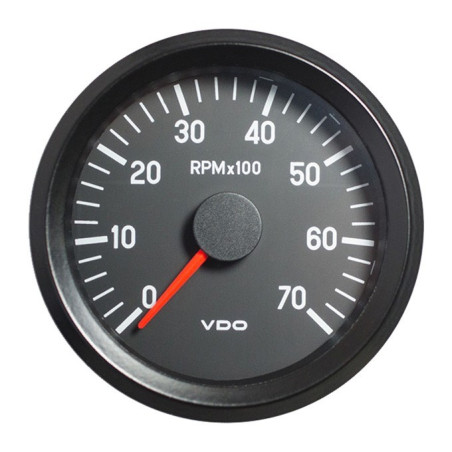

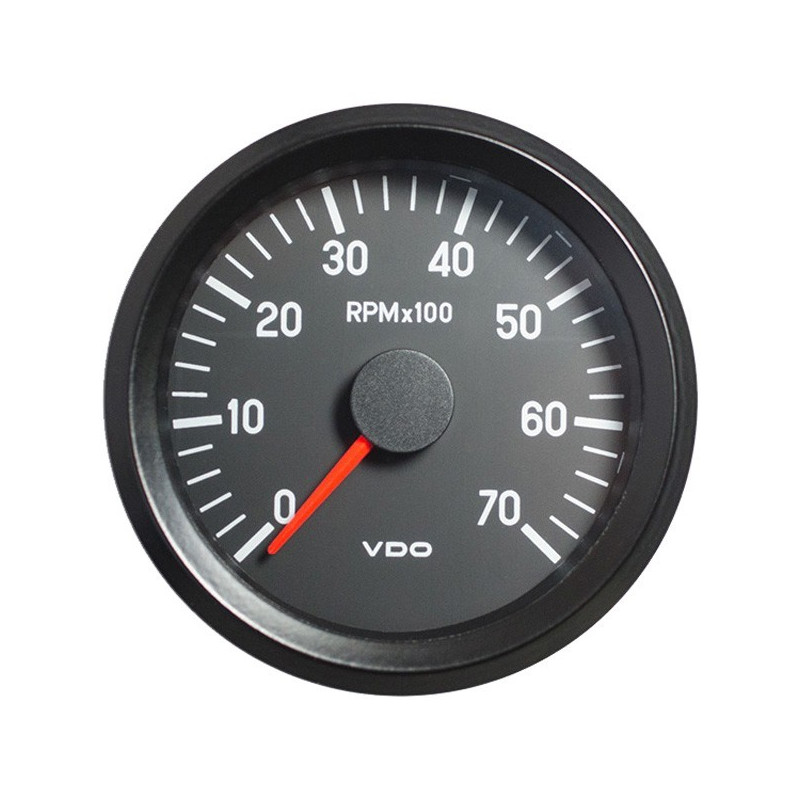

VDO Cockpit International Tachometer 7,000 RPM 80mm 12V
€240.45
(tax incl.)
€198.72 (VAT Excl.)
Part-number:
VDO 333-035-003G
- Colour: Black
- Panel hole diameter: 80 mm - 3 1/8"
- Range: 0 to 7.000 RPM
- Operating voltage: 12 Volt DC
- Retail package 1 Tachometer
Logistical information:
- HS Code: 90292031
- Ean Code: 410359065959
- Weight: 0.38kg
Description Cockpit International Toerenteler:
VDO Cockpit International 333 035 003G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 80 mm - 3 1/8 Inch and 85 mm - 3 1/3 Inch |
| Installation depth: | 91 mm |
| Locking height with Spinlock nut: | Optional 0.5 mm - 23 mm |
| Locking height with bracket: | 0.5 mm - 12 mm |
| Flushmount: | None |
Functionality:
| Analog RPM measurement range: | 0 to 7.000 RPM |
| Sensor signal tachometer: | Alternator terminal: W Ignition terminal: 1 |
| Accuracy: | Not specified by VDO |
| Connection: | 8-Pole AMP Male blade connector 6.3 x 0.8mm |
| Illumination connection: | AMP Male blade connector 6.3 x 0.8mm (4x) |
Power supply:
| Operating voltage: | 11 - 16 Volt DC |
| Current consumption without illumination: | < 100 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 320° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight Double - 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | Yes |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozone proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -20°C to +70°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 333 035 003G Tachometer
- 2 x Steel bracket zinc-plated and chromatized
- Connecting material order separately
333-035-003G
Data sheet
- Speed Measuring range
- 0 - 7,000 RPM
- Warning indication
- None
- Predecessor
- 333035003C
- Supply voltage
- 11 - 16 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Tacho impulse signal
- Series
- VDO Cockpit International
- Lens
- Plastic single anti-reflective
- Country of origin
- Switzerland
- Color
- Black
- IP Class front
- IP64 (DIN 40050)
- Installation size
- 80 mm - 3 1/8 Inch
- Functionality
- Toerental - RPM
- Front ring interchangeable
- Yes - Special tools required
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Tachometers
- Article status
- Available to order
Specific References
- EAN13
- 410359065959
- MPN
- 333-035-003G
