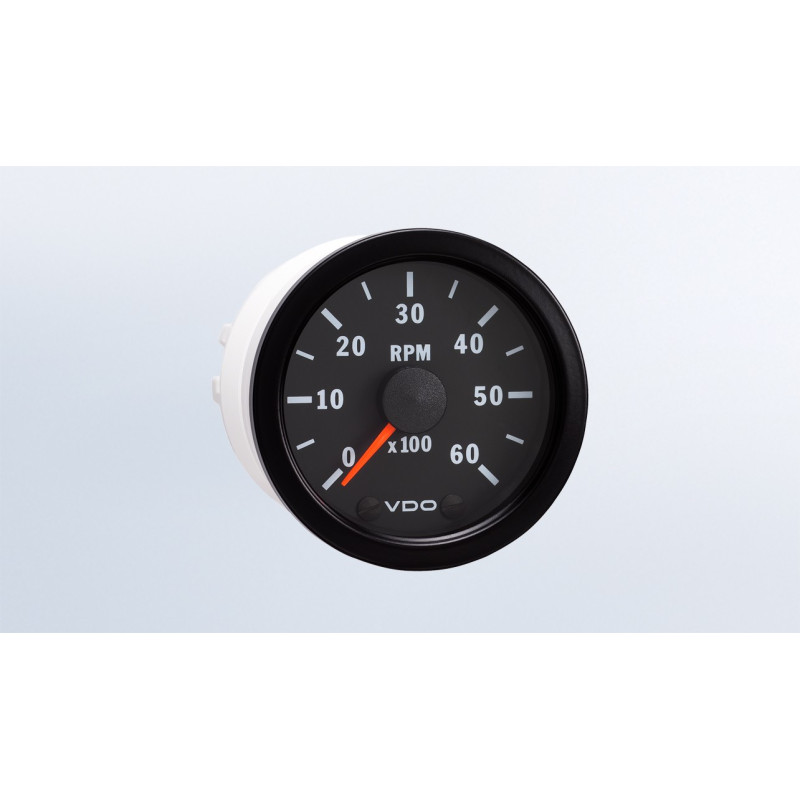

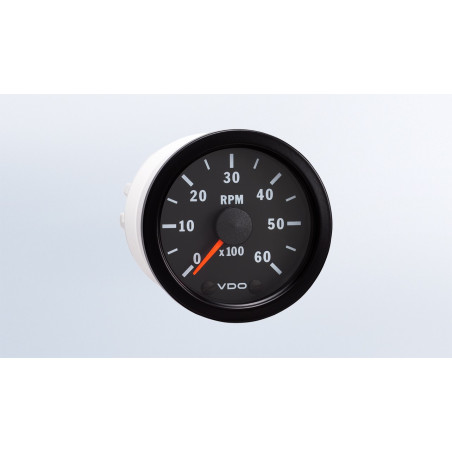

333-015-009K VDO Cockpit Vision Tachometer 6000 RPM 52mm 12V
search
  • 333-015-009K VDO Cockpit Vision Tachometer 6000 RPM 52mm 12V
  • 333-015-009K VDO Cockpit Vision Tachometer 6000 RPM 52mm 12V
  • 333-015-009K VDO Cockpit Vision Tachometer 6000 RPM 52mm 12V

VDO Cockpit Vision Tachometer 6000 RPM 52mm 12V

€234.17 (tax incl.)

€193.53 (VAT Excl.)

Part-number:

VDO 333-015-009K

  • Colour: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Range: 0 to 6.000 RPM
  • Operating voltage: 12 Volt DC
  • Retail package 1 Tachometer
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90292031
  • Ean Code: 4103590700285
  • Weight: 0.20kg
Quantity

Description Cockpit Vision Tachometer:

VDO Cockpit Vision 333 015 009K specifications:

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 91 mm
Locking height with Spinlock nut: Optional 0.5 mm - 23 mm
Locking height with bracket: 0.5 mm - 12 mm
Flushmount: None

Functionality:

Analog RPM measurement range: 0 to 6.000 RPM
Sensor signal tachometer: Alternator terminal: W
Ignition terminal: 1
Accuracy: Not specified by VDO
Connection: AMP Male blade connector 6.3 x 0.8mm (4x)
Illumination connection: AMP Male blade connector 6.3 x 0.8mm (2x)

Power supply:

Operating voltage: 11 - 16 Volt DC
Current consumption without illumination: < 100 mA
Reverse polarity protection: Yes
Short circuit protection: Not specified by VDO

Dial & Pointer:

Deflection angle: 320°
Dial colour: Black
Dial Illumination: Backlight Double 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional
Pointer: Red backlight
Warning indication: None
Programming: Yes

Design:

Model: Cockpit Vision
Lens: Single - Anti-glare
Standard bezel: Triangular black (Threaded ring)

Protection and standards:

Front protection class: IP64 (DIN 40050) - Ozone proof - UV proof
Rear protection class: IP42 (DIN 40050)
Relative humidity: Not specified by VDO
Operating temperature: -20°C to +70°C
CE standard: Yes
DNV GL Certification: Not specified by VDO
Mechanical shock 8 hours: Max: 1G - 25Hz - 2000Hz
EMC test: According to EN 13309 and ISO 13766
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic flame retardant

Retail package:

  • VDO Cockpit Vision 333 015 009K Tachometer
  • 2 x Steel bracket zinc-plated and chromatized
  • Connecting material order separately
VDO Continental I
333-015-009K

Data sheet

Speed Measuring range
0 - 6,000 RPM
Warning indication
None
Supply voltage
11 - 16 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Tacho impulse signal
Series
VDO Cockpit Vision
Lens
Plastic single anti-reflective
Country of origin
Switzerland
Color
Black
IP Class front
IP64 (DIN 40050)
Installation size
52 mm - 2 1/16 Inch
Functionality
Toerental - RPM
Front ring interchangeable
Yes - Special tools required
Front ring model
Black triangle
Communication
Analogue
Category
Tachometers
Article status
Available to order

Specific References

EAN13
4103590700285
MPN
333-015-009K
