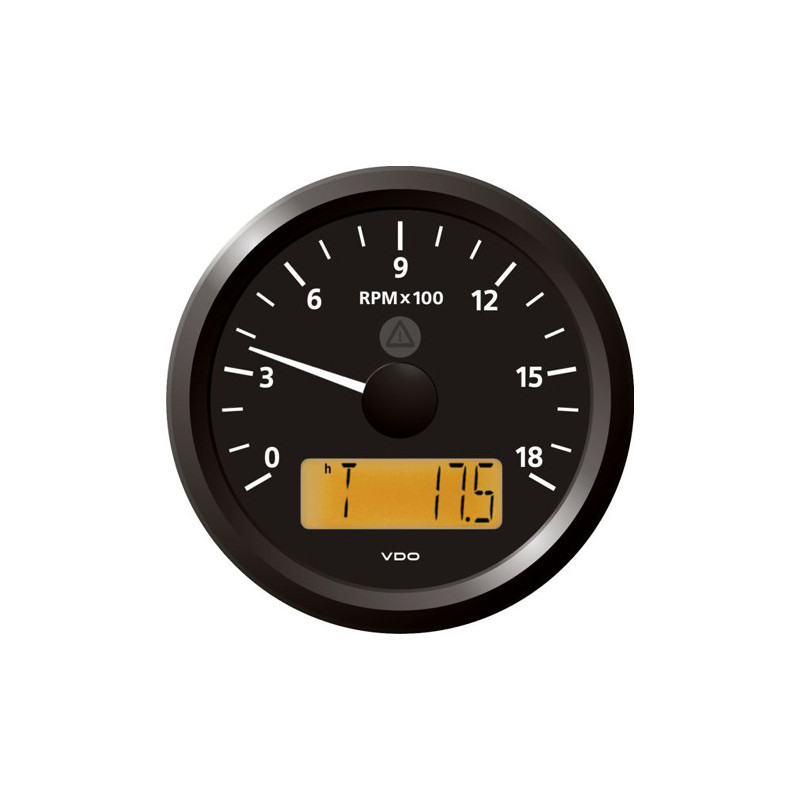

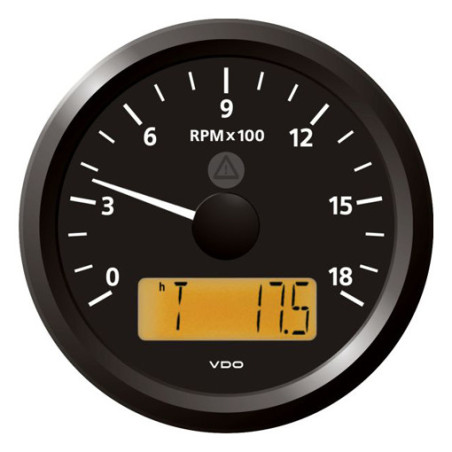

Veratron ViewLine Tachometer 1.800 RPM Black 85mm
€190.87
(tax incl.)
€157.74 tax excl.
Part-number:
Veratron A2C59512350
- Colour: Black
- Panel hole diameter: 85 mm - 3 3/8"
- Range: 0 to 1.800 RPM
- Lens: Double
- Retail package 1 Tachometer
- Successor of N02-012-142 (143)
Logistical information:
- HS Code: 90291010
- Ean Code: 7640178729360
- Weight: 0.59kg
Description ViewLine Multifunction tachometer:
Veratron ViewLine A2C59512350 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm - 3 2/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Analog RPM measurement range: | 0 to 1.800 RPM |
| Display functionality: | Engine hours counter Voltmeter Clock |
| Sensor signal input tachometer: | Alternator terminal: W Ignition terminal: 1 Outboard engine: Lightning coil NMEA 0183 |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 & 14 pins MQS connector |
Power supply:
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 240° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Standard |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59512350 Multifunction Tachometer
- Spinlock nut
- Bezel triangle black (Interchangeable)
- Adapter cable with 8 & 14 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron RPM sender not included
A2C59512350
Data sheet
- Tacho Measurement range
- 0 - 1.800 RPM
- Warning light
- Red LED Via plus and min
- Operating voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine monitoring
- Signal analogue
- Tacho impulse signal
- Serie
- VDO Marine OceanLine
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analog
- Installation dimension
- 85 mm - 3 3/8 Inch
- Functionality
- Tachometers multifunction
- Bezel Interchangeable
- Yes - Clip-on
- Bezel model
- Black triangle
- Communication
- Analog
- Category
- Tachometers
- Article status
- Orderable
Veratron A2C59512350
- Colour: Black
- Panel hole diameter: 85 mm - 3 3/8"
- Range: 0 to 1.800 RPM
- Lens: Double
- Retail package 1 Tachometer
- Successor of N02-012-142 (143)
