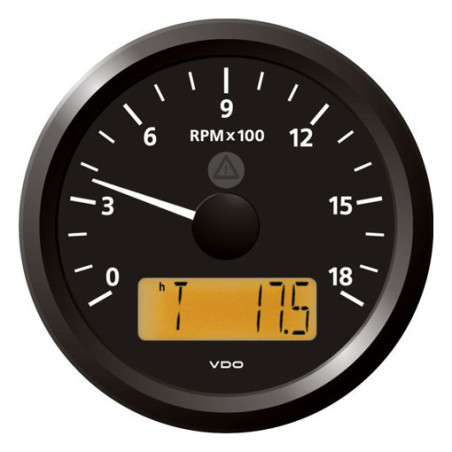

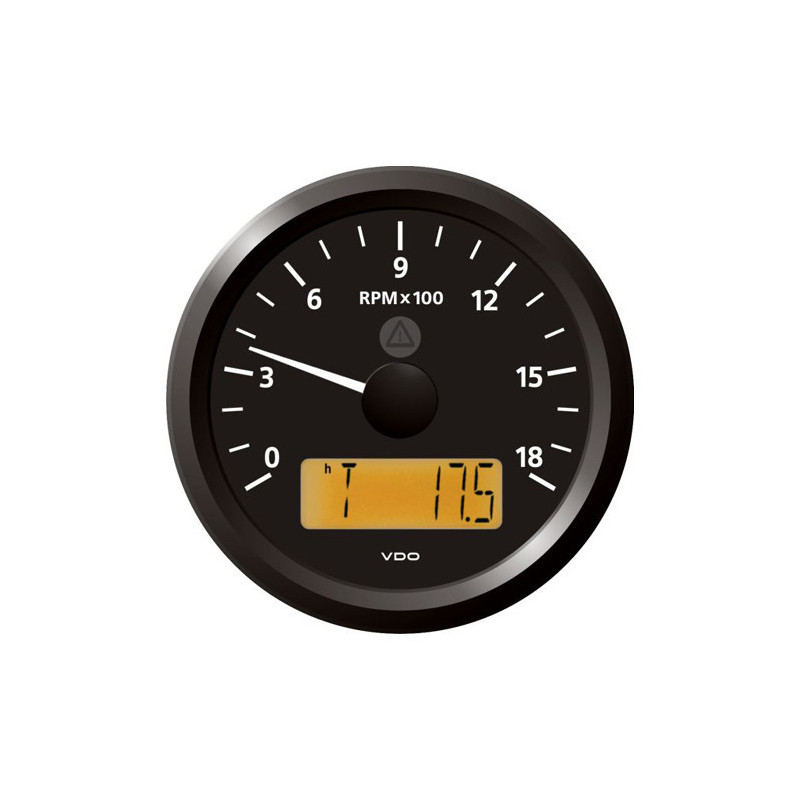

Veratron ViewLine Tachometer 1.800 RPM Black 85mm
€190.87
(tax incl.)
€157.74 (VAT Excl.)
Part-number:
Veratron A2C59512350
- Color: Black
- Panel hole diameter: 85 mm - 3 3/8"
- Measuring range: 0 to 1,800 RPM
- Front: Double glazing
- Retail packaging 1 Tachometer
- Successor to N02-012-142 (143)
Logistical information:
- HS Code: 90291010
- Ean Code: 7640178729360
- Weight: 0.59kg
Functional description ViewLine Multifunction Tachometer:
The Veratron ViewLine tachometers with LC-Display can be programmed via the supplied push button or via the Veratron viewline software. When a GPS speed signal is used, the tachometer with LC-Display does not need to be programmed.
Veratron ViewLine A2C59512350 Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm 3 2/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Rpm measuring range: | 0 to 1,800 RPM |
| Display Features: | Operating hours counter Voltmeter Clock |
| Input signal multifunction tachometer: | Alternator connection: W Ignition connection: 1 Outboard Motor: Ignition Coil NMEA 0183 |
| Suitable sensors: | Hall sensor (no open collector) Induction sensor Square wave sensor (no open collector) |
| Measurement accuracy: | < 2.5 % of the full scale |
| Connection: | Hirschmann 8 & 14 pin MQS connector |
Power supply:
| Supply voltage: | 8 to 32 Volts DC |
| Power consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 240° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Standard |
| Front glass type: | Single - Anti-Glare |
| Standard front ring: | Triangle black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59512350 Multifunction Tachometer
- Cables with Hirschmann connector 8 & 14-pin
- Front ring triangle black (Interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron speed sensor
- Includes 2 Push Buttons 13.6 mm IP67 A2C59512684
A2C59512350
Data sheet
- Speed Measuring range
- 0 - 1,800 RPM
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Tacho impulse signal
- Series
- VDO Marine OceanLine
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 85 mm - 3 3/8 Inch
- Functionality
- Tachometers multifunction
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Tachometers
- Article status
- Available to order
Specific References
- EAN13
- 7640178729360
- MPN
- A2C59512350
