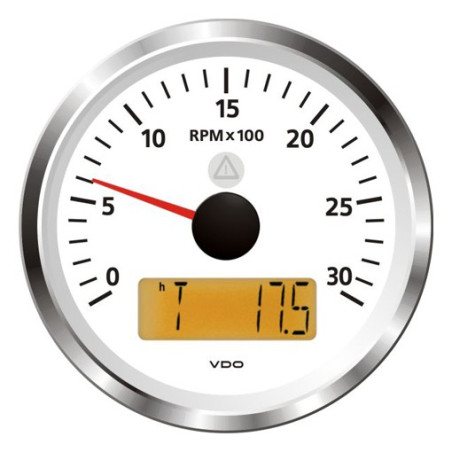

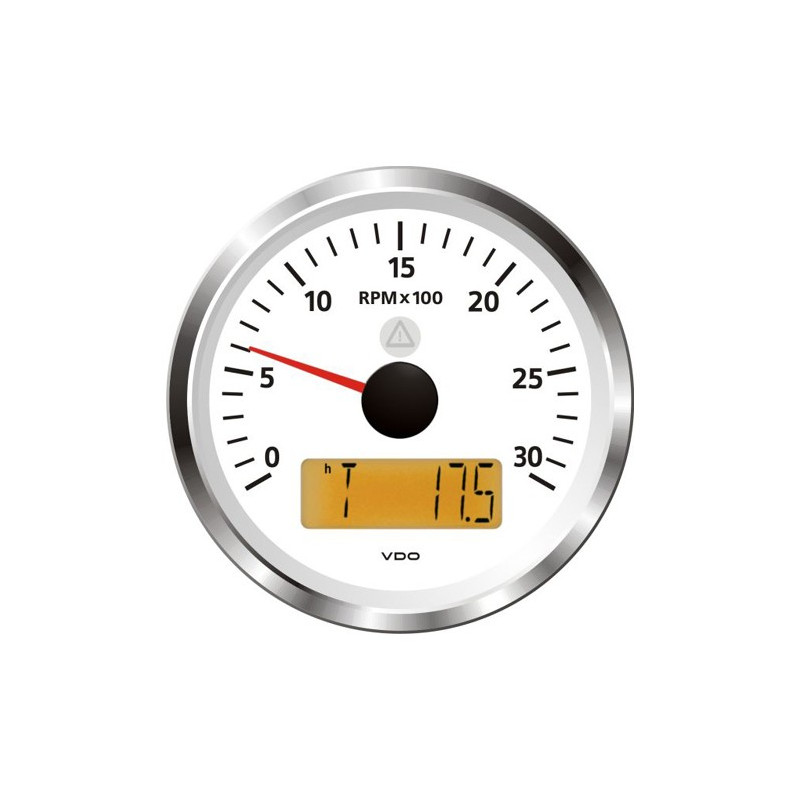

Veratron ViewLine Tachometer 3,000 RPM White 85mm

Part-number:
Veratron A2C59512359
  • Color: White
  • Panel hole diameter: 85 mm - 3 3/8"
  • Measuring range: 0 to 3,000 RPM
  • Front: Single glazed
  • Retail packaging 1 Tachometer
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description ViewLine Multifunction Tachometer:

Veratron ViewLine A2C59512359 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter:85 mm - 3 3/8 Inch and 93 mm 3 2/3 Inch
Installation depth:50 mm
Panel thickness with spinlock nut:0.5mm - 20mm
Panel thickness with bracket mounting:2mm - 15mm (Optional)
Flushmount mounting:Optional kit A2C59510864

Functional:

Rpm measuring range:0 to 3,000 RPM
Display Features:Operating hours counter
Voltmeter
Clock
Input signal multifunction tachometer:Alternator connection: W
Ignition connection: 1
Outboard Motor: Ignition Coil
NMEA 0183
Suitable sensors:Hall sensor (no open collector)
Induction sensor
Square wave sensor (no open collector)
Measurement accuracy: < 2.5 % of the full scale
Connection:Hirschmann 8 & 14 pin MQS connector

Power supply:

Supply voltage:8 to 32 Volts DC
Power consumption:< 175 mA including warning LED
Reverse polarity protection:Yes - 1 minutes
Short-circuit resistance:Yes - 1 minute

Scale & pointer:

Graduation:240°
Scale color:White
Scale lighting:Amber LED backlight 605nm
Pointer:Red with LED lighting
Alarm LED:Red (632nm)
Programming:Veratron USB software kit

Version:

Model:Veratron ViewLine Standard
Front glass type:Single - Anti-Glare
Standard front ring:Triangle chrome (Interchangeable)

Degree of protection and certification:

Front protection class:IP67 (IEC 60529)
Back protection classIP52
Relative humidity:Maximum 95%
Operating Temperature:-30°C to +70°C (Front ring chrome)
CE Certification:Yes
DNV GL Certification:Yes
Vibration test25G - 6ms - 1Hz
Shock test:100G - 11ms
Drop test:1 Meter - 3x
Fire safety:UL94-VD

Retail packaging:

  • Veratron ViewLine White A2C59512359 Multifunction Tachometer
  • Cables with Hirschmann connector 8 & 14-pin
  • Front ring triangle chrome (Interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron speed sensor
  • Includes 2 Push Buttons 13.6 mm IP67 A2C59512684
A2C59512359

Data sheet

Speed Measuring range
0 - 3,000 RPM
Warning indication
Red LED Via plus and minus
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Tacho impulse signal
Series
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
White
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
85 mm - 3 3/8 Inch
Functionality
Tachometers multifunction
Front ring interchangeable
Yes - Clip-on
Front ring model
Chrome triangle
Communication
Analogue
Category
Tachometers
Article status
Discontinued product

Specific References

MPN
A2C59512359
